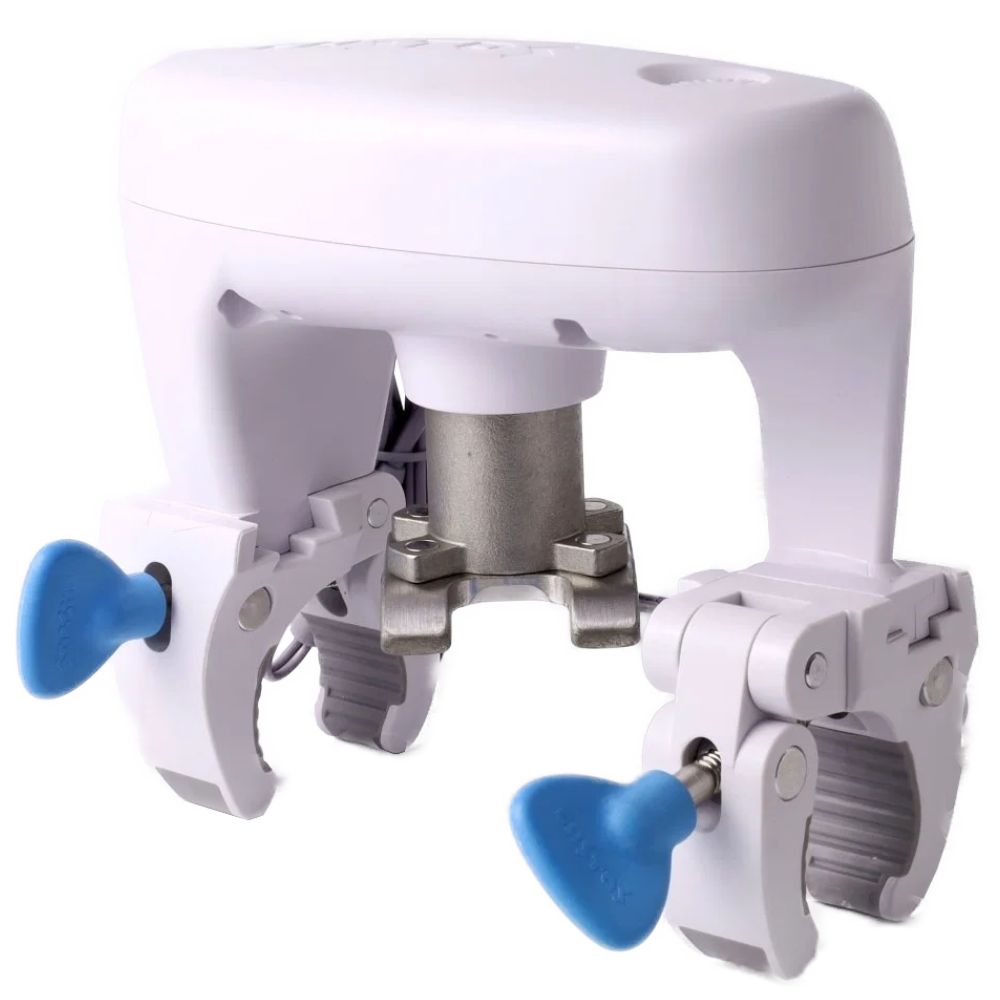

Ball valve controller BVSLWE01 AS LoRaWAN
LoRaWAN ball valve controller for remote water shut-off and leak protection.
The Aqua-Scope BVSLWE01 retrofits an existing manual ball valve and enables local or remote open/close control. It also supports a directly connected wired water leak sensor.
- Retrofits existing ball valves
- LoRaWAN Class C control
- Up to 7 Nm motor torque
- Automatic weekly valve exercise
- Wired leak sensor connection
LoRaWAN ball valve controller for automatic water shut-off
The Ball valve controller BVSLWE01 Aqua-Scope LoRaWAN retrofits an existing manual ball valve with remote and automatic control. It can be used for water shut-off, leak protection and building automation without replacing the existing valve.
The controller communicates through LoRaWAN Class C and can be operated remotely through a compatible LoRaWAN gateway and monitoring platform. Local operation is also available through the integrated touch button.
Automatic valve control and leak protection
The BVSLWE01 uses an adjustable clamping mechanism for installation on existing ball valves. It is designed for pipe sizes from approximately 0.5 to 1.5 inches, with optional larger clamps available for installations up to 2 inches.
The motor measures the valve rotation angle and detects the end positions during calibration. Automatic weekly valve exercise moves the valve approximately 1/8 turn to help reduce deposits and keep the valve mechanism operational.
An external wired water leak sensor can be connected directly to the controller. When water is detected, the system can be used as a local leak protection solution in addition to LoRaWAN-based monitoring and control.
See the official Aqua-Scope BVSLWE01 documentation for installation, calibration and LoRaWAN configuration guidance.
Product benefits
- Retrofits existing manual ball valves
- Remote open and close control through LoRaWAN
- LoRaWAN Class C for responsive remote control
- Adjustable clamps for approximately 0.5 to 1.5 inch pipes
- Adaptive motor torque up to 7 Nm
- Automatic weekly valve exercise
- Optional wired water leak detection
- Local button, LED indicator and buzzer
Technical specifications
| Product | Ball valve controller BVSLWE01 Aqua-Scope LoRaWAN |
|---|---|
| Manufacturer | Aqua-Scope |
| Model | BVSLWE01 |
| Application | Retrofit control of existing ball valves |
| Standard pipe size | Approximately 0.5 to 1.5 inches |
| Maximum motor torque | 7 Nm |
| Communication | LoRaWAN Class C |
| Activation | OTAA |
| LoRaWAN version | 1.0.2 |
| EU frequencies | 868.42 MHz and 869.85 MHz |
| Leak sensor connection | Wired water leak sensor input |
| Local indication | 3-colour LED and buzzer up to 85 dB |
| Power supply | 12 V DC / 1 A |
| Standby consumption | Approximately 0.12 W |
| Operating temperature | -20 to +60 °C |
| Dimensions | 148 × 96 × 133 mm |
| Weight | 603 g |
Applications
- Automatic water shut-off
- Leak protection systems
- Commercial and residential buildings
- Technical rooms and water installations
- Remote valve control and building automation
Installation and connection
The controller clamps onto an existing ball valve without requiring replacement of the valve. After installation, the device performs a calibration procedure to determine the valve end positions. Connect the supplied 12 V power supply and, if required, the wired water leak sensor. A compatible LoRaWAN gateway and network server are required for remote control and monitoring.
