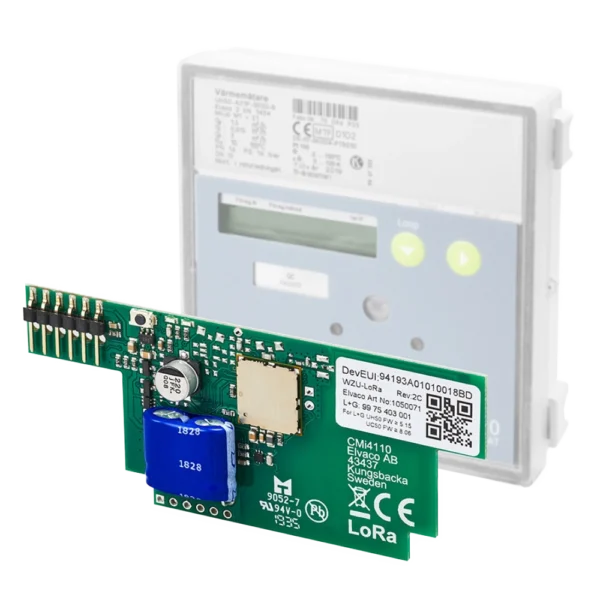

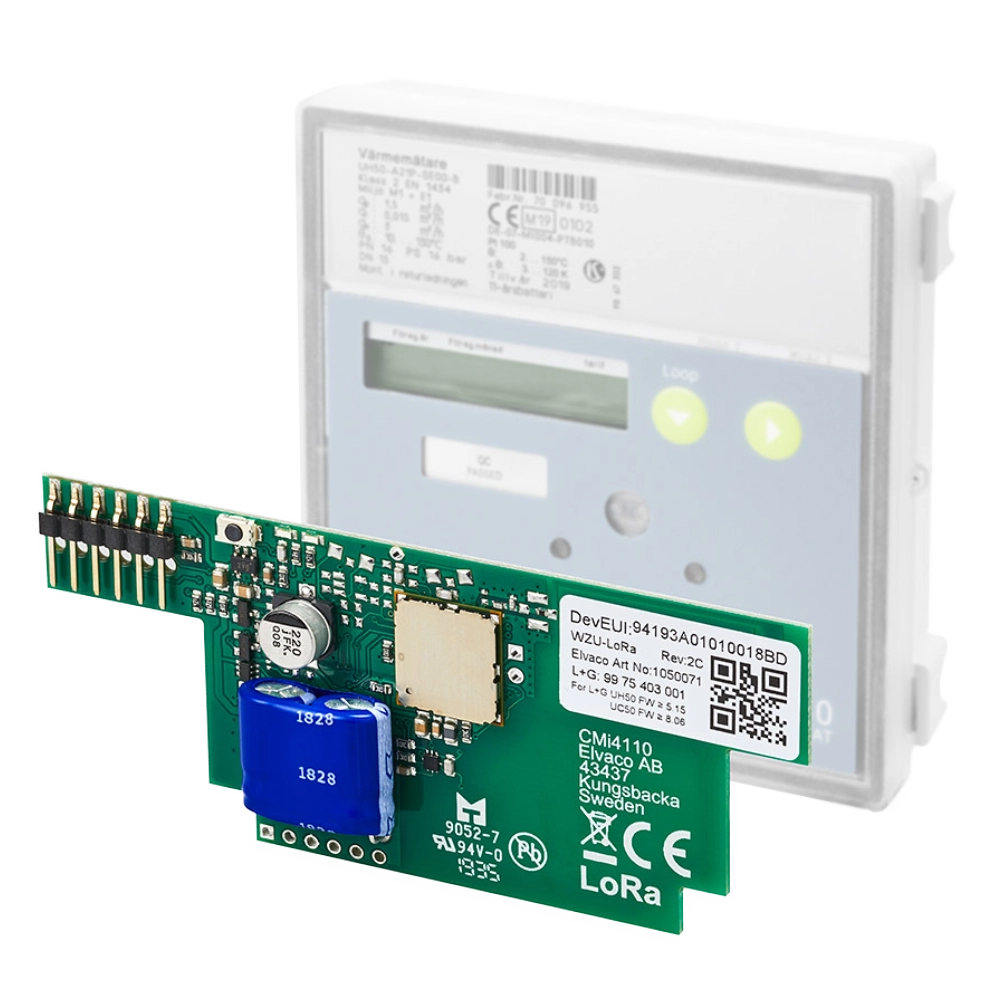

Comm. module CMi4110 ELV Module for Landis + Gyr UH50/UC50 LoRaWAN
Integrated LoRaWAN communication module for Landis + Gyr UH50 and UC50 meters.
The Elvaco CMi4110 installs inside the meter and enables remote meter reading through an 868 MHz LoRaWAN network. Configuration is performed through NFC using the Elvaco OTC app.
- For Landis + Gyr UH50/UC50
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC and downlink configuration
- Retrofit installation
LoRaWAN communication module for Landis + Gyr UH50/UC50
The CMi4110 ELVaco Module for Landis + Gyr UH50/UC50 LoRaWAN is an integrated meter communication module designed to add wireless LoRaWAN connectivity to compatible Landis + Gyr UH50 and UC50 meters. It can be factory-installed or retrofitted into an existing meter and forwards meter data to a receiving server through a LoRaWAN network.
The module communicates on 868 MHz and can transmit data through a compatible LoRaWAN gateway to an energy management, billing or meter-reading platform.
Integrated LoRaWAN meter communication
The CMi4110 is installed in module slot 2 of a Landis + Gyr UH50/UC50. It supports LoRaWAN Class A communication with OTAA or ABP activation and configurable data rates from DR0 to DR5.
Configuration is performed through NFC using the Elvaco OTC app or remotely through LoRaWAN downlink. Status and error LEDs provide simple local diagnostics, while the module can be powered from the meter's internal D-cell battery or a compatible external power supply.
See the official Elvaco CMi4110 product information and documentation for detailed specifications, antenna options and installation instructions.
Product benefits
- Integrated LoRaWAN communication for Landis + Gyr UH50/UC50
- Suitable for retrofit installation
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC configuration through Elvaco OTC
- Remote configuration through LoRaWAN downlink
- Internal or external antenna versions available
- Long battery life of at least 11 years under specified conditions
Technical specifications
| Product | CMi4110 ELVaco Module for Landis + Gyr UH50/UC50 LoRaWAN |
|---|---|
| Manufacturer | Elvaco |
| Model | CMi4110 |
| Compatible meters | Landis + Gyr UH50 / UC50 |
| Communication | LoRaWAN |
| Frequency | 868 MHz |
| LoRaWAN class | Class A, bi-directional |
| LoRaWAN version | 1.0.2 |
| Activation | OTAA or ABP |
| Data rate | DR0–DR5 |
| Configuration | NFC via Elvaco OTC app or LoRaWAN downlink |
| Supply | Internal meter D-cell battery or compatible PSU |
| Nominal voltage | 3.0–5.0 VDC |
| Operating temperature | +5 to +55 °C |
| Protection rating | IP54 |
| Dimensions | 80 × 32 × 23 mm |
| Weight | 35 g |
| Installation | Landis + Gyr UH50/UC50 module slot 2 |
Applications
- Remote heat meter reading
- District heating metering
- Building energy monitoring
- Property and tenant sub-metering
- Retrofit LoRaWAN communication for existing UH50/UC50 meters
Installation and connection
Install the CMi4110 in module slot 2 of a compatible Landis + Gyr UH50/UC50 meter and configure the device through NFC using the Elvaco OTC app. A compatible LoRaWAN gateway, network server and receiving platform are required for remote meter reading.
