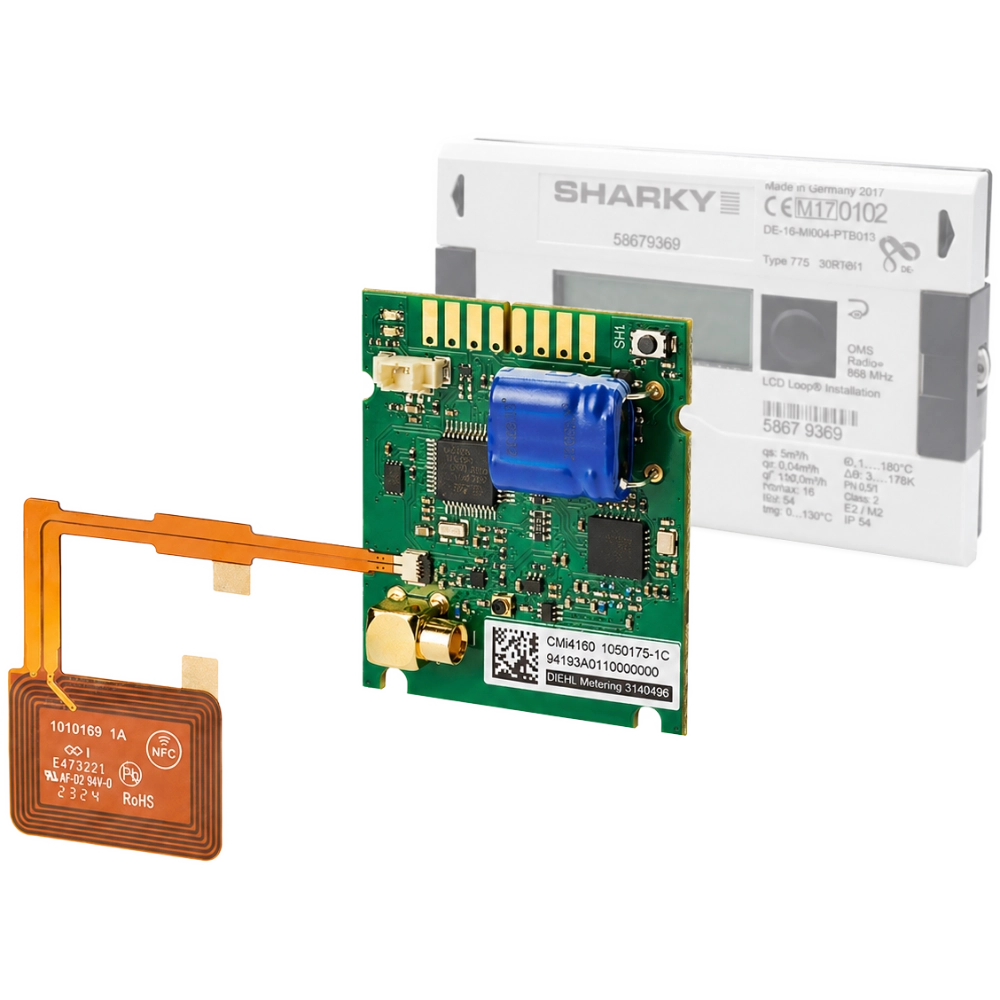

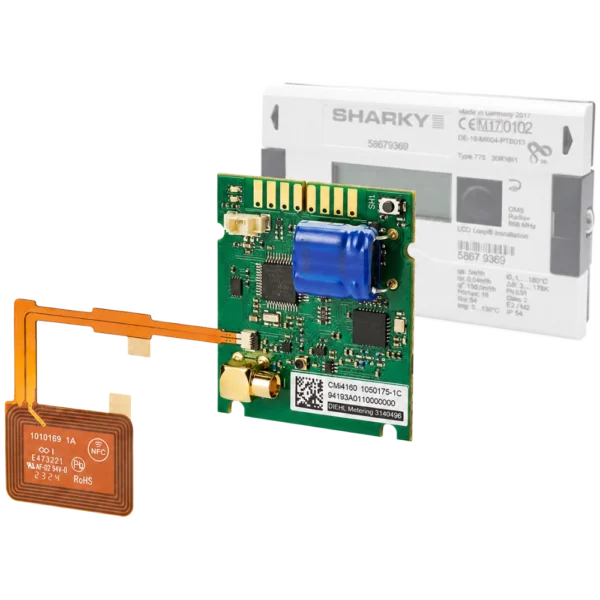

Comm. module CMi4160 ELV Module for Diehl Metering SHARKY 775 LoRaWAN
Integrated LoRaWAN communication module for Diehl Metering SHARKY 775 heat meters.
The Elvaco CMi4160 enables remote meter reading through an 868 MHz LoRaWAN network and can be configured through NFC using the Elvaco OTC app.
- For Diehl SHARKY 775
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC and downlink configuration
- Up to 11 years battery life
LoRaWAN communication module for Diehl Metering SHARKY 775
The CMi4160 ELV Module for Diehl Metering SHARKY 775 LoRaWAN is an integrated Elvaco meter connectivity module designed to add wireless LoRaWAN communication to compatible Diehl Metering SHARKY 775 heat meters. The module is installed directly inside the meter and transfers meter data to a receiving system through a LoRaWAN network.
The CMi4160 operates on 868 MHz and can transmit meter data through a compatible LoRaWAN gateway to an energy management, billing or remote meter-reading platform.
Integrated LoRaWAN meter communication
The module is installed in module slot 2 of a compatible Diehl SHARKY 775 and can be used both in new installations and as a retrofit for already deployed meters. LoRaWAN Class A communication supports OTAA or ABP activation and data rates from DR0 to DR5.
Configuration is performed through NFC using the Elvaco OTC app or remotely through LoRaWAN downlink. The energy-efficient EcoMode is designed to provide up to 11 years of battery operation under specified conditions.
See the official Elvaco CMi4160 product information and documentation for compatibility, configuration and installation details.
Product benefits
- Integrated LoRaWAN communication for Diehl SHARKY 775
- Suitable for retrofit installation
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC configuration through Elvaco OTC
- Remote configuration via LoRaWAN downlink
- Internal or external antenna versions available
- Up to 11 years battery life under specified conditions
Technical specifications
| Product | CMi4160 ELV Module for Diehl Metering SHARKY 775 LoRaWAN |
|---|---|
| Manufacturer | Elvaco |
| Model | CMi4160 |
| Compatible meter | Diehl Metering SHARKY 775 |
| Communication | LoRaWAN |
| Frequency | 868 MHz |
| LoRaWAN class | Class A, bi-directional |
| LoRaWAN version | 1.0.2 |
| Activation | OTAA or ABP |
| Data rate | DR0–DR5 |
| Configuration | NFC via Elvaco OTC app or LoRaWAN downlink |
| Supply | Battery, 3.0 VDC nominal |
| Battery life | Up to 11 years under specified conditions |
| Dimensions | 63 × 50 × 15 mm |
| Weight | 19 g |
| Operating temperature | +5 to +55 °C |
| Installation | Module slot 2 in compatible Diehl SHARKY 775 |
Applications
- Remote heat meter reading
- District heating metering
- Building energy monitoring
- Property and tenant sub-metering
- Retrofit LoRaWAN communication for existing SHARKY 775 meters
Installation and connection
Install the CMi4160 in module slot 2 of a compatible Diehl Metering SHARKY 775, connect the meter interface cable and battery pack, and configure the module using NFC with the Elvaco OTC app. A compatible LoRaWAN gateway, network server and receiving platform are required for remote meter reading.
