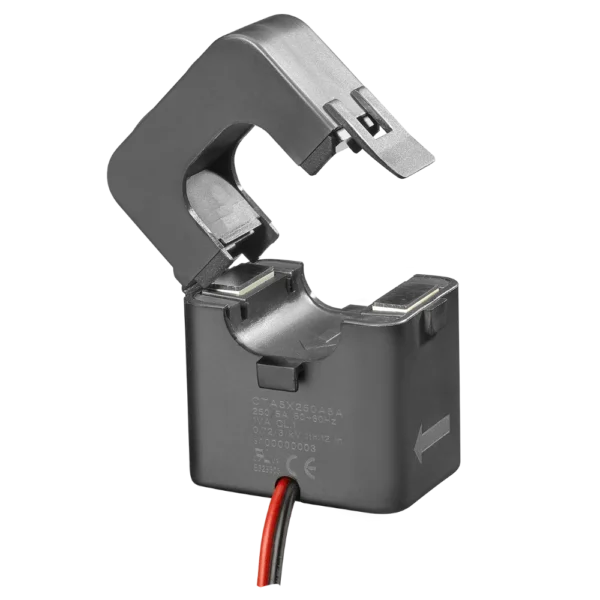

Current transformer CG Split core, 100A/5A Ø24mm
Carlo Gavazzi split-core current transformer for AC current measurement up to 100 A.
The CTA5X100A5A provides a standard 5 A secondary output and a 24 mm conductor opening, making it suitable for retrofit energy monitoring and electrical distribution panels.
- 100 A primary current
- 5 A secondary output
- 24 mm opening
- Accuracy class 3
- Split-core retrofit installation
Split-core current transformer for AC current measurement
The Current transformer CG Split core, 100A/5A Ø24mm is a Carlo Gavazzi split-core current transformer designed for AC current measurement in existing electrical installations. The split-core construction allows the transformer to be mounted around an installed conductor without disconnecting the cable, making it well suited to retrofit energy monitoring.
The transformer has a rated primary current of 100 A and provides a standard 5 A secondary output for connection to compatible energy meters, power analyzers and monitoring equipment.
100 A current measurement with split-core installation
The 24 mm conductor opening provides space for installation around suitable cables in switchboards and distribution panels. The split-core design simplifies installation compared with conventional solid-core current transformers.
The CTA5X100A5A has accuracy class 3 and is intended for general current measurement, load monitoring and energy management applications.
See the official Carlo Gavazzi CTA5X100A5A product information for detailed specifications and installation documentation.
Product benefits
- Split-core design for retrofit installation
- Rated primary current of 100 A
- Standard 5 A secondary output
- 24 mm conductor opening
- Accuracy class 3
- Suitable for existing electrical installations
- Compatible with measuring equipment with 5 A CT inputs
Technical specifications
| Product | Current transformer CG Split core, 100A/5A Ø24mm |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | CTA5X100A5A |
| Transformer type | Split-core current transformer |
| Rated primary current | 100 A |
| Secondary output | 5 A |
| Transformation ratio | 100/5 A |
| Hole diameter | 24 mm |
| Accuracy class | Class 3 |
| Application | AC current and energy measurement |
Applications
- Energy monitoring systems
- Electrical distribution boards
- Building energy management
- Industrial load monitoring
- Retrofit current measurement
Installation and connection
Open the split-core transformer and install it around the relevant phase conductor, observing the correct current direction and polarity. Connect the 5 A secondary circuit to compatible measuring equipment. Current-transformer secondary circuits should be installed and handled according to applicable electrical safety requirements by qualified personnel.
