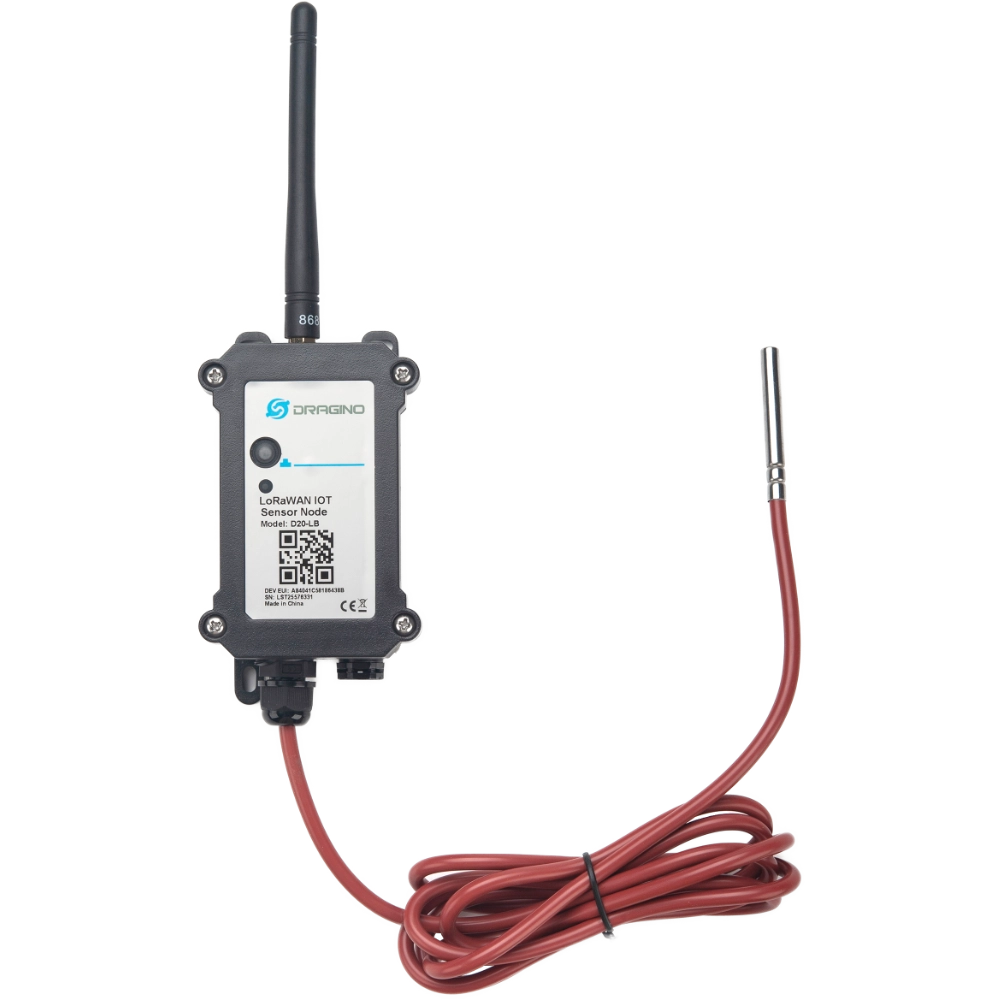

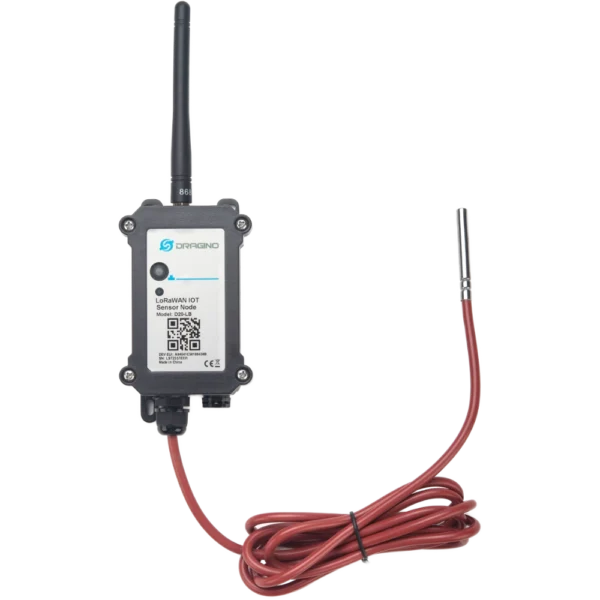

Room sensor D20-LB DRA Temperature sensor with external probe LoRaWAN
Battery-powered LoRaWAN temperature sensor with an external DS18B20 probe for remote monitoring.
The Dragino D20-LB measures from -55 to +125 °C and supports temperature alarms, data logging and Bluetooth configuration.
- External 2 m temperature probe
- -55 to +125 °C range
- LoRaWAN Class A
- 8500 mAh battery
- Temperature alarm and data logging
LoRaWAN temperature sensor with external probe
The D20-LB DRA Temperature sensor with external probe LoRaWAN is a battery-powered Dragino temperature sensor designed for remote temperature monitoring in IoT, building, refrigeration and industrial applications. It uses an external DS18B20 probe to measure temperature and sends the readings wirelessly through a LoRaWAN network.
The sensor can transmit measurement data through a compatible LoRaWAN gateway to an IoT or energy-monitoring platform. The D20-LB operates as a LoRaWAN Class A device and supports regional bands including EU868, US915, AS923, AU915 and others. :contentReference[oaicite:0]{index=0}
External probe for -55 to +125 °C measurement
The D20-LB uses one external Dallas DS18B20 temperature probe, supplied with a standard cable length of approximately 2 metres. The measurement range is -55 to +125 °C with an accuracy of ±0.5 °C under normal specified conditions. :contentReference[oaicite:1]{index=1}
Configurable temperature alarms can generate additional uplinks when defined thresholds are reached. The sensor also supports data logging so measurements can be stored when LoRaWAN coverage is unavailable and uploaded when the network connection is restored. :contentReference[oaicite:2]{index=2}
Configuration can be performed through Bluetooth 5.1, LoRaWAN downlinks and wireless OTA firmware updates. See the official Dragino D20-LB product information and documentation for setup instructions and LoRaWAN configuration details.
Product benefits
- External DS18B20 temperature probe
- Measurement range from -55 to +125 °C
- Typical specified accuracy of ±0.5 °C
- LoRaWAN Class A communication
- Configurable temperature alarms
- Data logging during temporary network outages
- Bluetooth 5.1 and LoRaWAN remote configuration
- Large 8500 mAh Li-SOCl2 battery
- Weather-resistant enclosure for demanding installations
Technical specifications
| Product | D20-LB DRA Temperature sensor with external probe LoRaWAN |
|---|---|
| Manufacturer | Dragino |
| Model | D20-LB |
| Sensor | 1 × external Dallas DS18B20 |
| Standard probe cable | Approx. 2 m |
| Measurement range | -55 to +125 °C |
| Temperature accuracy | ±0.5 °C, max. ±2.0 °C |
| LoRaWAN | Version 1.0.3, Class A |
| Frequency bands | EU868, EU433, US915, AU915, AS923, IN865, KR920, CN470 depending on version |
| Configuration | Bluetooth 5.1, LoRaWAN downlink and OTA firmware update |
| Battery | 8500 mAh Li-SOCl2 |
| Expected battery life | Up to approximately 5 years depending on settings and conditions |
| Device operating temperature | -40 to +85 °C |
| Enclosure | Weather-resistant, IP66 stated in product datasheet |
Applications
- Refrigeration and cold-room monitoring
- HVAC and building temperature monitoring
- Industrial process monitoring
- Water and pipe temperature monitoring
- Outdoor temperature monitoring
- Remote LoRaWAN alarm applications
Installation and connection
Mount the D20-LB enclosure in a suitable location and position the external temperature probe at the required measurement point. Register the device keys in the LoRaWAN network server and configure reporting intervals and alarm limits as required. A compatible LoRaWAN gateway and network server are required for remote data collection.
