Electrical meter EM111 CG Direct 1 Phase up to 32A Puls
Single-phase Carlo Gavazzi MID energy meter with direct measurement up to 32 A and static pulse output.
The EM111DINAV81XO1PFA is designed for compact sub-metering and pulse-based energy data collection in residential, commercial and building applications.
- Direct measurement up to 32 A
- 230 V single-phase
- Static pulse output
- MID certified PFA version
- DIN rail mounting
Single-phase direct energy meter with pulse output

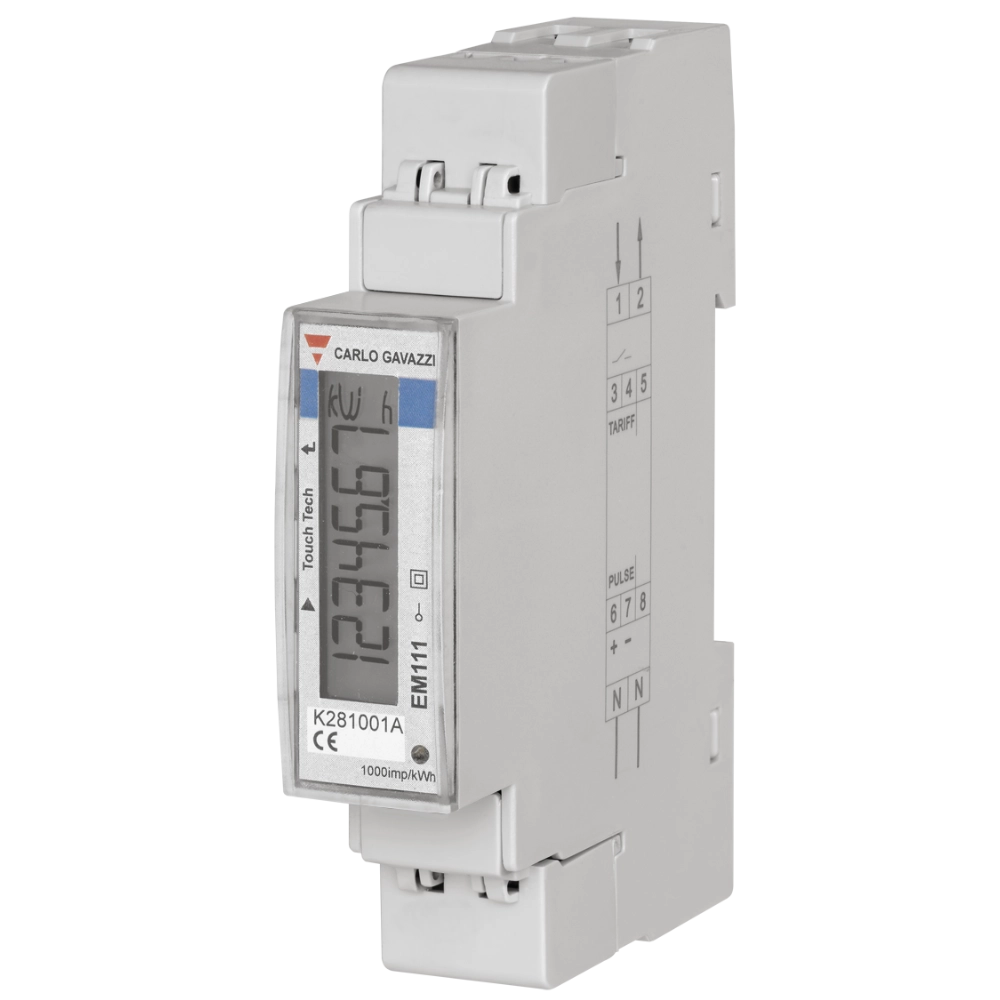

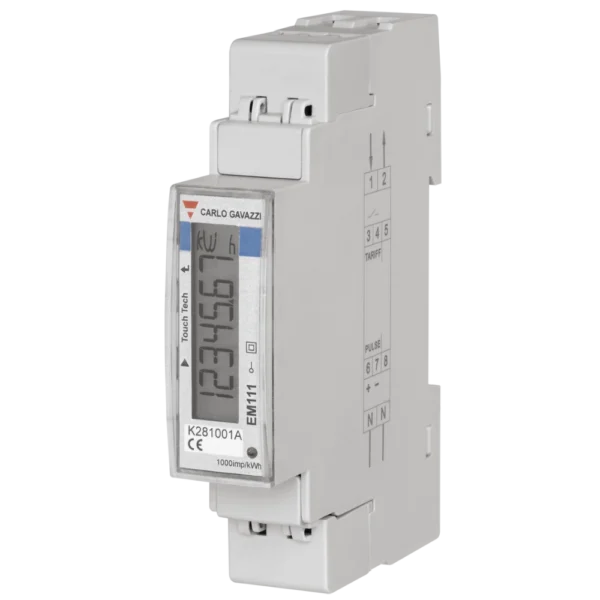

The EM111DINAV81XO1PFA EM111 CG Direct 1 Phase up to 32A Puls is a compact Carlo Gavazzi single-phase MID energy analyzer designed for direct measurement of electrical consumption without external current transformers. It is suitable for sub-metering, cost allocation and building energy monitoring applications up to 32 A.
This version provides a static pulse output proportional to measured active energy, allowing the meter to be connected to pulse counters, data loggers, building management systems and other compatible monitoring equipment.
Direct single-phase energy measurement
The EM111 connects directly to a 230 V single-phase, two-wire electrical system. The AV8 version has a 5(45) A current input and is specified for direct measurement applications up to 32 A.
The PFA version is MID certified for total active energy, meaning the certified totalizer covers the sum of imported and exported active energy. The meter is self-powered and includes a backlit LCD display for local readings.
See the official Carlo Gavazzi EM111DINAV81XO1PFA product information for detailed specifications, certification information and installation guidance.
Product benefits
- Direct single-phase measurement up to 32 A
- No external current transformer required
- Static pulse output for energy data collection
- MID certified PFA version
- 230 V single-phase, 2-wire connection
- 5(45) A current input
- Compact DIN rail installation
- Backlit LCD display
Technical specifications
| Product | EM111DINAV81XO1PFA EM111 CG Direct 1 Phase up to 32A Puls |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | EM111DINAV81XO1PFA |
| Meter type | Single-phase MID energy analyzer |
| System | 1-phase, 2-wire |
| Nominal voltage | 230 V L-N |
| Frequency | 50 Hz |
| Current input | 5 (45) A |
| Direct measurement | Up to 32 A |
| Output | Static pulse output |
| MID version | PFA – certified total active energy |
| Active energy accuracy | Class 1 according to EN 62053-21 / Class B according to EN 50470-3 |
| Display | Backlit LCD |
| Front protection | IP51 |
| Power supply | Self-powered |
| Mounting | DIN rail |
Applications
- Single-phase energy sub-metering
- Building energy management
- Commercial electrical installations
- Individual equipment and load monitoring
- Pulse-based energy data collection
Installation and connection
Mount the EM111 on a DIN rail and connect phase and neutral according to the installation diagram. Connect the static pulse output to compatible pulse-counting or monitoring equipment where remote energy collection is required. Installation should be carried out by qualified personnel according to applicable electrical safety requirements.
