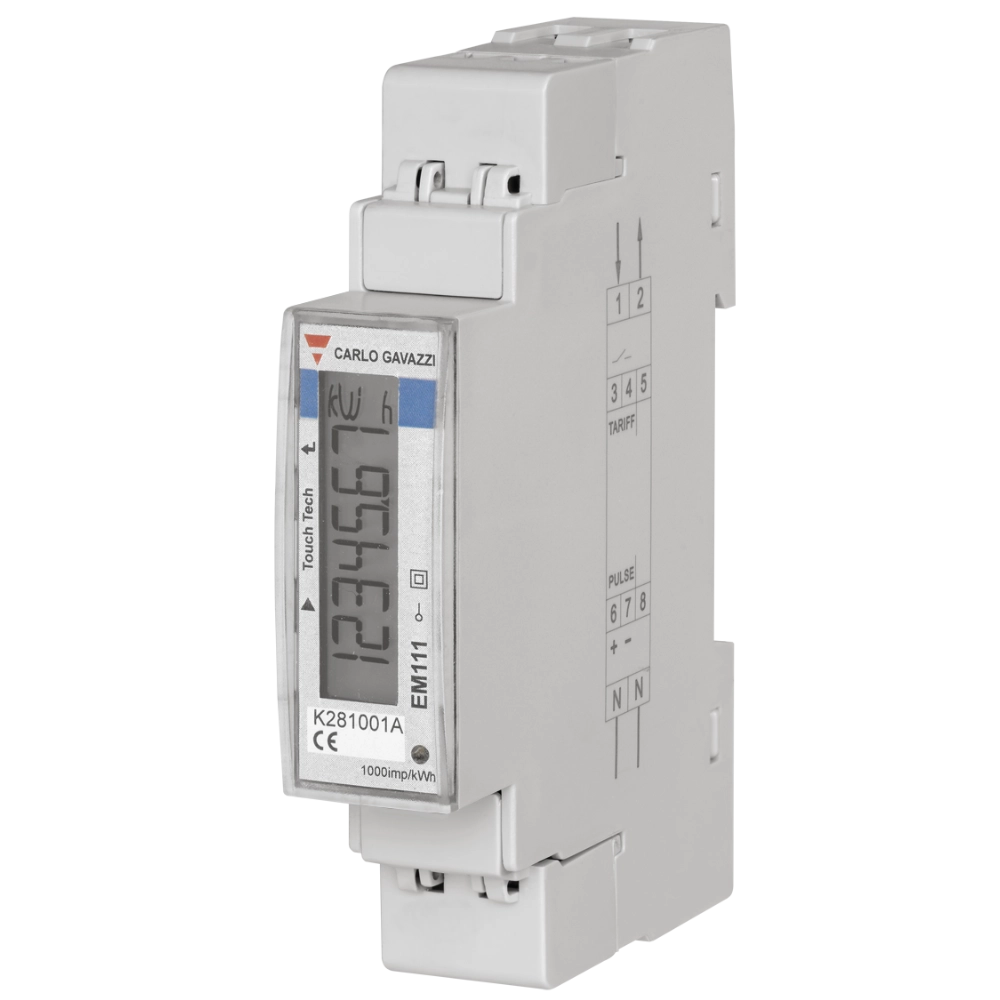

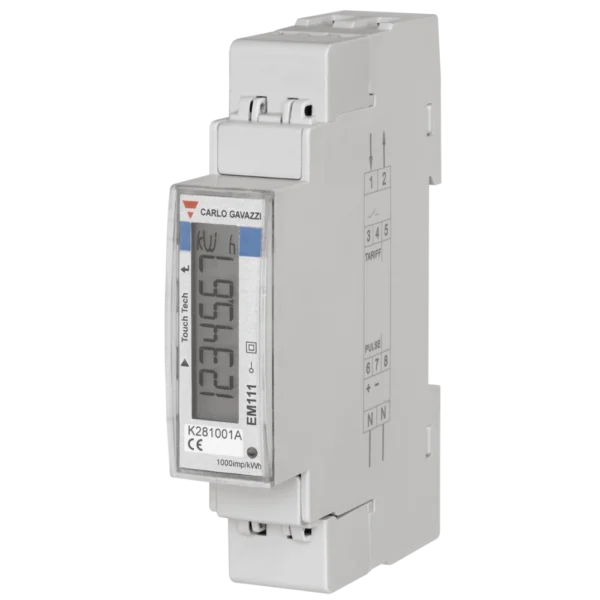

Electrical meter EM111 CG Direct 1 Phase up to 32A Modbus
Single-phase Carlo Gavazzi MID energy meter with direct measurement up to 32 A and RS485 Modbus RTU.
The EM111DINAV81XS1PFB is designed for compact energy sub-metering and direct integration with building management and monitoring systems.
- Direct measurement up to 32 A
- 230 V single-phase
- RS485 Modbus RTU
- MID certified
- 1-DIN-module mounting
Single-phase direct energy meter with Modbus RTU
The EM111DINAV81XS1PFB EM111 CG Direct 1 Phase up to 32A Modbus is a compact Carlo Gavazzi single-phase MID energy analyzer for direct measurement of electrical consumption without external current transformers. It is designed for applications up to 32 A and is suitable for sub-metering, building energy monitoring and electrical load analysis.
The meter communicates through RS485 Modbus RTU, allowing energy and electrical measurements to be integrated with building management systems, PLCs, SCADA platforms and energy monitoring software.
Direct single-phase energy measurement
The EM111 connects directly to a 230 V single-phase, two-wire electrical system. The AV8 version supports direct measurement up to 32 A, with a current input rating of 5(45) A.
The meter measures imported and exported active and reactive energy together with electrical variables including voltage, current, active power, reactive power, power factor and frequency. The PFB version is MID certified and can be used where approved fiscal energy metering is required.
See the official Carlo Gavazzi EM111DINAV81XS1PFB product information for detailed specifications, Modbus documentation and installation guidance.
Product benefits
- Direct single-phase measurement up to 32 A
- No external current transformer required
- RS485 Modbus RTU communication
- MID certified PFB version
- Measures consumption and generation
- Compact 1-DIN-module design
- Backlit LCD display
- Suitable for sub-metering and energy management
Technical specifications
| Product | EM111DINAV81XS1PFB EM111 CG Direct 1 Phase up to 32A Modbus |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | EM111DINAV81XS1PFB |
| Meter type | Single-phase MID energy analyzer |
| System | 1-phase, 2-wire |
| Nominal voltage | 230 V L-N |
| Frequency | 50 Hz |
| Current input | 5 (45) A |
| Direct measurement | Up to 32 A |
| Communication | RS485 Modbus RTU |
| Energy measurement | Consumption and generation |
| Active energy accuracy | Class 1 according to EN 62053-21 / Class B according to EN 50470-3 |
| Display | Backlit LCD |
| Front protection | IP51 |
| Power supply | Self-powered |
| Mounting | DIN rail, 1 module |
| MID approval | Yes |
Applications
- Single-phase energy sub-metering
- Building energy management
- Commercial electrical installations
- Individual equipment and load monitoring
- Modbus-based energy data collection
Installation and connection
Mount the EM111 on a DIN rail and connect the phase and neutral conductors directly through the meter according to the installation diagram. Connect the RS485 interface to the Modbus RTU network for remote data collection. Installation should be carried out by qualified personnel according to applicable electrical safety requirements.
