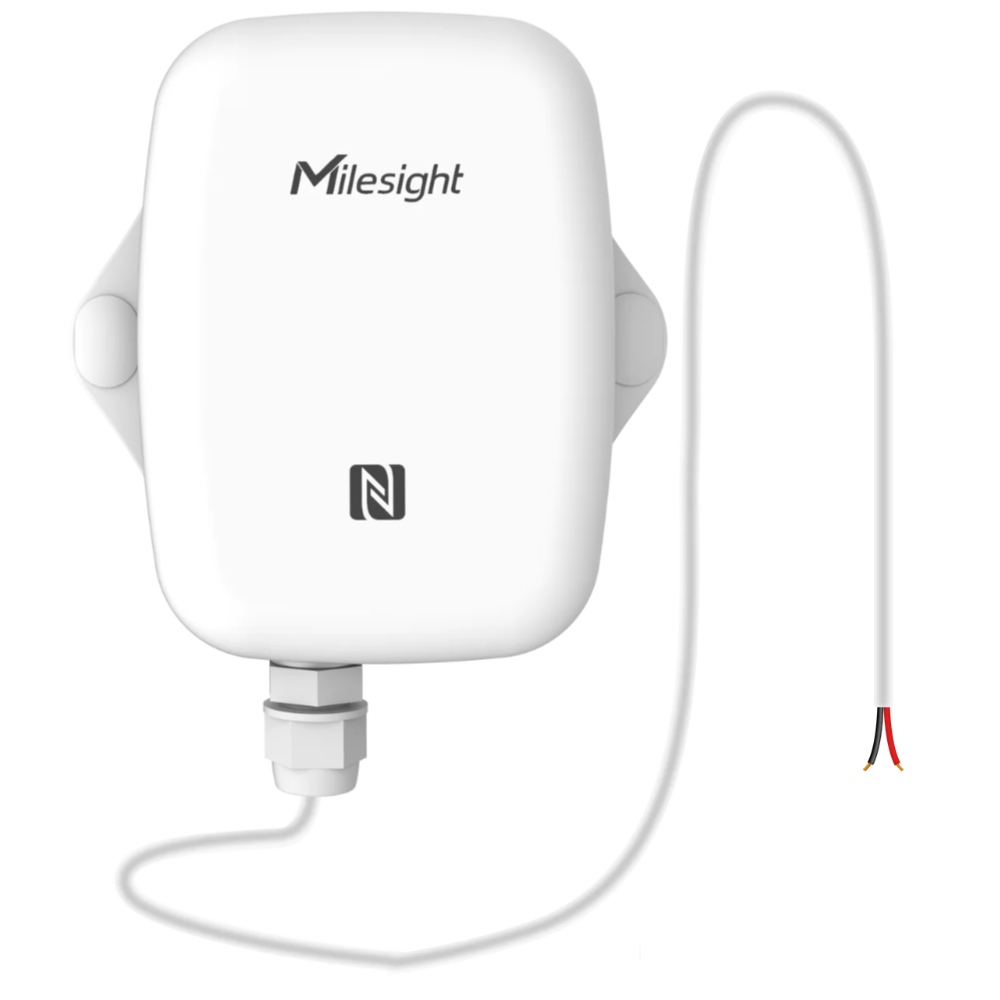

Comm. module EM300-DI MS Pulse transmitter LoRaWAN
LoRaWAN pulse transmitter for remote reading of meters and digital inputs.
The Milesight EM300-DI converts pulse or dry-contact signals into LoRaWAN data, making it suitable for water, electricity, gas and heat meters.
- Digital pulse input
- LoRaWAN Class A
- NFC configuration
- Local data storage
- IP67 enclosure
LoRaWAN pulse transmitter for meter data collection
The Comm. module EM300-DI MS Pulse transmitter LoRaWAN is a compact wireless communication module for converting pulse outputs from meters and counters into LoRaWAN data. It is suitable for remote reading of water meters, electricity meters, gas meters, heat meters and other devices with dry-contact or pulse outputs.
Pulse data is transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform for remote visualisation, consumption tracking and historical analysis.
Pulse input and digital monitoring
The EM300-DI provides a digital input that can be used for pulse counting or status monitoring. This allows existing meters with pulse outputs to be integrated into a LoRaWAN infrastructure without replacing the meter itself.
The module can be configured through NFC using the Milesight ToolBox app and supports remote configuration through LoRaWAN downlink commands. Historical records can be stored locally and retransmitted after temporary network interruptions.
See the official Milesight EM300-DI product information and documentation for detailed specifications and configuration guidance.
Product benefits
- Converts pulse outputs to LoRaWAN data
- Suitable for water, electricity, gas and heat meters
- Digital input for pulse counting or status monitoring
- Wireless LoRaWAN communication
- NFC configuration with Milesight ToolBox
- Remote configuration by LoRaWAN downlink
- Local data storage and retransmission
- Compact battery-powered design
Technical specifications
| Product | Comm. module EM300-DI MS Pulse transmitter LoRaWAN |
|---|---|
| Manufacturer | Milesight |
| Input | 1 × digital input |
| Input function | Pulse counting or digital status monitoring |
| Communication | LoRaWAN Class A |
| Activation | OTAA or ABP |
| Configuration | NFC via Milesight ToolBox and LoRaWAN downlink |
| Power supply | Internal replaceable battery |
| Protection rating | IP67 |
| Typical use | Pulse meters and dry-contact devices |
Applications
- Water meter pulse collection
- Electricity meter pulse collection
- Gas and heat meter reading
- Consumption and utility monitoring
- Digital status monitoring
Installation and connection
Connect the meter or dry-contact output to the digital input and configure the pulse parameters in Milesight ToolBox. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote data collection and visualisation.
