Electrical meter EM530 RG CG Indirect 3 Phase to Rogowski coils Modbus
Three-phase Carlo Gavazzi energy analyzer for direct connection of Rogowski coils and RS485 Modbus RTU communication.
The EM530 RG supports indirect measurement with 100 mV/kA Rogowski coils without an external integrator and is designed for retrofit energy monitoring and sub-metering.
- Three-phase energy analyzer
- Direct Rogowski coil input
- 100 mV/kA at 50 Hz
- RS485 Modbus RTU
- DIN rail mounting
Three-phase energy analyzer for Rogowski coils and Modbus RTU

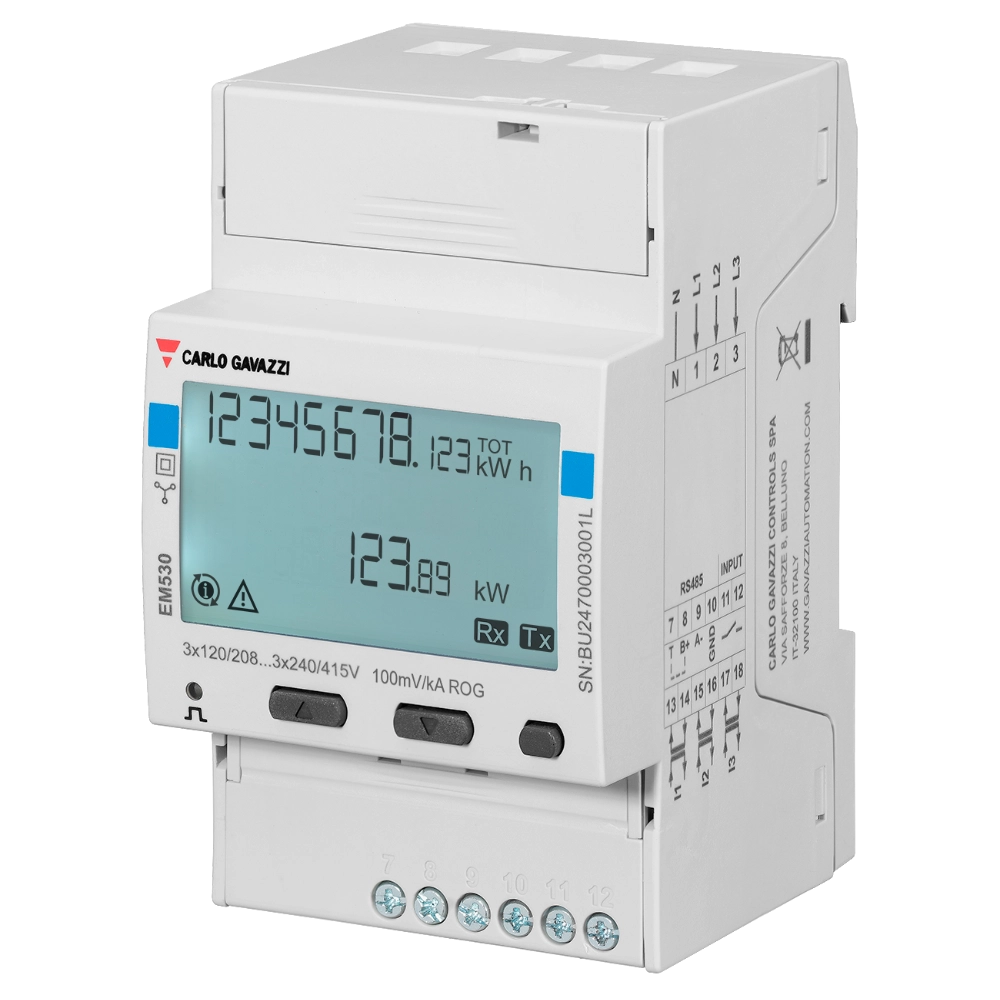

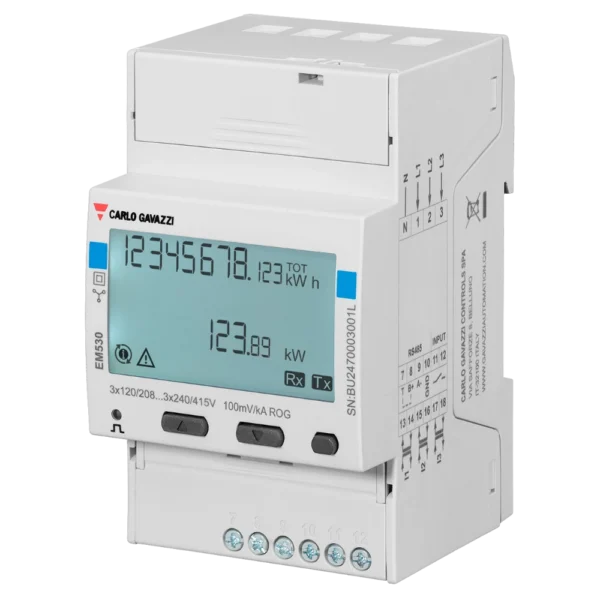

The EM530DINRG53XS1X EM530 RG CG Indirect 3 Phase to Rogowski coils Modbus is a Carlo Gavazzi three-phase energy analyzer designed for indirect current measurement with Rogowski coils. It is particularly suitable for retrofit energy monitoring where flexible current sensors simplify installation around existing cables and busbars.
The EM530 RG connects directly to compatible 100 mV/kA at 50 Hz Rogowski coils without requiring an external integrator. Measured energy and electrical parameters can be transferred to building management, SCADA or energy monitoring systems through the integrated RS485 Modbus RTU interface.
Three-phase energy measurement with Rogowski coils
The analyzer supports two- and three-phase electrical systems up to 415 V L-L and measures both consumed and generated energy. It is compatible with Carlo Gavazzi ROG4X and ROG4U Rogowski coil families and supports a maximum primary current of up to 2880 A with the specified Rogowski input.
Modbus RTU provides access to real-time measurement data with refresh rates down to 100 ms, making the meter suitable for load monitoring, dynamic power management and detailed energy analysis.
See the official Carlo Gavazzi EM530DINRG53XS1X product information for detailed specifications, manuals and Modbus documentation.
Product benefits
- Three-phase indirect energy analyzer
- Direct input for Rogowski coils without external integrator
- Compatible with 100 mV/kA at 50 Hz Rogowski coils
- RS485 Modbus RTU communication
- Measures consumption and generation
- Suitable for systems up to 415 V L-L
- Fast real-time Modbus data refresh
- Well suited to retrofit energy monitoring
Technical specifications
| Product | EM530DINRG53XS1X EM530 RG CG Indirect 3 Phase to Rogowski coils Modbus |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | EM530DINRG53XS1X |
| Meter type | Three-phase energy analyzer |
| Current input | Rogowski coils |
| Rogowski input | 100 mV/kA at 50 Hz |
| Maximum primary current | Up to 2880 A |
| Voltage range | 120–240 V L-N / 208–415 V L-L depending on system configuration |
| Frequency | 50 / 60 Hz |
| Communication | RS485 Modbus RTU |
| Energy measurement | Consumption and generation |
| Energy accuracy | Equivalent to Class 1 for active energy according to EN 62053-21 |
| Power supply | Self-powered |
| Mounting | DIN rail |
Applications
- Three-phase energy monitoring
- Industrial switchboards
- Building energy management
- Dynamic load monitoring
- EV charging load management
- Retrofit sub-metering
Installation and connection
Mount the EM530 RG on a DIN rail and connect the voltage inputs according to the electrical system configuration. Install one compatible Rogowski coil around each monitored phase conductor and connect the coils directly to the analyzer. Connect the RS485 interface to the Modbus RTU network for remote data collection. Installation should be carried out by qualified personnel in accordance with applicable electrical safety requirements.
