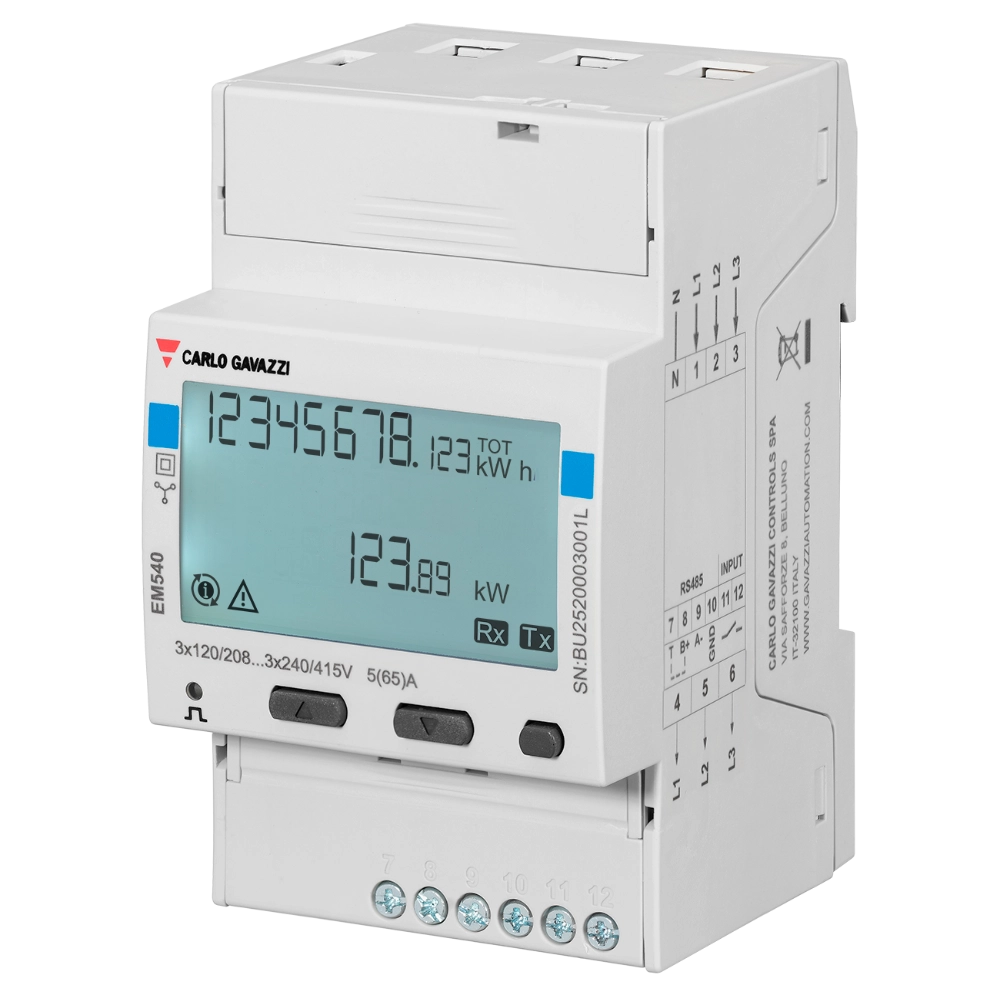

Electrical meter EM540 CG Direct 3 Phase up to 63A Modbus
Three-phase Carlo Gavazzi MID energy meter with direct current measurement and RS485 Modbus RTU.
The EM540DINAV23XS1PFB is designed for direct three-phase energy monitoring without external current transformers and integrates easily with BMS, SCADA and energy monitoring systems.
- Direct three-phase measurement
- Up to 65 A direct connection
- RS485 Modbus RTU
- MID approved
- DIN rail mounting
Three-phase direct energy meter with Modbus RTU
The EM540DINAV23XS1PFB EM540 CG Direct 3 Phase up to 63A Modbus is a Carlo Gavazzi three-phase MID energy analyzer designed for direct connection in commercial and industrial electrical installations. It measures electrical consumption without external current transformers and is suitable for sub-metering, load monitoring and building energy management.
The meter communicates through RS485 Modbus RTU, allowing energy and electrical measurements to be integrated with building management systems, PLCs, SCADA platforms and energy monitoring software.
Direct three-phase energy measurement
The EM540 AV2 version is designed for direct connection in three-phase systems and supports currents up to 65 A according to Carlo Gavazzi documentation. The meter measures imported and exported energy together with key electrical parameters including voltage, current, active power, reactive power, apparent power, power factor and frequency.
The PFB version is MID approved, while the S1 communication option provides RS485 Modbus RTU for remote data collection. The analyzer is self-powered and designed for DIN rail installation.
See the official Carlo Gavazzi EM540DINAV23XS1PFB product information for detailed specifications, Modbus documentation and installation guidance.
Product benefits
- Direct three-phase energy measurement
- Direct connection up to 65 A
- No external current transformers required
- RS485 Modbus RTU communication
- MID approved PFB version
- Measures consumption and generation
- DIN rail mounting
- Suitable for sub-metering and energy management
Technical specifications
| Product | EM540DINAV23XS1PFB EM540 CG Direct 3 Phase up to 63A Modbus |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | EM540DINAV23XS1PFB |
| Meter type | Three-phase MID energy analyzer |
| Connection | Direct |
| Maximum direct current | Up to 65 A |
| Communication | RS485 Modbus RTU |
| MID approval | Yes, PFB variant |
| Energy measurement | Consumption and generation |
| Power supply | Self-powered |
| Mounting | DIN rail |
Applications
- Commercial energy sub-metering
- Industrial energy monitoring
- Electrical distribution boards
- Building energy management
- Modbus-based energy data collection
Installation and connection
Mount the EM540 on a DIN rail and connect the three-phase supply directly through the meter according to the installation diagram. Connect the RS485 interface to the Modbus RTU network for remote data collection. Installation should be carried out by qualified personnel according to applicable electrical safety requirements.
