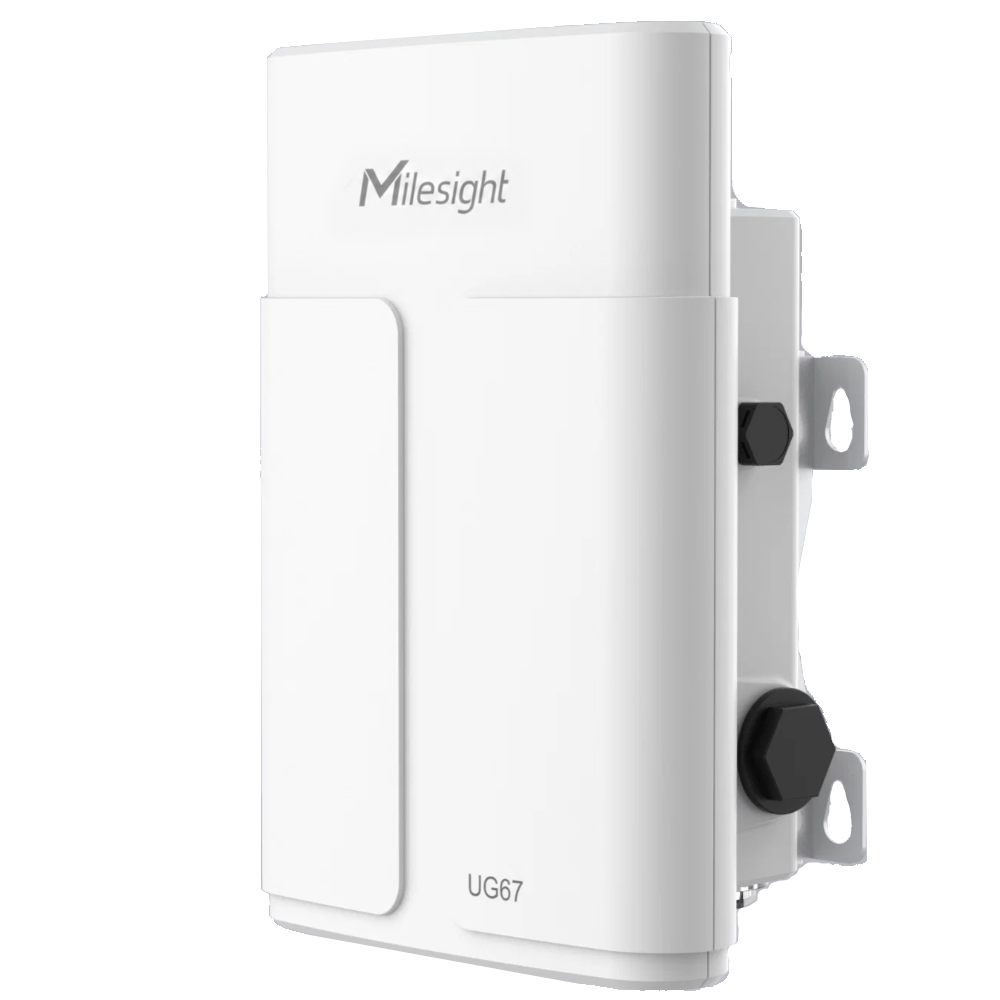

Gateway UG67 MS with cellular, outdoor US Version LoRaWAN
US915 outdoor LoRaWAN gateway with integrated 4G LTE cellular connectivity.
The Milesight UG67 combines 8-channel LoRaWAN communication with Ethernet, Wi-Fi and cellular backhaul in a rugged IP67-rated enclosure for North American installations.
- US915 LoRaWAN version
- 8 LoRaWAN channels
- 4G LTE, Ethernet and Wi-Fi
- Supports more than 2,000 nodes
- IP67 outdoor enclosure
US915 outdoor LoRaWAN gateway with cellular backhaul
The Gateway UG67 MS with cellular, outdoor US Version LoRaWAN is a robust 8-channel outdoor LoRaWAN gateway for IoT installations in North America. It supports the US915 frequency plan and combines LoRaWAN communication with Ethernet, Wi-Fi and 4G LTE cellular backhaul.
The gateway is based on the Semtech SX1302 LoRa chip and a high-performance quad-core processor. It supports more than 2,000 LoRaWAN nodes and offers line-of-sight coverage of up to 15 km under suitable conditions. :contentReference[oaicite:0]{index=0}
US915 connectivity and network integration
The UG67 supports multiple backhaul options including Ethernet, Wi-Fi and cellular, allowing flexible deployment in locations where wired connectivity is unavailable or where cellular backup is required. Its IP67-rated enclosure is designed for demanding outdoor installations. :contentReference[oaicite:1]{index=1}
The built-in network server and support for mainstream LoRaWAN network servers make the gateway suitable for integration with IoT platforms and larger sensor networks. :contentReference[oaicite:2]{index=2}
See the official Milesight UG67 product information and documentation for detailed configuration and specifications.
Product benefits
- US915 LoRaWAN version for North America
- 8-channel LoRaWAN gateway
- 4G LTE cellular backhaul
- Ethernet and Wi-Fi connectivity
- Supports more than 2,000 LoRaWAN nodes
- Up to 15 km line-of-sight coverage
- Built-in LoRaWAN network server
- IP67-rated outdoor enclosure
Technical specifications
| Product | Gateway UG67 MS with cellular, outdoor US Version LoRaWAN |
|---|---|
| Manufacturer | Milesight |
| LoRaWAN frequency | US915 |
| LoRa chipset | Semtech SX1302 |
| LoRaWAN channels | 8 half/full-duplex channels |
| Supported nodes | More than 2,000 |
| Maximum line-of-sight range | Up to 15 km |
| Backhaul | 4G LTE, Ethernet and Wi-Fi |
| Power supply | PoE or DC |
| Protection rating | IP67 |
| Installation | Wall or pole mounting |
| Operating temperature | -40 to +70 °C |
Applications
- Smart metering and energy monitoring
- Smart agriculture
- Outdoor industrial IoT installations
- Utilities and infrastructure monitoring
- US915 LoRaWAN sensor networks
Installation and connection
The UG67 supports wall or pole mounting and can be powered through PoE or DC. Configure the gateway for US915 operation and connect it through Ethernet, Wi-Fi or 4G LTE according to the installation requirements.
