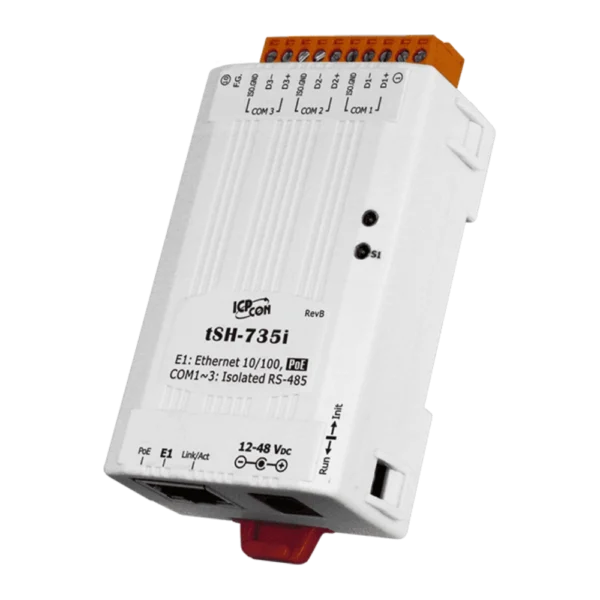

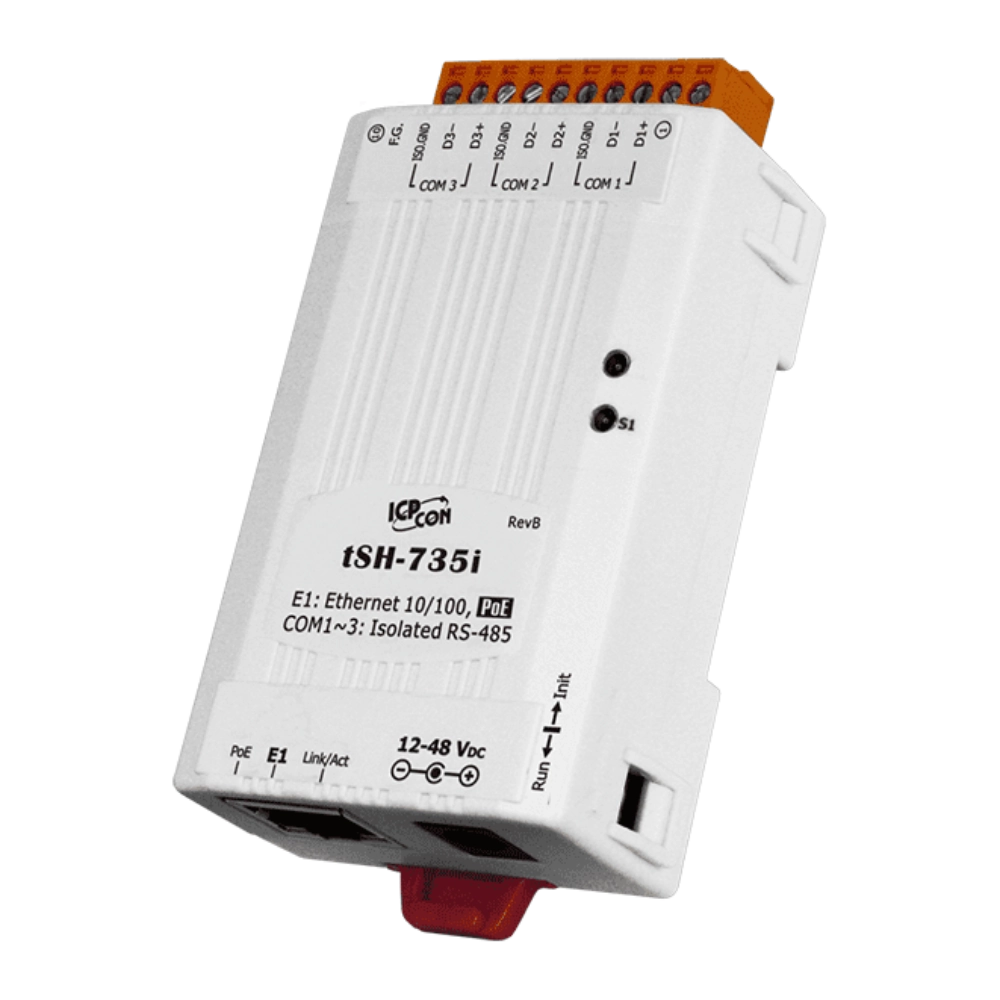

Comm. module ICP TSH-735i CR Modbus splitter
ICP DAS tSH-735i CR RS485 Modbus splitter with 3 isolated ports, Modbus RTU/ASCII conversion, two-master sharing, Ethernet and PoE.
3-port isolated RS485 Modbus splitter with PoE
The ICP TSH-735i CR Modbus splitter is a compact ICP DAS serial port sharer designed for Modbus RTU/ASCII and other query-response serial applications. It provides three isolated RS485 ports and can be used to share one Modbus slave network between two master devices, convert baud rates or bridge different serial communication settings.
The unit also includes a 10/100Base-TX Ethernet port with IEEE 802.3af PoE support, allowing network connection and power to be supplied through the same Ethernet cable where compatible PoE infrastructure is available. Configuration is performed through the built-in web server.
RS485 sharing and Modbus conversion
The tSH-735i supports Modbus RTU/ASCII protocol conversion, baud-rate conversion and raw-data mode for many query-response protocols. In two-master applications, two devices connected to separate serial ports can access the same slave devices through the third RS485 port.
A built-in read-cache function can reduce repeated traffic on the slave bus when both masters request the same information. Each of the three RS485 interfaces is galvanically isolated with 3000 VDC signal isolation and supports communication speeds up to 115200 bps.
See the official ICP DAS tSH-735i product information and specifications for configuration details, wiring and application examples.
Product benefits
- Three isolated RS485 communication ports
- Supports two Modbus masters sharing one slave network
- Modbus RTU/ASCII protocol conversion
- Baud-rate and serial-format conversion
- Built-in read-cache function
- 10/100Base-TX Ethernet with IEEE 802.3af PoE
- Web-based configuration
- DIN-rail mounting for control cabinet installation
Technical specifications
| Product | ICP TSH-735i CR Modbus splitter |
|---|---|
| Manufacturer | ICP DAS |
| Model | tSH-735i CR |
| Product type | Serial port sharer / converter |
| Serial ports | 3 × RS485 |
| RS485 isolation | 3000 VDC signal isolation |
| Maximum baud rate | 115200 bps |
| Supported protocols | Modbus RTU, Modbus ASCII and raw query-response data |
| Maximum RS485 nodes | 254 |
| Ethernet | 10/100Base-TX, RJ45 |
| PoE | IEEE 802.3af, Class 1 |
| Configuration | Built-in HTTP web server |
| Power consumption | 0.07 A at 24 VDC |
| Dimensions | 52 × 27 × 95 mm |
| Mounting | DIN rail |
| Operating temperature | -25 to +75 °C |
| Storage temperature | -30 to +80 °C |
Applications
- Modbus energy meter networks
- BMS and SCADA integration
- Two-master Modbus installations
- Industrial automation
- Building automation
- Remote diagnostics and monitoring
Installation and connection
Mount the tSH-735i on a DIN rail and connect the required RS485 master and slave networks to the three isolated serial ports. Configure baud rate, parity, protocol and operating mode through the integrated web interface. Ethernet can be connected to a compatible PoE switch or injector when IEEE 802.3af power is used. RS485 polarity, bus topology and termination should follow the requirements of the connected Modbus devices.
