Comm. module KAM Pulse module for Flow IQ 2200/3200

Pulse adapter for Kamstrup flowIQ 2200 and 3200

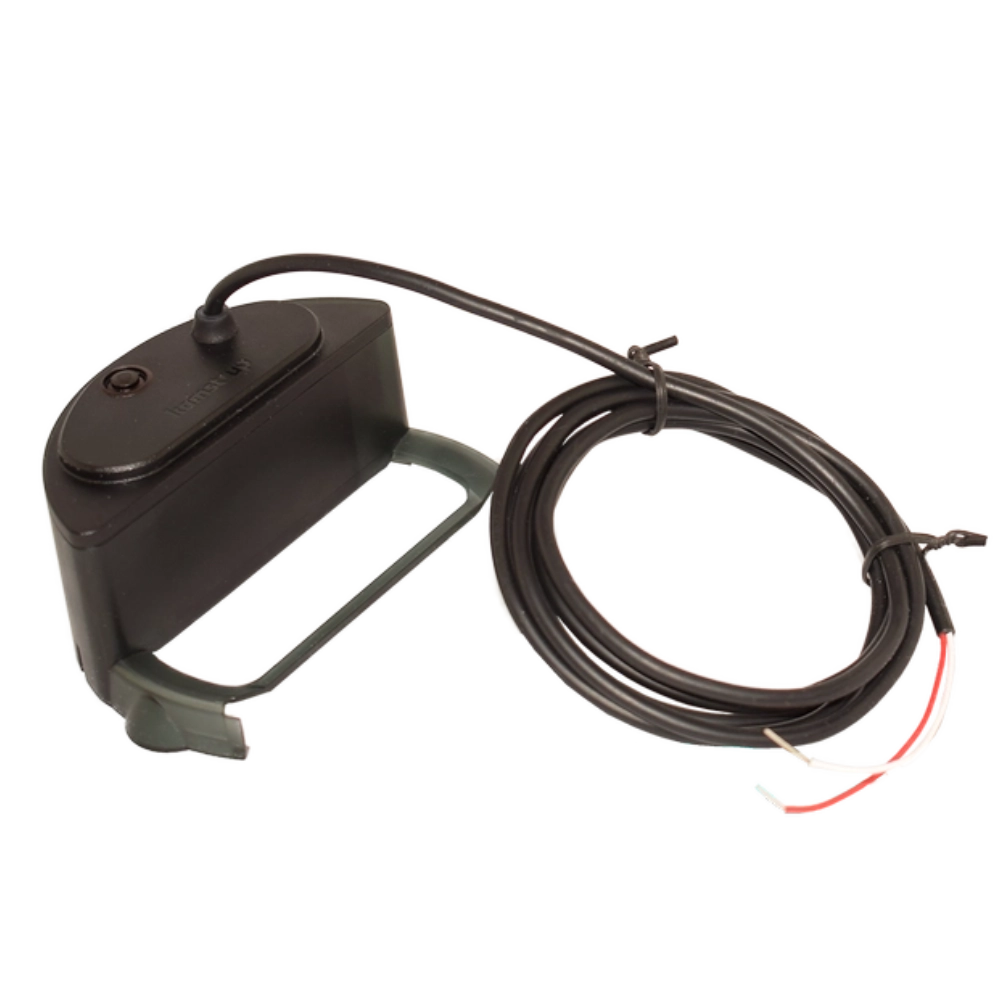

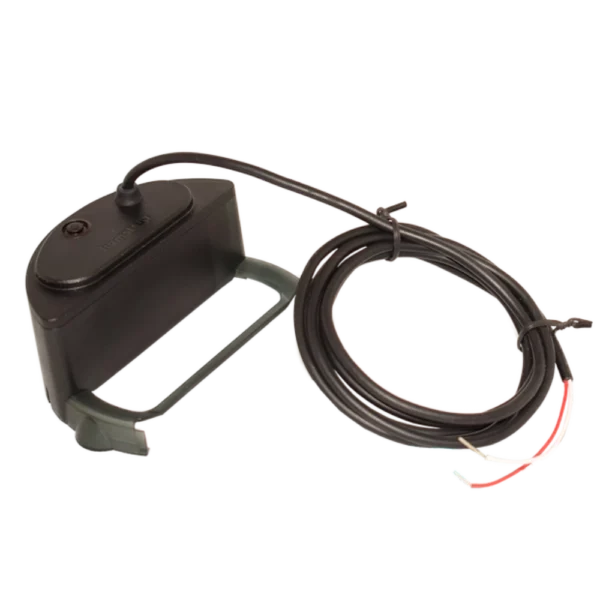

The KAMstrup Pulse module for Flow IQ 2200/3200 is a Kamstrup Pulse Adapter designed to add a wired pulse output to compatible flowIQ 2200 and flowIQ 3200 water meters. It mounts directly onto the meter and provides a simple way to integrate water consumption data with external pulse counters, data loggers, PLCs and building management systems.

The adapter has its own internal battery, so operation does not reduce the battery life of the connected water meter. Activation is performed directly on the adapter, and a compatible meter then provides a pulse output of 10 litres per pulse. :contentReference[oaicite:0]{index=0}

10 L/pulse output for external data collection

The Pulse Adapter is type 66-99-051 and is specifically designed for supported variants of Kamstrup flowIQ 2200 and flowIQ 3200. Installation uses a simple click-on mounting system without additional installation tools. :contentReference[oaicite:1]{index=1}

The output uses a MOSFET solid-state relay and accepts an external bipolar voltage of 1–30 V DC with a maximum current of 50 mA. The standard cable length is 1.5 m and can be extended up to 25 m. :contentReference[oaicite:2]{index=2}

See the official Kamstrup Pulse Adapter for flowIQ 2200/3200 product information and documentation for detailed meter compatibility and installation instructions.

Product benefits

• Adds pulse output to compatible flowIQ 2200 and 3200 meters
• Pulse value of 10 L/pulse
• Simple click-on installation
• Own internal battery with up to 16 years specified lifetime
• Does not consume the water meter battery
• IP65 construction
• Suitable for data loggers, PLCs and building management systems

Technical specifications

Applications

• Water consumption monitoring
• Pulse-based data logging
• Building management systems
• PLC and controller integration
• Retrofit water meter data collection

Installation and connection

Mount the Pulse Adapter directly onto a compatible flowIQ 2200 or flowIQ 3200 meter and activate it according to the Kamstrup installation guide. Connect the pulse output to compatible pulse-counting equipment. Meter module and software revision must be checked before installation because the adapter is not supported by every flowIQ 2200/3200 variant. :contentReference[oaicite:3]{index=3}
