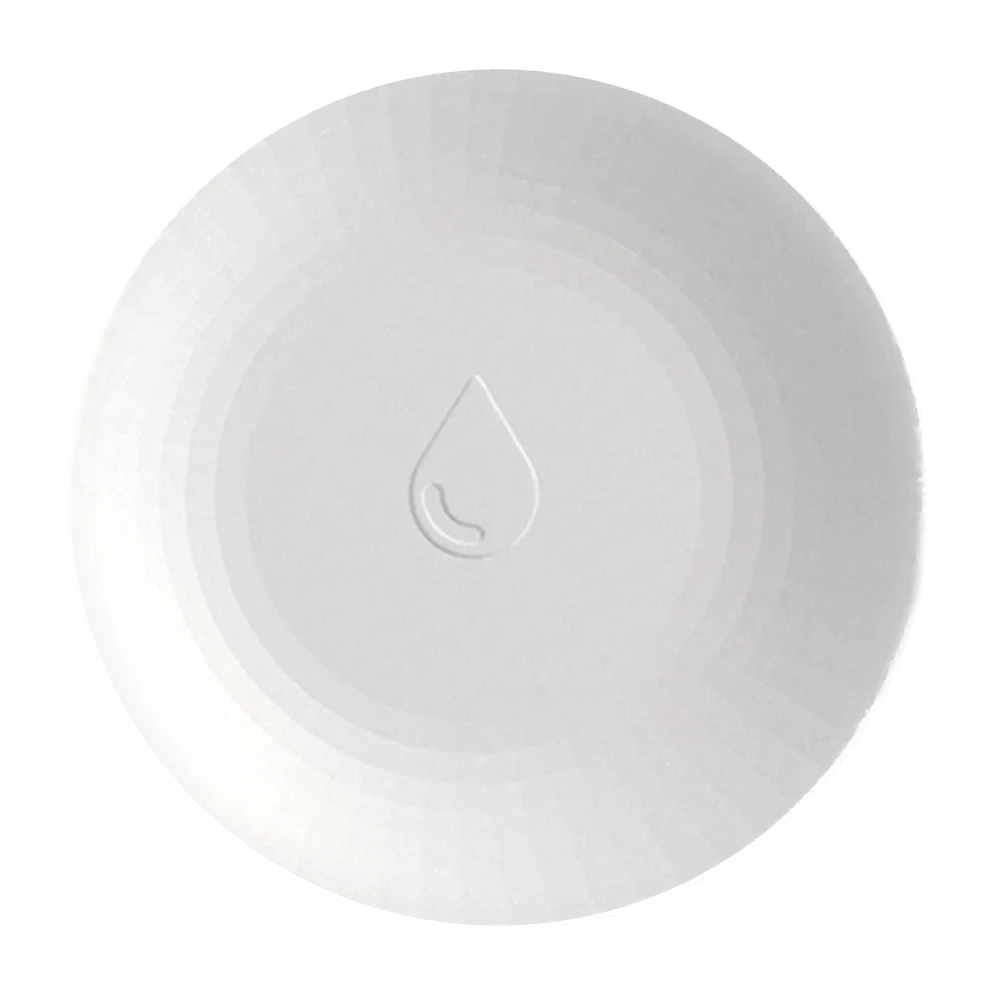

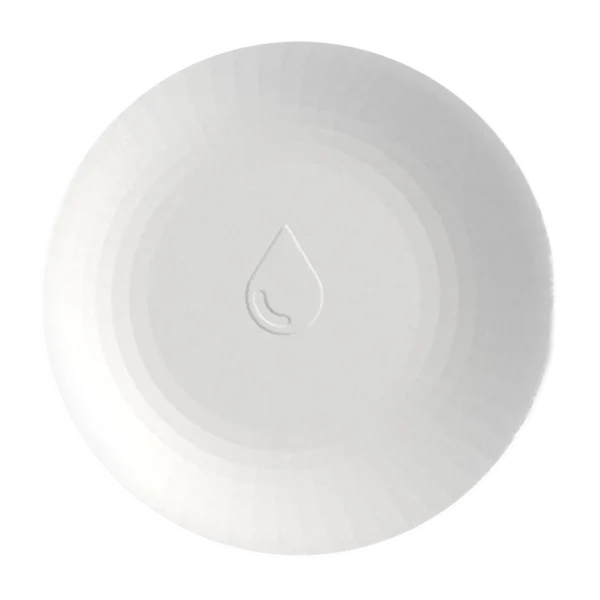

Flood sensor MC water LoRaWAN
MClimate LoRaWAN flood sensor with rapid water detection, local alarm and temperature monitoring.
The compact sensor detects water within seconds and sends alerts through LoRaWAN while also activating its built-in buzzer and LED.
- 3-pin flood detection
- LoRaWAN Class A
- Temperature and tamper monitoring
- Built-in buzzer and LED
- Up to 10 years battery life
LoRaWAN flood sensor with local alarm and temperature monitoring
The Mclimate Flood sensor lorawan is a compact wireless flood detector designed for residential, commercial and building-management applications. It detects water using three sensing pins on the bottom of the device and sends a LoRaWAN alert within seconds when all three pins make contact with water.
The sensor can communicate through a compatible LoRaWAN gateway to a monitoring or building-management platform. In addition to wireless alerts, the device includes a built-in buzzer and LED for local indication of a detected flood.
Flood detection with temperature and tamper monitoring
The MClimate Flood Sensor also includes an integrated temperature sensor, allowing the surrounding temperature to be monitored alongside flood status. This can help identify conditions where freezing may become a risk.
A built-in anti-tamper function detects attempts to open or interfere with the device and can report the event through LoRaWAN. The enclosure uses a rubber seal to help prevent water entering the electronics, and the sensor is designed to float if submerged, allowing it to be reused after a flooding event.
The device operates as a LoRaWAN Class A end-device and supports OTAA, ADR and adaptive channel setup. A replaceable CR123A battery provides up to 10 years of expected battery life depending on configuration and operating conditions.
See the official MClimate Flood Sensor LoRaWAN product information and documentation for detailed specifications, installation instructions and payload information.
Product benefits
- Detects flooding within seconds
- LoRaWAN Class A communication
- Built-in audible buzzer and LED indication
- Integrated temperature measurement
- Anti-tamper detection
- Replaceable CR123A battery
- Up to 10 years expected battery life
- Reusable water-resistant design
Technical specifications
| Product | Mclimate Flood sensor lorawan |
|---|---|
| Manufacturer | MClimate |
| Product type | LoRaWAN flood sensor |
| Flood detection | 3-pin water contact sensor |
| Additional sensing | Temperature and tamper detection |
| Local indication | Buzzer and LED |
| Wireless technology | LoRaWAN 1.0.3 |
| LoRaWAN class | Class A |
| Activation | OTAA |
| Supported features | ADR and Adaptive Channels setup |
| Frequency | EU863–870; other regional variants available on request |
| RF transmit power | 14 dBm |
| Link budget | 130 dB |
| Battery | 1 × CR123A |
| Expected battery life | Up to 10 years depending on configuration and environment |
| Operating voltage | 3 VDC |
| Dimensions | 70 × 70 × 19 mm |
| Weight | 33 g |
| Enclosure | ABS |
Applications
- Leak and flood detection
- Technical rooms and plant rooms
- Basements and utility areas
- Commercial buildings and offices
- Residential properties
- Building management and remote alarm systems
Installation and connection
Place the MClimate Flood Sensor on a flat surface in the area where water is most likely to collect. Register the device with the LoRaWAN network using OTAA and configure the required alarm and reporting parameters. A compatible LoRaWAN gateway and network server are required for remote monitoring.
