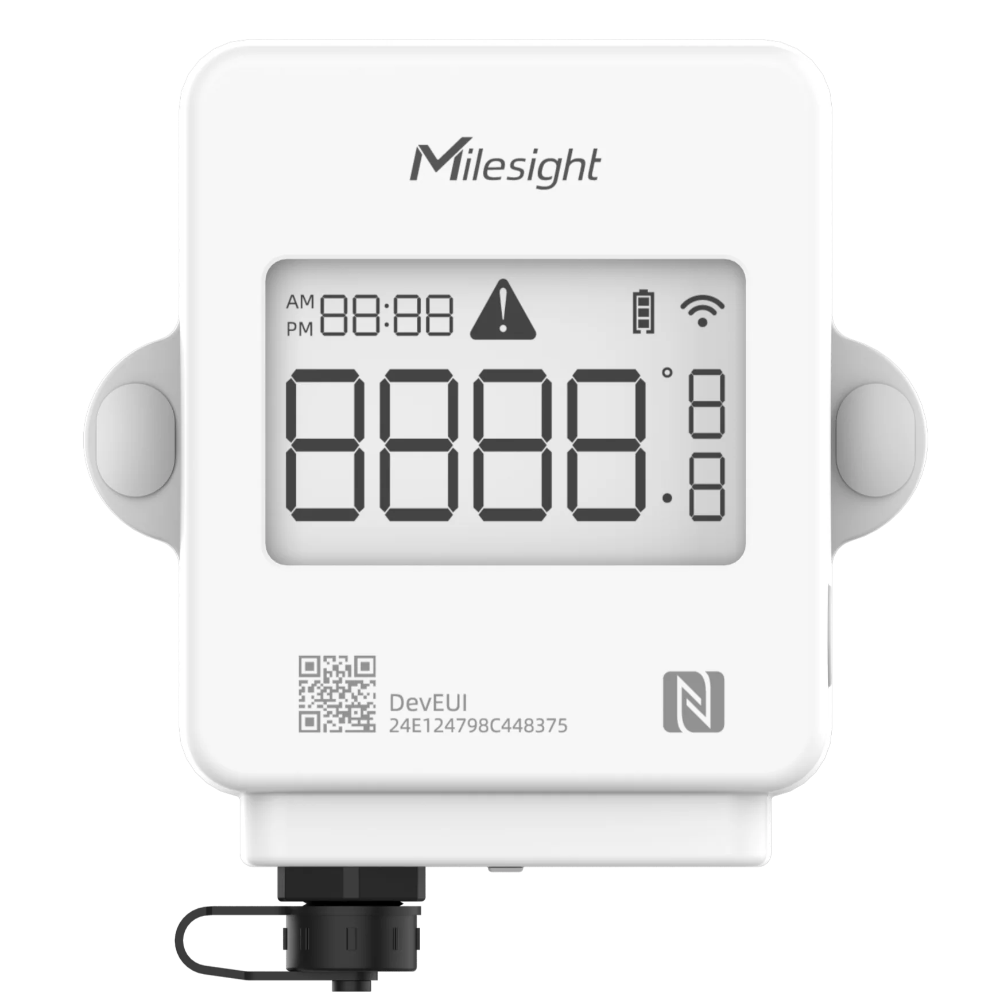

Temperature sensor MS for external probe, single, TS301 LoRaWAN
Single-channel LoRaWAN temperature sensor for monitoring with a detachable external probe.
The Milesight TS301 supports one compatible temperature, temperature and humidity, or magnetic contact sensor. It includes an LCD display, NFC configuration and local storage for up to 10,000 measurements.
- One external sensor connection
- LoRaWAN communication
- Integrated LCD display
- NFC configuration
- IP65-rated enclosure
The external probe may need to be ordered separately.
Single-channel LoRaWAN temperature sensor for external probes
The Temperatur sensor MS for external probe, single, TS301 LoRaWAN is designed for remote temperature monitoring with one detachable external probe. It is suitable for cold rooms, refrigerators, freezers, food storage, pharmaceutical environments and technical installations.
Measurements are transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform for visualisation, alarms and historical analysis.
Flexible external probe connection
The TS301 has one M12 connector for a compatible temperature probe, temperature and humidity probe or magnetic contact sensor. Available probe options include PT100 and DS18B20 sensors for different measuring ranges and applications.
The exact measuring range and accuracy depend on the selected external probe. Detachable probes can be serviced, replaced or calibrated without replacing the complete device.
Communication and configuration
The sensor supports LoRaWAN Class A, Milesight D2D and configuration through NFC using the Milesight ToolBox app. Its integrated LCD displays current measurements and device status locally.
Up to 10,000 measurements can be stored internally and exported as CSV or PDF. Data retransmission helps recover measurements after temporary network interruptions.
See the official Milesight TS301 product documentation for probe options and detailed technical information.
Product benefits
- One connection for a detachable external probe
- Supports temperature, temperature and humidity, or magnetic contact sensors
- Wireless LoRaWAN communication
- Integrated LCD display
- NFC configuration with Milesight ToolBox
- Storage of up to 10,000 measurements
- CSV and PDF data export
- IP65-rated enclosure
- Replaceable batteries or USB-C power supply
Technical specifications
| Product | Temperatur sensor MS for external probe, single, TS301 LoRaWAN |
|---|---|
| Manufacturer | Milesight |
| Model | TS301 |
| Sensor connections | 1 × 5-pin M12 connector |
| Supported sensors | Temperature, temperature and humidity, or magnetic contact sensor |
| Measuring range | Depends on the connected probe |
| Communication | LoRaWAN and Milesight D2D |
| LoRaWAN mode | OTAA or ABP, Class A |
| Configuration | NFC, Milesight ToolBox and LoRaWAN downlink |
| Local storage | Up to 10,000 measurements |
| Protection rating | IP65 |
Applications
- Cold rooms, refrigerators and freezers
- Food and pharmaceutical storage
- Laboratories and healthcare facilities
- Pipe and process temperature monitoring
- Warehouses and technical installations
Installation and connection
Install the TS301 where LoRaWAN coverage is available and connect a suitable external probe for the required measuring range. A compatible gateway, network server and monitoring platform are required. The external probe may need to be ordered separately.
Additional information
