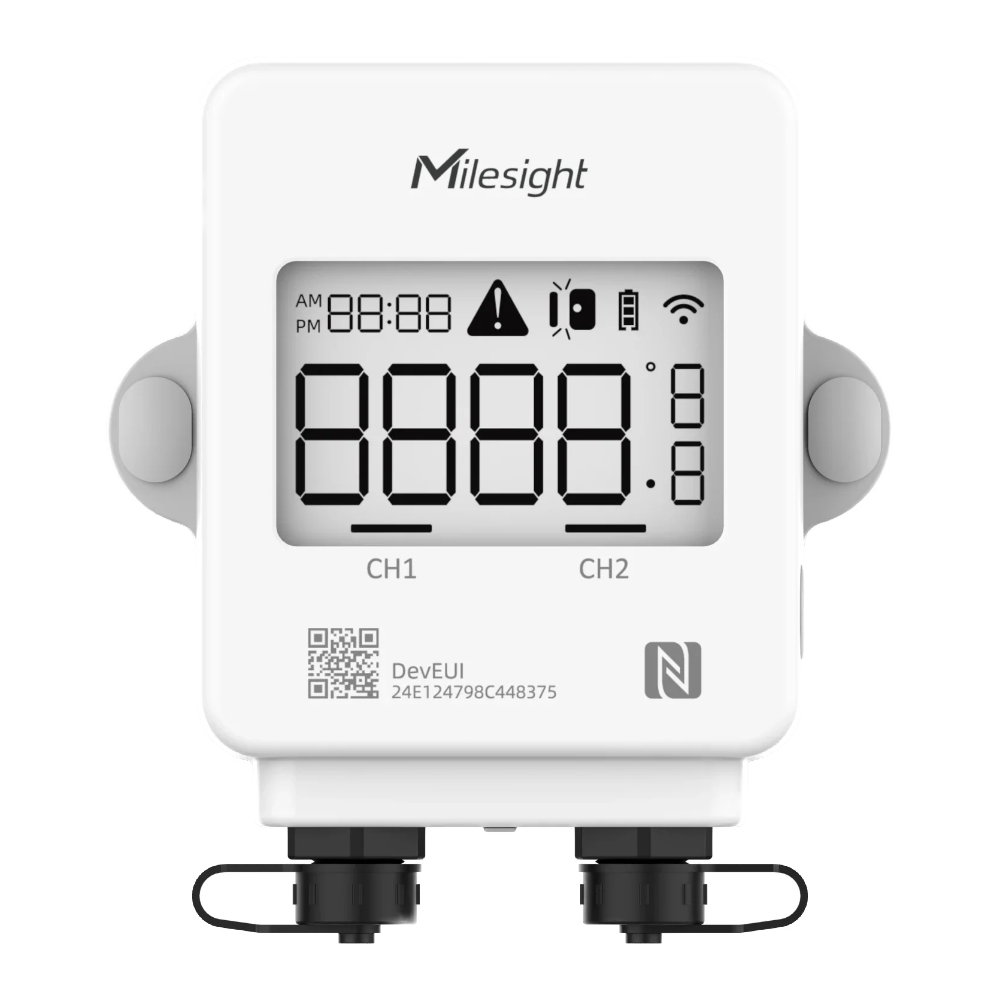

Temperature sensor MS for external probe, dual, TS302 LoRaWAN
Dual-channel LoRaWAN temperature sensor for flexible monitoring with external probes.
The Milesight TS302 supports two compatible temperature or temperature and humidity probes. Alternatively, it can combine one measurement probe with a magnetic door sensor for simultaneous temperature and door-status monitoring.
- Two external sensor channels
- Supports multiple detachable probe types
- Integrated LCD display
- LoRaWAN and Milesight D2D communication
- NFC configuration with Milesight ToolBox
- Local storage of up to 10,000 records
- IP65-rated enclosure
External probes must be selected separately according to the required measuring range and application, unless otherwise stated in the product package.
Dual-channel LoRaWAN temperature sensor for external probes
The Temperature sensor MS for external probe, dual, TS302 LoRaWAN is designed for remote monitoring with up to two detachable external probes. It is suitable for cold rooms, refrigerators, freezers, pharmaceutical storage and technical installations where two measuring points must be monitored.
The TS302 can be connected to two compatible measurement probes or to one measurement probe and one magnetic door sensor. Data is transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform.
Flexible probe configuration
The detachable probe design supports different temperature ranges and applications. Compatible options include PT100, DS18B20 and temperature and humidity probes. The exact measuring range and accuracy depend on the selected probes.
Configuration is performed through NFC and the Milesight ToolBox app. The integrated LCD shows current measurements and device status locally.
See the official Milesight TS30x product documentation for available probe options and detailed specifications.
Product benefits
- Two channels for detachable external probes
- Supports two measurement probes or one probe and one door sensor
- Wireless LoRaWAN communication
- Integrated LCD display
- NFC configuration with Milesight ToolBox
- Local storage of up to 10,000 records
- IP65-rated enclosure
- Replaceable batteries
Technical specifications
| Model | Milesight TS302 |
|---|---|
| Probe channels | 2 |
| Supported probes | PT100, DS18B20, temperature and humidity probe, or magnetic door sensor |
| Communication | LoRaWAN and Milesight D2D |
| Configuration | NFC and Milesight ToolBox |
| Local storage | Up to 10,000 records |
| Protection rating | IP65 |
| Measuring range | Depends on the connected probe |
Applications
- Cold rooms, refrigerators and freezers
- Food and pharmaceutical storage
- Laboratories and healthcare facilities
- Pipe and process temperature monitoring
- Combined temperature and door-status monitoring
Installation and connection
Install the device where LoRaWAN coverage is available and connect suitable probes for the required measuring range. A compatible LoRaWAN gateway, network server and monitoring platform are required. External probes may need to be ordered separately.
