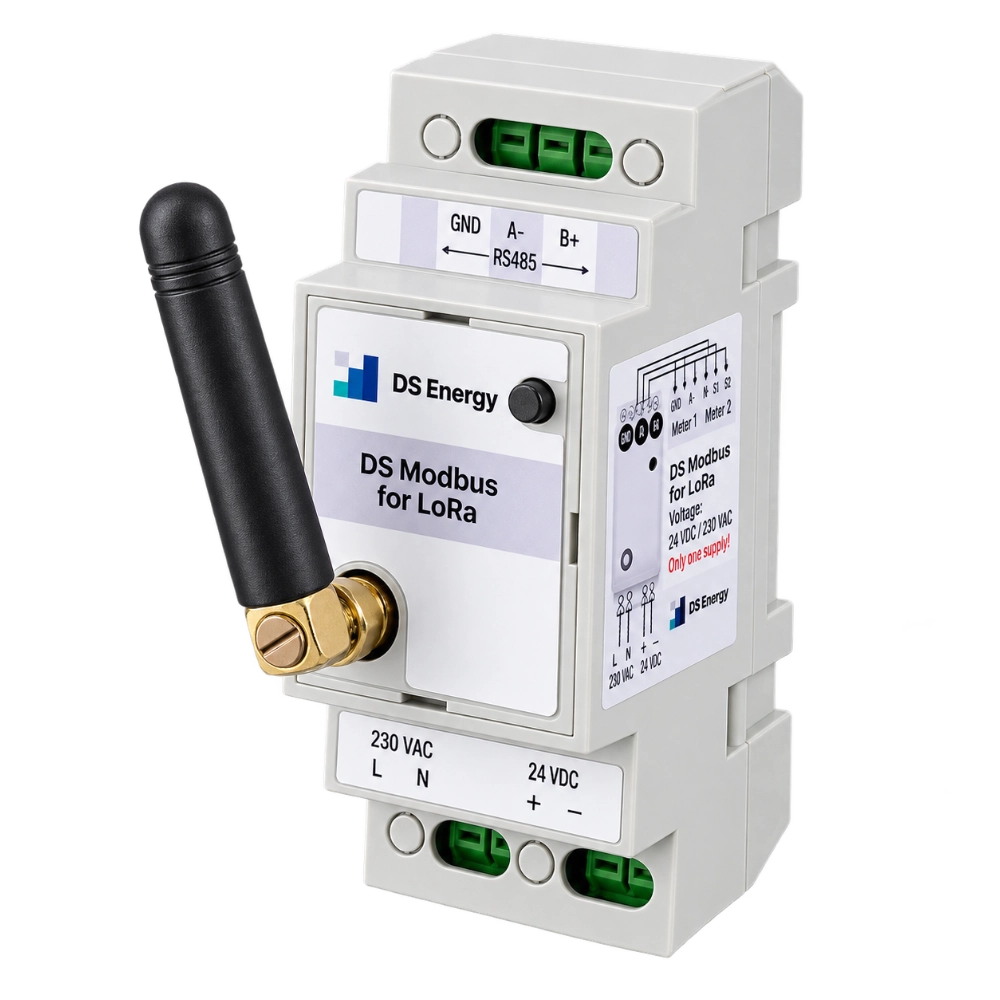

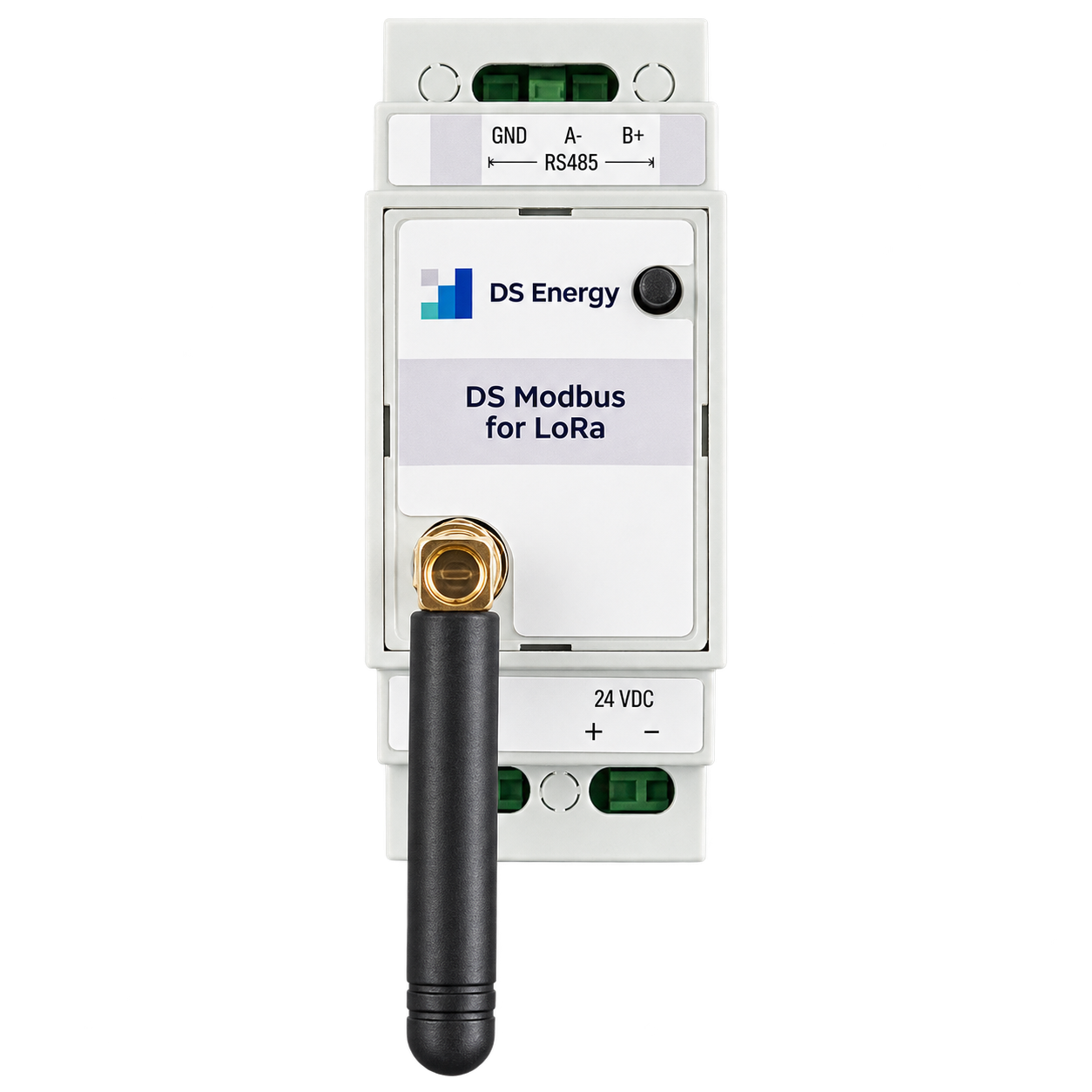

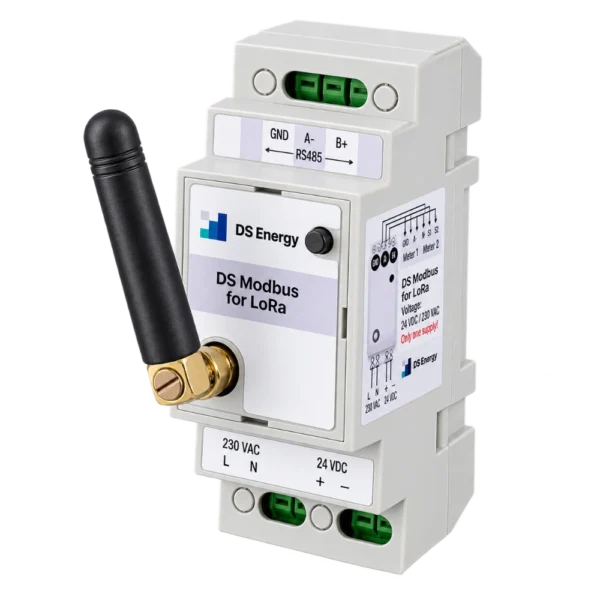

Comm. module DSE Modbus to LoRaWAN
DS Energy Modbus to LoRaWAN gateway for remote reading of RS485 Modbus meters and industrial equipment.
The gateway transfers Modbus data over LoRaWAN and supports remote configuration through LoRaWAN downlink.
- RS485 Modbus interface
- EU868 or US915 LoRaWAN
- 5 min to 24 h transmission interval
- 24 VDC or 230 VAC supply
- DIN rail mounting
Modbus to LoRaWAN gateway for remote meter reading
The Modbus - LoRaWAN gateway is a DS Energy communication gateway designed to connect Modbus devices to a LoRaWAN network. It reads data from connected Modbus equipment through RS485 and transmits the selected data wirelessly via LoRaWAN to a LoRaWAN gateway, which can forward the information to the relevant server or DS Energy backend.
The gateway is particularly suitable for remote reading of electricity meters, water meters, gas meters and other energy meters with a Modbus interface. Industrial devices such as PLCs can also be connected for remote reading or configuration. :contentReference[oaicite:0]{index=0}
Remote Modbus communication via LoRaWAN

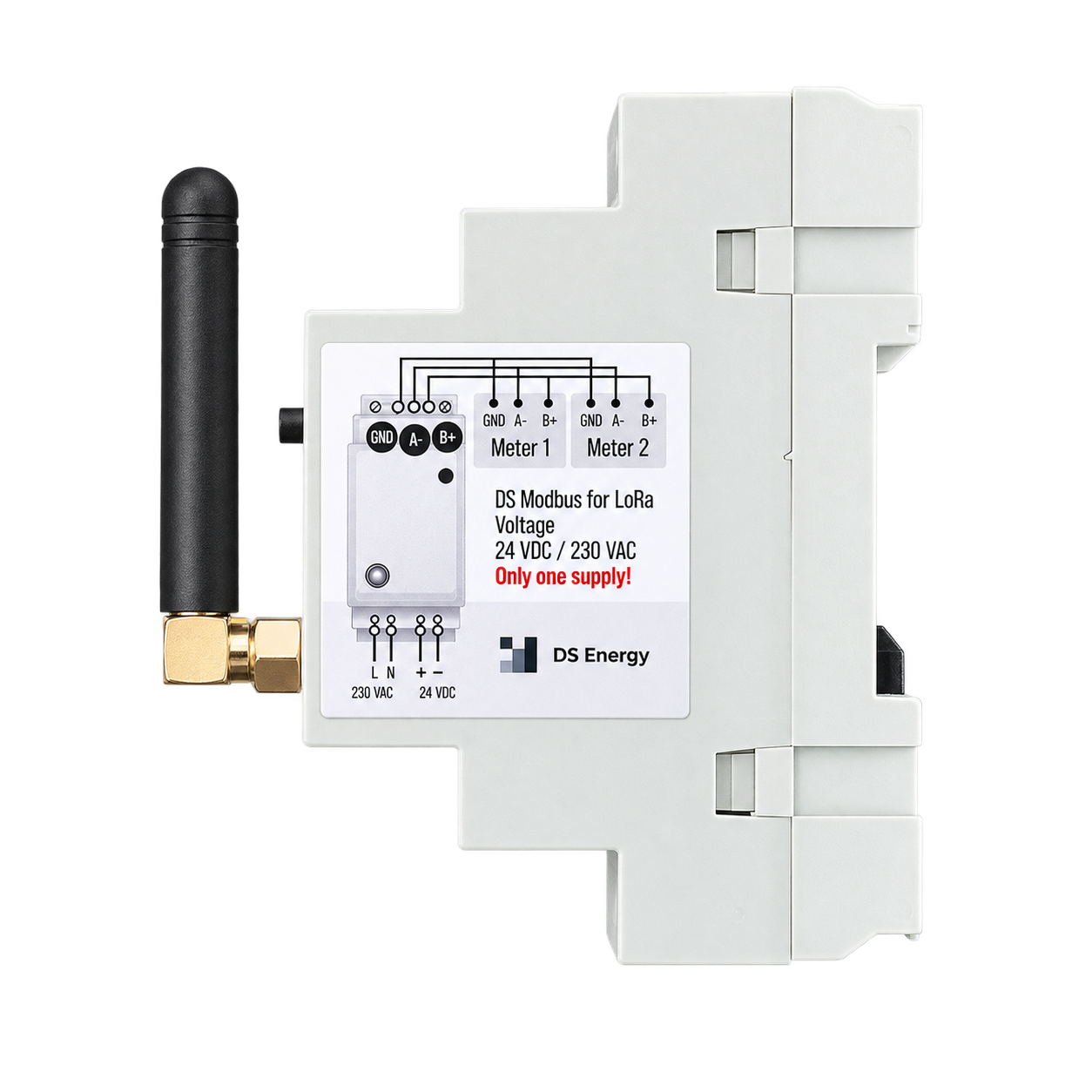

The module supports configuration through LoRaWAN downlink, making it possible to change communication settings remotely. The RS485 interface uses GND, A- and B+ connections and is Modbus compatible.
Wireless communication is available for EU868 or US915 LoRaWAN networks, and the transmission interval can be configured from 5 minutes to 24 hours. The antenna connection uses an SMA-RP female connector and can also be used with an extension cable for an external antenna. :contentReference[oaicite:1]{index=1} :contentReference[oaicite:2]{index=2}
For a complete LoRaWAN installation, the device communicates through a compatible LoRaWAN gateway and network infrastructure.
Product benefits
- Connects Modbus RS485 devices to LoRaWAN
- Suitable for electricity, water, gas and other energy meters
- Can also connect industrial PLCs and Modbus equipment
- Remote configuration through LoRaWAN downlink
- EU868 and US915 versions available
- Configurable transmission interval from 5 minutes to 24 hours
- DIN rail mounting for control cabinet installation
- 24 VDC or 230 VAC supply options
Technical specifications
| Product | Modbus - LoRaWAN gateway |
|---|---|
| Manufacturer | DS Energy |
| Product type | Modbus to LoRaWAN gateway |
| RS485 interface | GND, A-, B+ |
| RS485 protocol | Modbus compatible |
| Wireless communication | LoRaWAN |
| LoRaWAN frequency | EU868 or US915 |
| Transmission interval | 5 minutes to 24 hours |
| Antenna connection | SMA-RP female |
| Supply voltage | 24 VDC or 230 VAC |
| Dimensions | 36 × 83 × 90 mm |
| DIN width | 2 modules |
| Protection rating | IP20 |
| Mounting | DIN rail |
| Housing material | ABS plastic |
| Terminal type | Spring terminals, 5 mm spacing |
| Maximum wire size | 1.5 mm² |
| Operating temperature | -20 to +60 °C |
| Storage temperature | -40 to +85 °C |
| Relative humidity | Max. 90% RH, non-condensing at 40 °C |
Applications
- Remote electricity meter reading
- Water and gas meter monitoring
- Building energy management
- Industrial Modbus data collection
- PLC monitoring and remote configuration
- Retrofit LoRaWAN integration of existing Modbus devices
Installation and connection
Mount the gateway on a DIN rail and connect the Modbus device to the RS485 terminals using GND, A- and B+. Supply the gateway using the correct terminals for either 24 VDC or 230 VAC. The 24 VDC terminals must never be connected to 230 VAC, as this will damage the module. :contentReference[oaicite:3]{index=3}
Configure the LoRaWAN network settings and required transmission interval, then connect the device to the relevant LoRaWAN network and receiving platform. Installation should be carried out according to the supplied datasheet and applicable electrical safety requirements.
