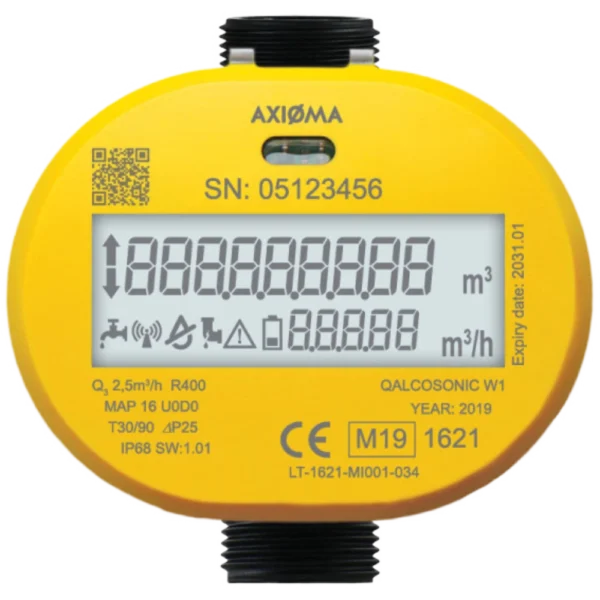

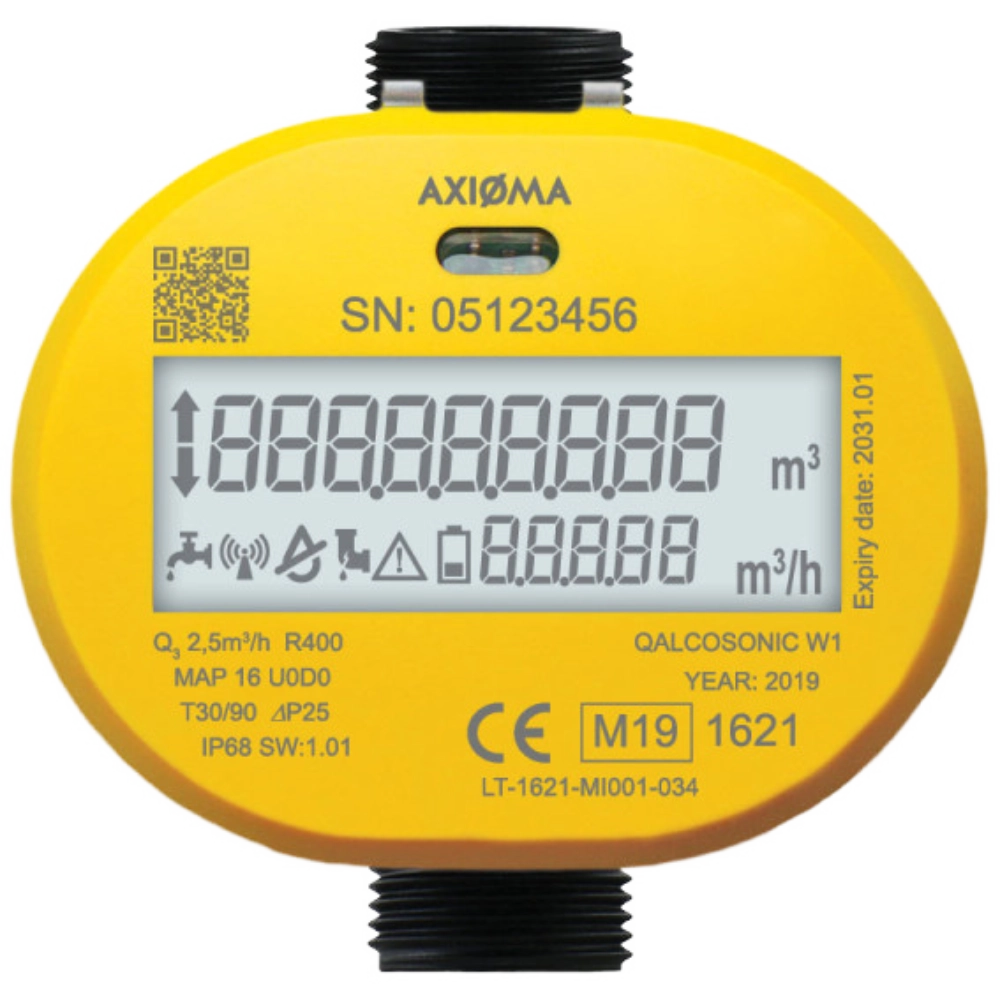

Water meter QALCOSONIC W1 AXI 2,5m3/h, DN15, 110mm G3/4, Composite LoRaWAN
DN15 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with a nominal flow of 2.5 m³/h, 110 mm G3/4 connection and durable IP68 composite housing.
- Q3 2.5 m³/h
- DN15, 110 mm, G3/4
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for residential and commercial metering
The QALCOSONIC W1 AXI 2,5m3/h, DN15, 110mm G3/4, Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of cold and hot water consumption in residential buildings, apartments and commercial premises.
The meter has no moving measuring parts and uses ultrasonic technology to measure water flow. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 2.5 m³/h, DN15 connection, 110 mm installation length and G3/4 thread. The durable composite housing and IP68 protection make the meter suitable for long-term water metering applications.
The QALCOSONIC W1 supports bi-directional flow measurement and includes an internal data logger for hourly, daily and monthly historical values. The display and alarm functions can indicate leakage, burst, backflow, empty pipe, low battery and other operating conditions.
Meter data and parameters can also be accessed locally through NFC or the optical interface. See the official Axioma Metering QALCOSONIC W1 product information for detailed specifications and configuration options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 2.5 m³/h
- DN15, 110 mm, G3/4 connection
- Integrated LoRaWAN communication
- Bi-directional flow measurement
- Internal hourly, daily and monthly data logging
- Up to 16 years battery life depending on communication settings
- IP68-rated composite housing
Technical specifications
| Product | QALCOSONIC W1 AXI 2,5m3/h, DN15, 110mm G3/4, Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 2.5 m³/h |
| Maximum flow Q4 | 3.125 m³/h |
| Nominal diameter | DN15 |
| Overall length | 110 mm |
| Connection | G3/4 |
| Housing | Composite |
| Nominal pressure | PN16 |
| Dynamic range | Available up to R800 depending on configuration |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Display | 9-digit multi-line LCD |
| Protection rating | IP68 |
| Battery life | Up to 16 years depending on communication settings |
| Installation position | Horizontal, vertical or diagonal |
Applications
- Apartment and residential water metering
- Commercial water consumption monitoring
- Property sub-metering
- Building utility management
- Remote water meter reading
Installation and connection
Install the meter in a DN15 pipeline with G3/4 connections. No straight pipe sections are required before or after the meter, and it can be installed in multiple orientations. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading.
