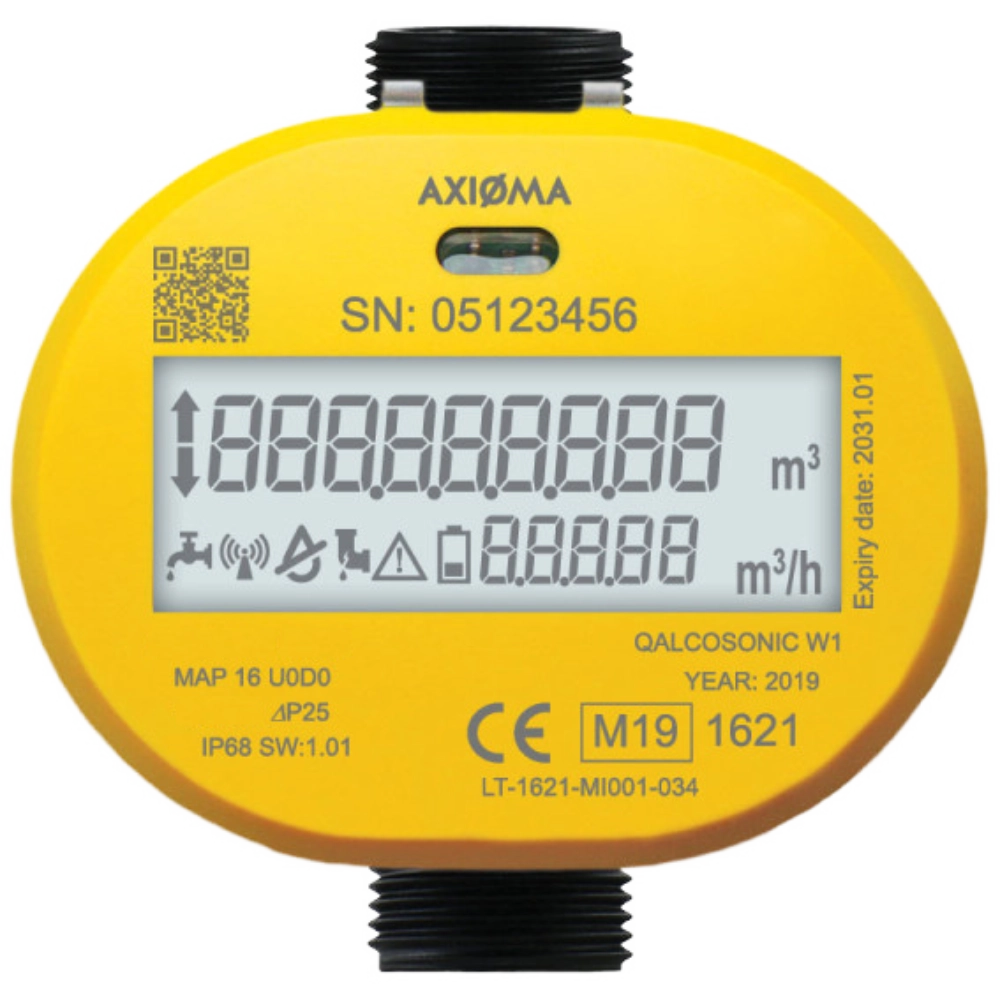

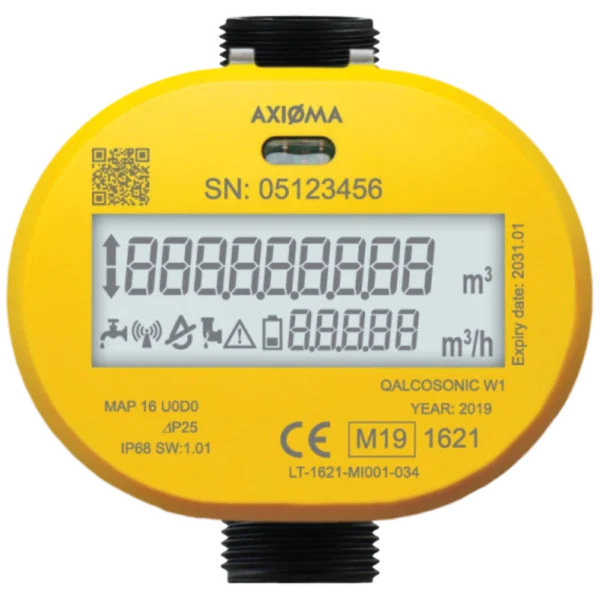

Water meter QALCOSONIC W1 AXI 4m3/h, DN20, 190mm G1, Composite LoRaWAN
DN20 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with Q3 4.0 m³/h, 190 mm G1 connection and an IP68 composite housing.
- Q3 4.0 m³/h
- DN20, 190 mm, G1
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for residential and commercial metering
The QALCOSONIC W1 AXI 4m3/h, DN20, 190mm G1, Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of cold and hot water consumption in residential buildings, apartment properties and small commercial installations.
The meter has no moving measuring parts and uses ultrasonic technology for stable long-term flow measurement. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 4.0 m³/h, DN20 connection, 190 mm overall length and G1 thread. The composite housing is rated IP68, while the meter supports multiple installation positions without requiring straight pipe sections before or after the meter.
The QALCOSONIC W1 supports configurable bi-directional flow measurement and includes an internal data logger for hourly, daily and monthly historical values. Alarm functions include leakage, burst, backflow, empty pipe, low battery and communication warnings.
Local parameterisation and archive reading are available through NFC and the optical interface. See the official Axioma Metering QALCOSONIC W1 product information for detailed specifications and communication options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 4.0 m³/h
- DN20, 190 mm, G1 connection
- Integrated LoRaWAN communication
- Internal hourly, daily and monthly data logging
- Configurable bi-directional flow measurement
- Up to 16 years battery life depending on communication settings
- IP68-rated composite housing
Technical specifications
| Product | QALCOSONIC W1 AXI 4m3/h, DN20, 190mm G1, Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 4.0 m³/h |
| Maximum flow Q4 | 5.0 m³/h |
| Nominal diameter | DN20 |
| Overall length | 190 mm |
| Connection | G1 |
| Housing | Composite |
| Nominal pressure | PN16 |
| Dynamic range | R80 / R160 / R250 / R400 / R500 / R800 depending on configuration |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Display | 9-digit multi-line LCD |
| Protection rating | IP68 |
| Battery life | Up to 16 years depending on communication settings |
| Installation position | Horizontal, vertical or diagonal |
Applications
- Residential water metering
- Apartment and property sub-metering
- Commercial water consumption monitoring
- Building utility management
- Remote water meter reading
Installation and connection
Install the meter in a DN20 pipeline with G1 connections and observe the flow direction indicated on the meter body. No straight pipe sections are required before or after the meter. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading.
