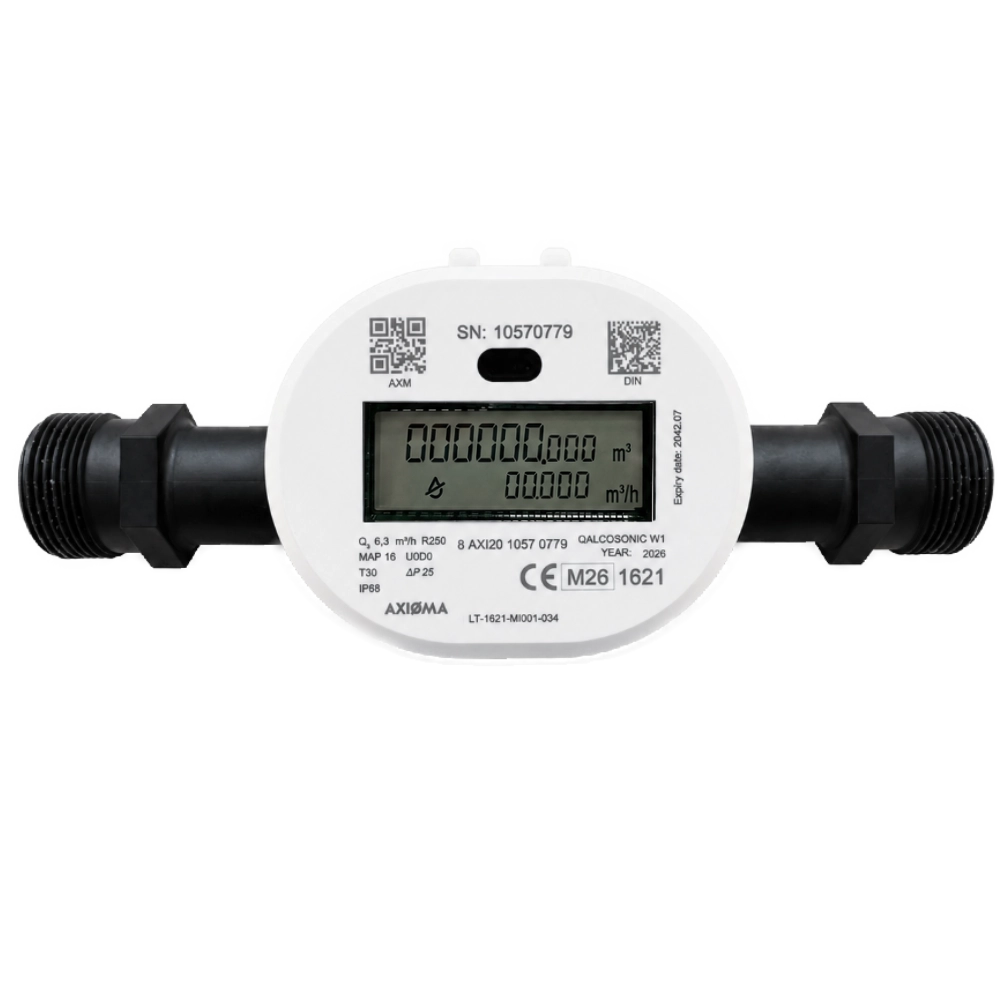

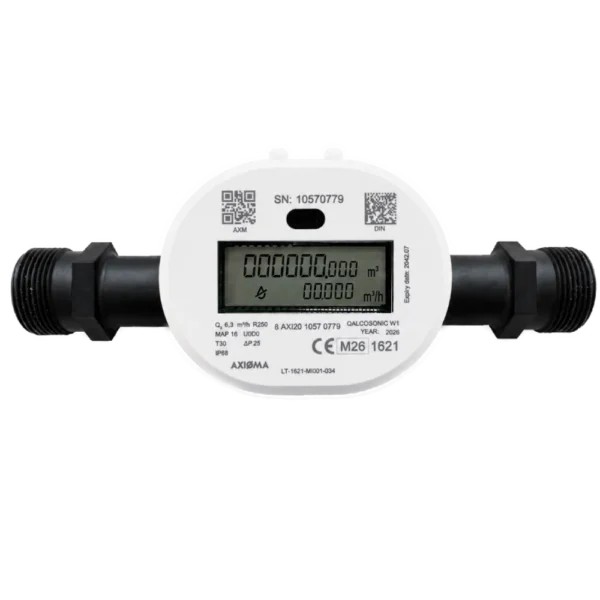

Water meter QALCOSONIC W1 AXI 6,3m3/h, DN25, 260mm G1 1/4, Composite LoRaWAN
DN25 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with Q3 6.3 m³/h, 260 mm G1 1/4 connection and an IP68 composite housing.
- Q3 6.3 m³/h
- DN25, 260 mm, G1 1/4
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for residential and commercial metering
The QALCOSONIC W1 AXI 6,3m3/h, DN25, 260mm G1 1/4, Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of cold and hot water consumption in residential buildings, apartment properties and commercial installations.
The meter has no moving measuring parts and uses ultrasonic technology for stable long-term flow measurement. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 6.3 m³/h, DN25 connection, 260 mm overall length and G1 1/4 thread. The meter has an IP68-rated composite body and can be installed horizontally, vertically or diagonally without straight pipe sections before or after the meter.
The QALCOSONIC W1 includes an internal data logger for hourly, daily and monthly values. It supports bi-directional flow measurement and provides alarm and diagnostic functions for conditions such as leakage, burst, backflow, empty pipe and low battery.
Meter data and parameters can be accessed locally through NFC or the optical interface. See the official Axioma Metering QALCOSONIC W1 DN25-50 product information for detailed specifications and communication options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 6.3 m³/h
- DN25, 260 mm, G1 1/4 connection
- Integrated LoRaWAN communication
- Internal hourly, daily and monthly data logging
- Bi-directional flow measurement
- Up to 16 years battery life depending on communication settings
- IP68-rated composite housing
Technical specifications
| Product | QALCOSONIC W1 AXI 6,3m3/h, DN25, 260mm G1 1/4, Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 6.3 m³/h |
| Maximum flow Q4 | 7.875 m³/h |
| Nominal diameter | DN25 |
| Overall length | 260 mm |
| Connection | G1 1/4 |
| Housing | Composite |
| Nominal pressure | PN16 |
| Dynamic range | R80 / R160 / R250 / R400 / R800 depending on configuration |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Display | 9-digit multi-line LCD |
| Protection rating | IP68 |
| Battery life | Up to 16 years for LoRaWAN/wM-Bus version depending on communication settings |
| Installation position | Horizontal, vertical or diagonal |
Applications
- Residential and apartment water metering
- Commercial water consumption monitoring
- Property and building sub-metering
- Building utility management
- Remote water meter reading
Installation and connection
Install the meter in a DN25 pipeline with G1 1/4 connections and observe the flow direction indicated on the meter body. No straight pipe sections are required before or after the meter. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading.
