Rogowski Coils CG Set of 3 coils, Length 600mm, ø200mm, 20 up to 4000A
Set of three flexible Carlo Gavazzi Rogowski coils for high-current AC measurement from 20 to 4000 A.
The 600 mm coils are suitable for large conductors, busbars and retrofit energy monitoring installations with compatible Carlo Gavazzi energy analyzers.
- Set of 3 coils
- 20 to 4000 A measurement range
- 600 mm coil length
- Approx. 200 mm opening diameter
- Accuracy class 1
Rogowski coil set for high-current AC measurement

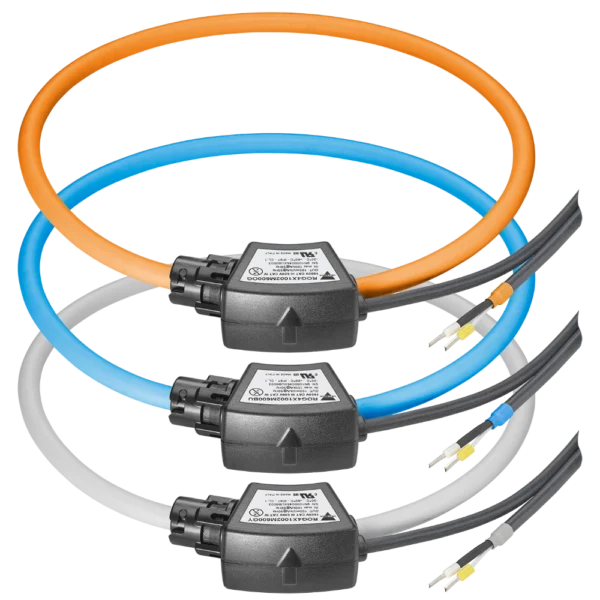

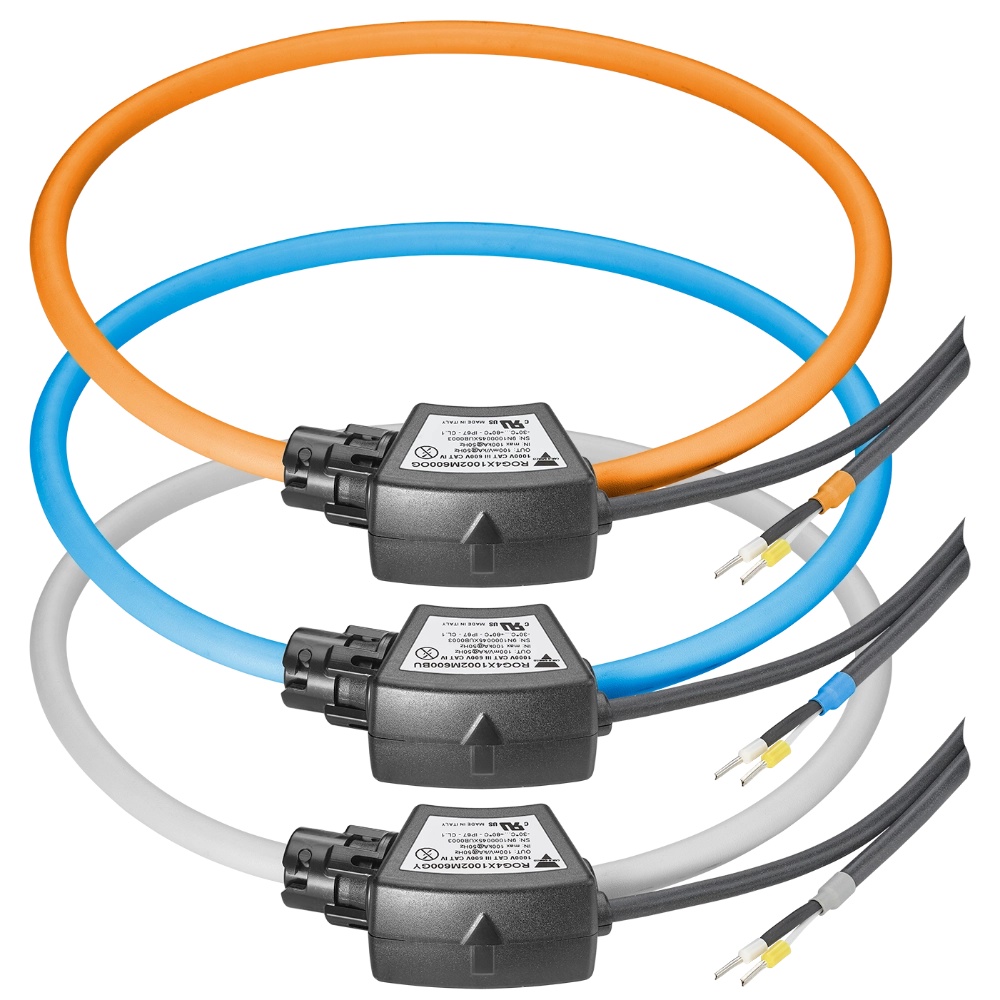

The Rogowski Coils CG Set of 3 coils, Length 600mm, ø200mm, 20 up to 4000A is a three-phase current sensing kit from Carlo Gavazzi for measuring high AC currents in electrical installations. The flexible coils are well suited to retrofit projects, large conductors and busbars where conventional current transformers may be difficult to install.
The set contains three 600 mm Rogowski coils with an opening diameter of approximately 200 mm and a measurement range from 20 to 4000 A. The coils are designed for compatible Carlo Gavazzi energy analyzers including the EM210 and EM50 series.
Flexible current measurement up to 4000 A
Rogowski coil technology enables current measurement without a conventional magnetic core. The flexible construction allows the coil to be opened and installed around an existing conductor without disconnecting the conductor itself.
The coils provide an output of 100 mV/kA at 50 Hz and 120 mV/kA at 60 Hz. Accuracy class 1 makes the set suitable for energy monitoring and electrical load measurement applications.
See the official Carlo Gavazzi ROG4X1002M6003X product information for detailed specifications and compatible measuring equipment.
Product benefits
- Set of three flexible Rogowski coils
- Current measurement from 20 to 4000 A
- 600 mm coil length
- Approximately 200 mm opening diameter
- Suitable for large cables and busbars
- Ideal for retrofit energy monitoring
- Accuracy class 1
- Compatible with selected Carlo Gavazzi energy analyzers
Technical specifications
| Product | Rogowski Coils CG Set of 3 coils, Length 600mm, ø200mm, 20 up to 4000A |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | ROG4X1002M6003X |
| Sensor type | Rogowski coil current sensor |
| Quantity | 3 coils |
| Measurement range | 20 to 4000 A AC |
| Rated primary current | 4000 A |
| Coil length | 600 mm |
| Opening diameter | Approximately 200 mm |
| Output at 50 Hz | 100 mV/kA |
| Output at 60 Hz | 120 mV/kA |
| Accuracy class | Class 1 |
| Compatible equipment | Carlo Gavazzi EM210 and EM50 energy analyzers |
Applications
- Three-phase energy monitoring
- Main distribution boards
- Industrial switchboards
- Large electrical loads and busbars
- Retrofit current and energy measurement
Installation and connection
Install one Rogowski coil around each phase conductor and connect the coils to a compatible Carlo Gavazzi energy analyzer. Correct coil orientation and analyzer configuration are required for accurate current and energy measurement. Installation on electrical systems should be carried out by qualified personnel.
Additional information
