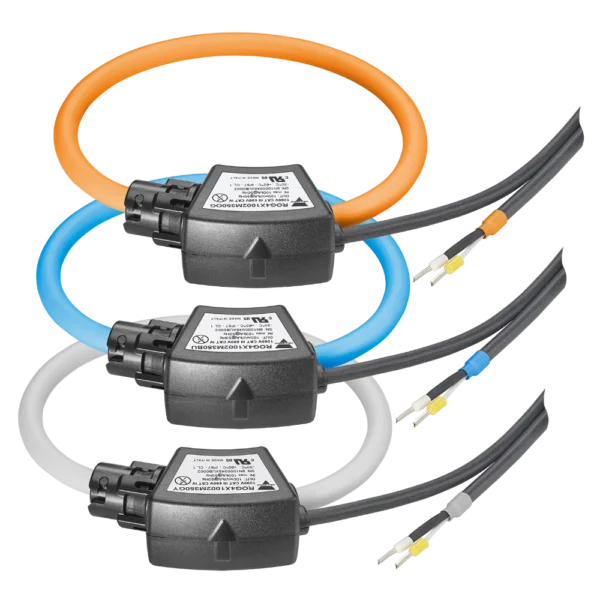

Rogowski Coils CG Set of 3 coils, Length 350mm, ø120mm, 20 up to 4000A
Set of three flexible Carlo Gavazzi Rogowski coils for high-current AC measurement from 20 to 4000 A.
The compact 350 mm coils provide an opening diameter of approximately 120 mm and are suitable for switchboards, cables, busbars and retrofit energy monitoring.
- Set of 3 coils
- 20 to 4000 A measurement range
- 350 mm coil length
- Approx. 120 mm opening diameter
- Flexible retrofit installation
Rogowski coil set for high-current AC measurement
The Rogowski Coils CG Set of 3 coils, Length 350mm, ø120mm, 20 up to 4000A is a three-phase current sensing kit from Carlo Gavazzi for measuring high AC currents in electrical installations. The compact flexible coils are suitable for retrofit installations, switchboards, large conductors and busbars.
The set contains three 350 mm Rogowski coils with an opening diameter of approximately 120 mm and a measurement range from 20 to 4000 A. The coils are designed for use with compatible Carlo Gavazzi energy analyzers.
Flexible current measurement up to 4000 A
Rogowski coil technology enables current measurement without a conventional magnetic core. The flexible construction allows the coils to be installed around existing conductors, making them particularly useful where space is limited or where conventional current transformers are difficult to fit.
The coils provide an output of 100 mV/kA at 50 Hz and are supplied as a matched set of three for three-phase current and energy monitoring.
See the official Carlo Gavazzi product documentation for detailed specifications and compatible measuring equipment.
Product benefits
- Set of three flexible Rogowski coils
- Current measurement from 20 to 4000 A
- 350 mm coil length
- Approximately 120 mm opening diameter
- Compact design for limited installation space
- Suitable for cables and busbars
- Designed for three-phase energy monitoring
- Suitable for retrofit installations
Technical specifications
| Product | Rogowski Coils CG Set of 3 coils, Length 350mm, ø120mm, 20 up to 4000A |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Sensor type | Rogowski coil current sensor |
| Quantity | 3 coils |
| Measurement range | 20 to 4000 A AC |
| Rated primary current | 4000 A |
| Coil length | 350 mm |
| Opening diameter | Approximately 120 mm |
| Output at 50 Hz | 100 mV/kA |
| Installation | Around cable or busbar |
Applications
- Three-phase energy monitoring
- Electrical distribution boards
- Industrial switchboards
- Large electrical loads
- Retrofit current and energy measurement
Installation and connection
Install one Rogowski coil around each phase conductor and connect the coils to a compatible Carlo Gavazzi energy analyzer. Correct coil orientation and analyzer configuration are required for accurate current and energy measurement. Installation on electrical systems should be carried out by qualified personnel.
Additional information
| Manufacturer |
|---|
