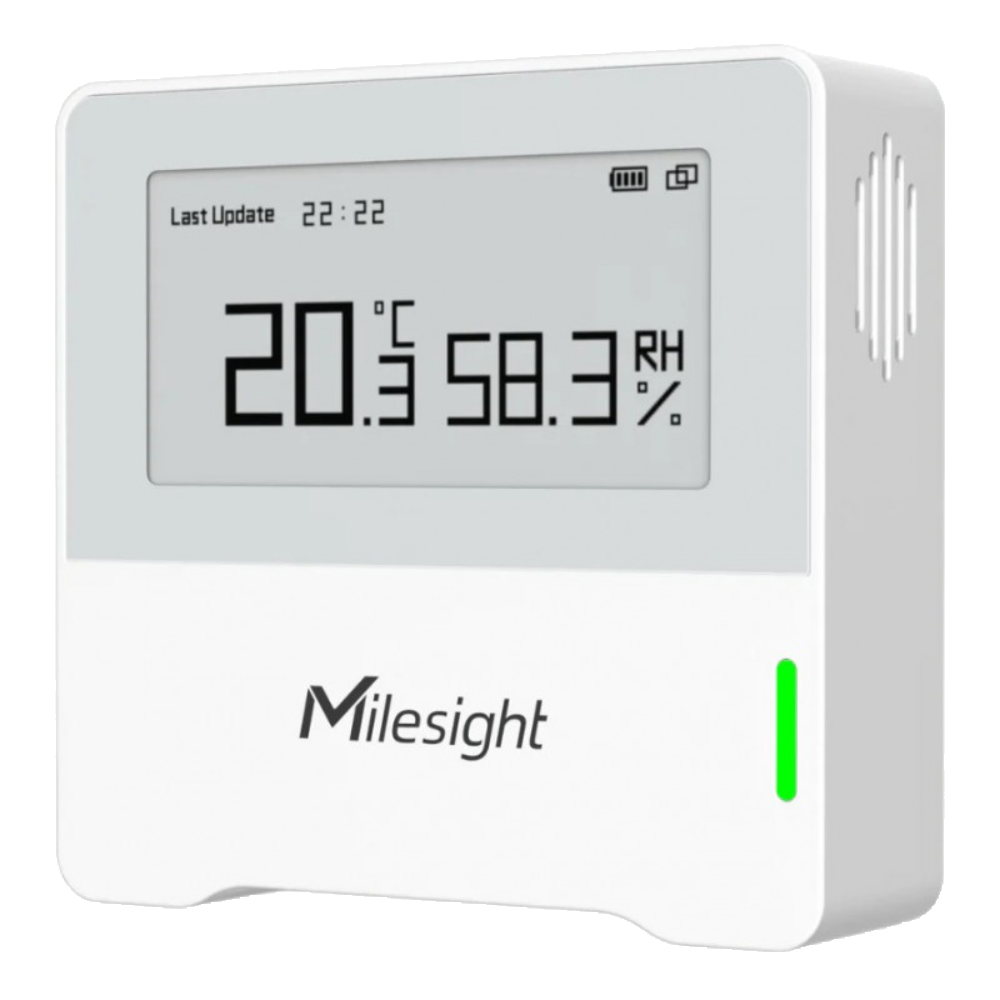

Room sensor AM102 MS Temperature and humidity with display LoRaWAN
LoRaWAN room sensor with temperature and humidity measurement and an integrated E-Ink display.
The Milesight AM102 provides local and remote indoor climate monitoring. It supports NFC configuration, threshold alarms, local data storage and wireless LoRaWAN communication.
- Temperature and humidity measurement
- 2.13-inch E-Ink display
- High-precision Sensirion sensor
- Up to 1,280 stored records
- Replaceable batteries
LoRaWAN temperature and humidity sensor with display
The Room sensor AM102 MS Temperature and humidity with display LoRaWAN is a compact indoor sensor for monitoring temperature and relative humidity in offices, classrooms, shops, museums, hospitals and other controlled environments.
Current measurements are shown on the integrated 2.13-inch E-Ink display and transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform.
Temperature and humidity monitoring
The AM102 measures temperature from -20 to 60 °C and relative humidity from 0 to 100% RH. Configurable threshold alarms can help identify unsuitable indoor climate conditions.
The display provides an immediate local overview, while Smart Screen Mode and scheduled hibernation help reduce power consumption. Historical data can be stored locally and retransmitted after temporary network interruptions.
The sensor is configured through NFC using the Milesight ToolBox app or remotely through LoRaWAN downlink commands. See the official Milesight AM102 product information and documentation for further details.
Product benefits
- Temperature and relative humidity measurement
- 2.13-inch E-Ink display
- High-precision Sensirion sensing element
- Configurable threshold alarms
- LoRaWAN Class A communication
- NFC and remote configuration
- Local storage of up to 1,280 records
- Replaceable batteries with long service life
Technical specifications
| Product | Room sensor AM102 MS Temperature and humidity with display LoRaWAN |
|---|---|
| Model | Milesight AM102 |
| Measured parameters | Temperature and relative humidity |
| Temperature range | -20 to 60 °C |
| Temperature accuracy | Typically ±0.3 °C from -20 to 0 °C and ±0.2 °C from 0 to 60 °C |
| Humidity range | 0 to 100% RH |
| Humidity accuracy | Typically ±2% RH at 25 °C |
| Display | 2.13-inch black and white E-Ink display |
| Communication | LoRaWAN, OTAA or ABP, Class A |
| Configuration | NFC, Milesight ToolBox and LoRaWAN downlink |
| Local storage | Up to 1,280 records |
| Power supply | 2 × 2700 mAh ER14505 replaceable batteries |
| Protection rating | IP30 |
Applications
- Offices and meeting rooms
- Schools and classrooms
- Museums and exhibition areas
- Healthcare and public buildings
- Indoor climate and storage monitoring
Installation and connection
Install the sensor on an indoor wall using the supplied adhesive tape or screws. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote data collection and visualisation.
