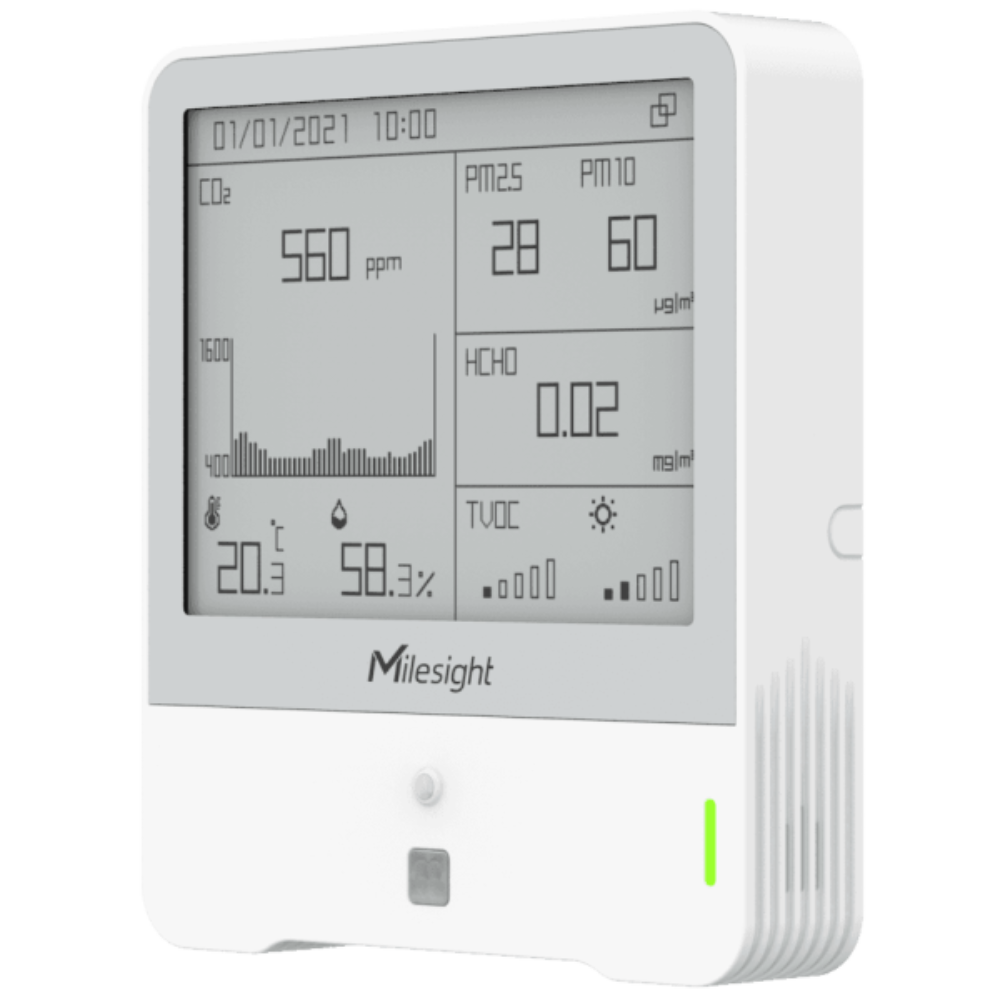

Room sensor AM319 PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles with display LoRaWAN
LoRaWAN indoor air quality sensor with ozone, CO2, TVOC and particle measurement.
The Milesight AM319 PN:O3 monitors temperature, humidity, movement, light, pressure, CO2, TVOC, ozone, PM2.5 and PM10. Measurements are shown on the integrated E-Ink display and transmitted through LoRaWAN.
- O3 range from 0 to 10 ppm
- CO2, TVOC, PM2.5 and PM10 monitoring
- Temperature, humidity, movement and light
- 4.2-inch E-Ink display
- LoRaWAN Class C
LoRaWAN indoor air quality sensor with ozone measurement
The Room sensor AM319 PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles with display LoRaWAN is a multi-sensor device for comprehensive indoor air quality monitoring in offices, schools, healthcare facilities, laboratories and commercial buildings.
It measures temperature, humidity, movement, light, TVOC, barometric pressure, CO2, ozone (O3), PM2.5 and PM10. Current values can be viewed on the integrated 4.2-inch E-Ink display, while measurements are transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform.
Ozone and indoor air quality monitoring
The AM319 PN:O3 includes a replaceable electrochemical ozone sensor with a measuring range from 0 to 10 ppm. Together with CO2, TVOC and particulate matter measurements, it provides a detailed overview of indoor air quality.
The integrated traffic-light indicator and buzzer can provide local warnings when configured pollutant thresholds are exceeded. Movement is detected using PIR technology, while the built-in light sensor and barometric pressure sensor provide additional environmental data.
The device supports NFC, USB-C and LoRaWAN configuration as well as local data storage and retransmission. See the official Milesight AM319 product information and documentation for detailed specifications.
Product benefits
- Ozone measurement from 0 to 10 ppm
- Measures temperature, humidity, movement and light
- CO2, TVOC, PM2.5 and PM10 monitoring
- Barometric pressure measurement
- 4.2-inch E-Ink display
- Traffic-light indicator and built-in buzzer
- LoRaWAN Class C communication
- Local data storage and retransmission
Technical specifications
| Product | Room sensor AM319 PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles with display LoRaWAN |
|---|---|
| Model | Milesight AM319 PN:O3 |
| Measured parameters | Temperature, humidity, movement, light, TVOC, barometric pressure, CO2, O3, PM2.5 and PM10 |
| O3 range | 0 to 10 ppm |
| O3 accuracy | ±5% FS |
| Temperature range | -20 to 60 °C |
| Humidity range | 0 to 100% RH |
| CO2 range | 400 to 2,000 ppm |
| Particle range | 0 to 1,000 µg/m³ |
| Movement detection | PIR, maximum 5 m |
| Light range | 0 to 60,000 lux, reported as 6 levels |
| Display | 4.2-inch E-Ink display |
| Communication | LoRaWAN, OTAA or ABP, Class C |
| Power supply | 5 V / 1 A via USB-C |
| Protection rating | IP30 |
Applications
- Offices and commercial buildings
- Schools and classrooms
- Healthcare facilities
- Laboratories and technical rooms
- Indoor air quality and ventilation monitoring
Installation and connection
The sensor is powered through USB-C and installed on a wall in the monitored area. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote data collection and visualisation.
