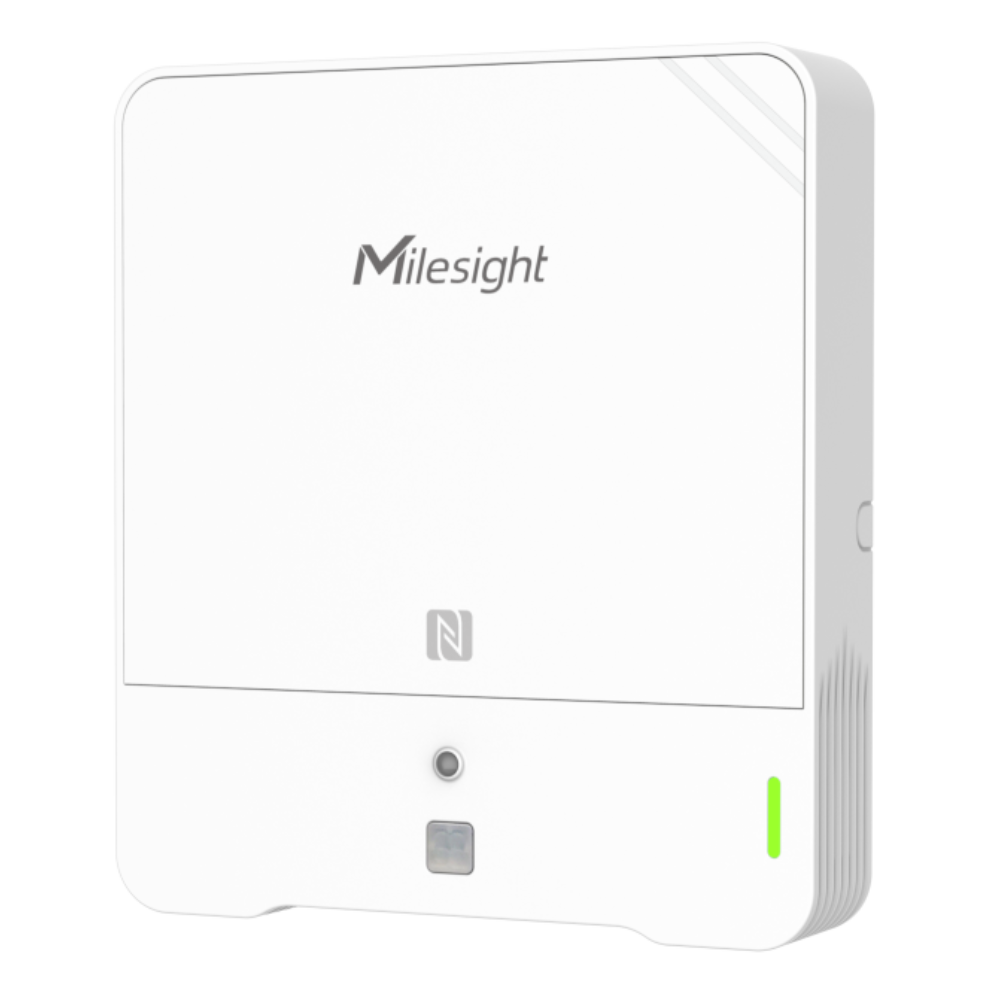

Room sensor AM319L PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles without display LoRaWAN
LoRaWAN indoor air quality sensor without display for ozone, CO2, TVOC and particle monitoring.
The Milesight AM319L PN:O3 measures temperature, humidity, movement, light, pressure, CO2, TVOC, ozone, PM2.5 and PM10. It provides local alarm indication and transmits measurements through LoRaWAN.
- O3 monitoring
- CO2, TVOC, PM2.5 and PM10
- Temperature, humidity, movement and light
- Traffic-light indicator and buzzer
- Without E-Ink display
LoRaWAN indoor air quality sensor with ozone measurement without display
The Room sensor AM319L PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles without display LoRaWAN is a multi-sensor device for comprehensive indoor air quality monitoring without an E-Ink screen.
It measures temperature, humidity, movement, light, TVOC, barometric pressure, CO2, ozone (O3), PM2.5 and PM10. Measurements are transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform for visualisation, alarms and historical analysis.
Ozone and indoor air quality monitoring
The AM319L PN:O3 combines ozone monitoring with CO2, TVOC and particulate matter measurements, providing a broad overview of indoor air quality and environmental conditions.
The integrated traffic-light indicator and buzzer can provide local warnings when configured pollutant thresholds are exceeded. PIR movement detection, light measurement and barometric pressure monitoring provide additional data for building and indoor climate applications.
The sensor supports NFC configuration, local historical data storage and retransmission after temporary network interruptions. See the official Milesight AM300 series product information and documentation for detailed configuration information.
Product benefits
- Ozone monitoring combined with indoor air quality sensing
- CO2, TVOC, PM2.5 and PM10 measurement
- Temperature, humidity, movement and light sensing
- Barometric pressure measurement
- Compact version without E-Ink display
- Traffic-light indicator and built-in buzzer
- LoRaWAN communication
- Local data storage and retransmission
Technical specifications
| Product | Room sensor AM319L PN:O3 MS Temperature, Humidity, Movement, Light, TVOC, ATM, CO2, O3 & Particles without display LoRaWAN |
|---|---|
| Model | Milesight AM319L PN:O3 |
| Measured parameters | Temperature, humidity, movement, light, TVOC, barometric pressure, CO2, O3, PM2.5 and PM10 |
| O3 range | 0 to 10 ppm |
| O3 accuracy | ±5% FS |
| Temperature range | -20 to 60 °C |
| Humidity range | 0 to 100% RH |
| CO2 range | 400 to 2,000 ppm |
| Particle range | 0 to 1,000 µg/m³ |
| Movement detection | PIR, maximum 5 m |
| Light range | 0 to 60,000 lux, reported as 6 levels |
| Display | Without display |
| Communication | LoRaWAN |
| Power supply | USB Type-C |
| Protection rating | IP30 |
Applications
- Offices and commercial buildings
- Schools and classrooms
- Healthcare facilities
- Laboratories and technical rooms
- Indoor air quality and ventilation monitoring
Installation and connection
Install the sensor on a wall in the monitored area and provide USB Type-C power. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote data collection and visualisation.
