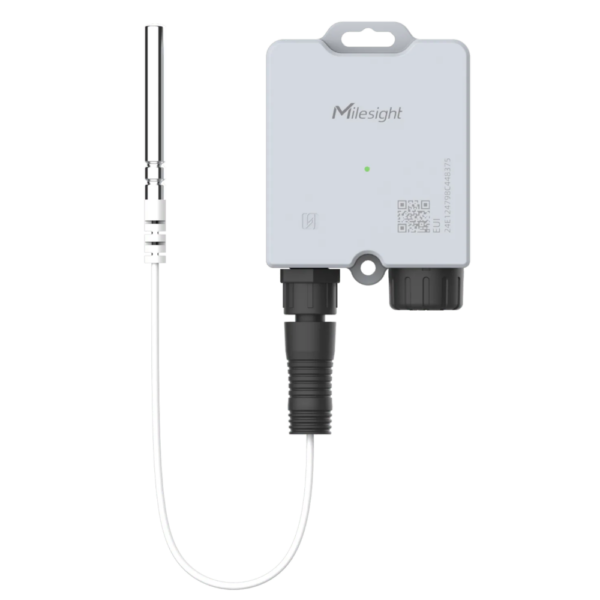

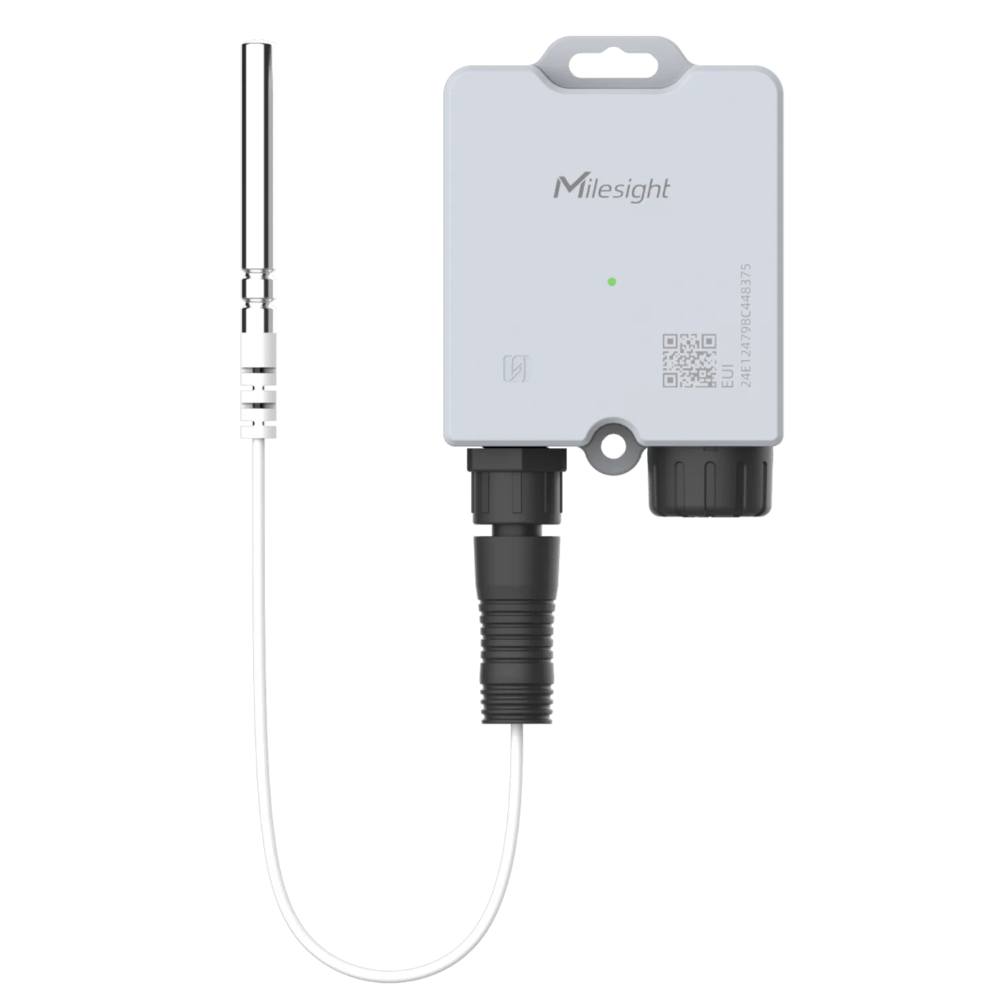

Room sensor External Temperature Sensor MS TS201 LoRaWAN
LoRaWAN external temperature sensor for reliable monitoring of cold rooms, refrigeration systems and temperature-sensitive storage.
The Milesight MS TS201 uses a detachable external probe to measure temperature at the required monitoring point. Readings are transmitted wirelessly through LoRaWAN to a compatible gateway and monitoring platform.
- Detachable external temperature probe
- Wireless LoRaWAN communication
- IP67-rated enclosure
- Configuration via NFC
- Local data storage and retransmission
LoRaWAN external temperature sensor for remote monitoring
The Room sensor External Temperature Sensor MS TS201 LoRaWAN is a compact sensor for monitoring cold rooms, refrigerators, freezers and other temperature-sensitive environments.
A detachable external probe measures temperature at the required point, while readings are transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform.
External temperature measurement
The temperature version uses a detachable DS18B20 probe with a measuring range from -40 to 125 °C and a resolution of 0.1 °C. The probe can be positioned inside a refrigerator, freezer or cabinet while the main unit remains accessible.
The sensor is configured through NFC and the Milesight ToolBox app. Configurable thresholds support alarms when the measured temperature moves outside the permitted range.
See the official Milesight TS201 product documentation for detailed specifications and accessories.
Product benefits
- External measurement from -40 to 125 °C
- Detachable DS18B20 temperature probe
- Wireless LoRaWAN communication
- NFC configuration with Milesight ToolBox
- Local storage of up to 4,000 records
- Data retransmission after network interruptions
- Configurable temperature alarms
- IP67-rated enclosure
Technical specifications
| Model | Milesight TS201 |
|---|---|
| Probe type | Detachable DS18B20 temperature probe |
| Measuring range | -40 to 125 °C |
| Resolution | 0.1 °C |
| Communication | LoRaWAN and Milesight D2D |
| Configuration | NFC and Milesight ToolBox |
| Local storage | Up to 4,000 records |
| Protection rating | IP67 |
Applications
- Cold rooms, refrigerators and freezers
- Food and pharmaceutical storage
- Laboratories and healthcare facilities
- Warehouses and cold-chain applications
- Technical cabinets and equipment
Installation and connection
Install the main unit where LoRaWAN coverage is available and position the external probe at the required measuring point. A compatible LoRaWAN gateway, network server and monitoring platform are required.
