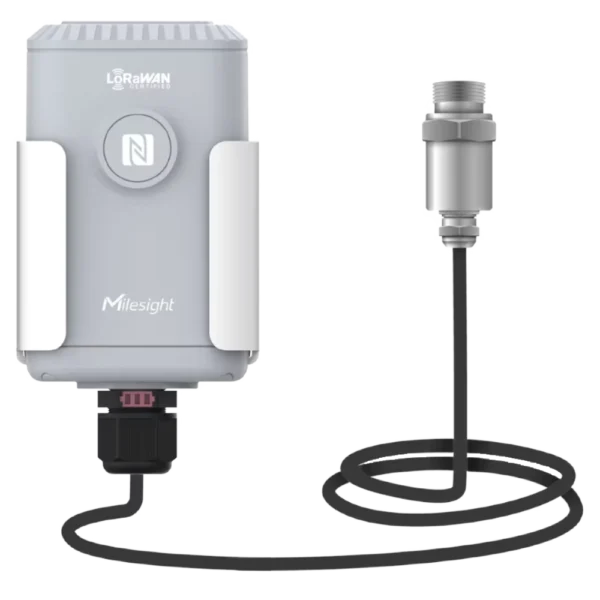

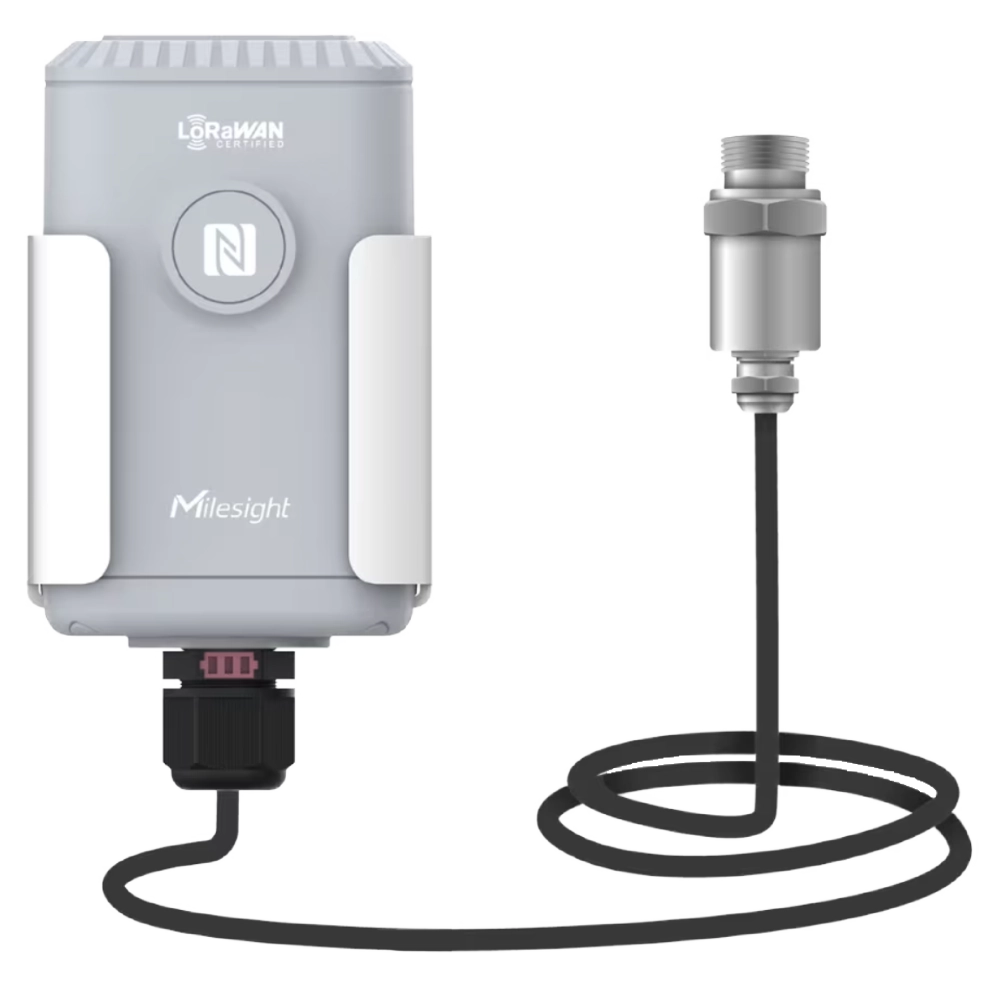

Sensor EM500-PP-868M MS Pipe Pressure Sensor LoRaWAN
EU868 LoRaWAN pipe pressure sensor for liquids, gases, tanks and industrial piping systems.
The Milesight EM500-PP measures pressure from 0 to 16 bar and transmits the data wirelessly through LoRaWAN. It supports threshold alarms, local storage and NFC configuration.
- 0 to 16 bar measuring range
- ±0.5% FS accuracy
- G1/2 male connection
- EU868 LoRaWAN
- Up to 10 years battery life
LoRaWAN pipe pressure sensor for liquid and gas systems
The Sensor EM500-PP-868M MS Pipe Pressure Sensor LoRaWAN is an industrial wireless pressure sensor designed for monitoring pressure in pipes, tanks and process systems. The 868 MHz version is suitable for EU868 LoRaWAN networks and can be used with both liquid and gas applications.
Pressure measurements are transmitted through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform for remote visualisation, alarms and historical analysis.
Pipe pressure monitoring
The EM500-PP measures vented gauge pressure from 0 to 1,600 kPa (16 bar) with an accuracy of ±0.5% full scale and a resolution of 1 kPa. The stainless-steel 316L pressure sensor uses a G1/2 male process connection and is designed to withstand shock, vibration and corrosive environments.
The device stores up to 1,000 historical records locally and supports data retransmission, threshold alarms and Milesight D2D functionality. Configuration is available through NFC, USB-C or LoRaWAN downlink.
See the official Milesight EM500-PP product information and documentation for detailed specifications and configuration guidance.
Product benefits
- 0 to 16 bar pipe pressure measurement
- ±0.5% FS measurement accuracy
- Suitable for liquids and gases
- G1/2 male process connection
- EU868 LoRaWAN communication
- Local storage of up to 1,000 records
- NFC, USB-C and remote configuration
- Long-life replaceable battery
Technical specifications
| Product | Sensor EM500-PP-868M MS Pipe Pressure Sensor LoRaWAN |
|---|---|
| Manufacturer | Milesight |
| LoRaWAN frequency | EU868 |
| Pressure type | Vented gauge pressure |
| Measurement range | 0 to 1,600 kPa / 0 to 16 bar |
| Accuracy | ±0.5% FS |
| Resolution | 1 kPa / 0.01 bar |
| Overload | 150% FS |
| Process connection | G1/2 male |
| Sensor material | Stainless steel 316L |
| Cable length | 1.5 m |
| Communication | LoRaWAN, OTAA or ABP, Class A |
| Local storage | Up to 1,000 records |
| Power supply | 1 × 19,000 mAh ER34615 Li-SOCl2 battery |
| Battery life | Up to 10 years under specified test conditions |
| Protection rating | IP67 transmitter / IP65 pressure sensor |
Applications
- Water and heating systems
- Pipe and tank pressure monitoring
- Pump monitoring
- Oil and gas installations
- Industrial process monitoring
Installation and connection
Install the pressure sensor using the G1/2 male process connection and mount the transmitter on a wall, pole or DIN rail. A compatible EU868 LoRaWAN gateway, network server and monitoring platform are required for remote data collection.
