Energy meter SensoStar 10m3 200mm DN40 TempSensor Ø5mm LoRaWAN

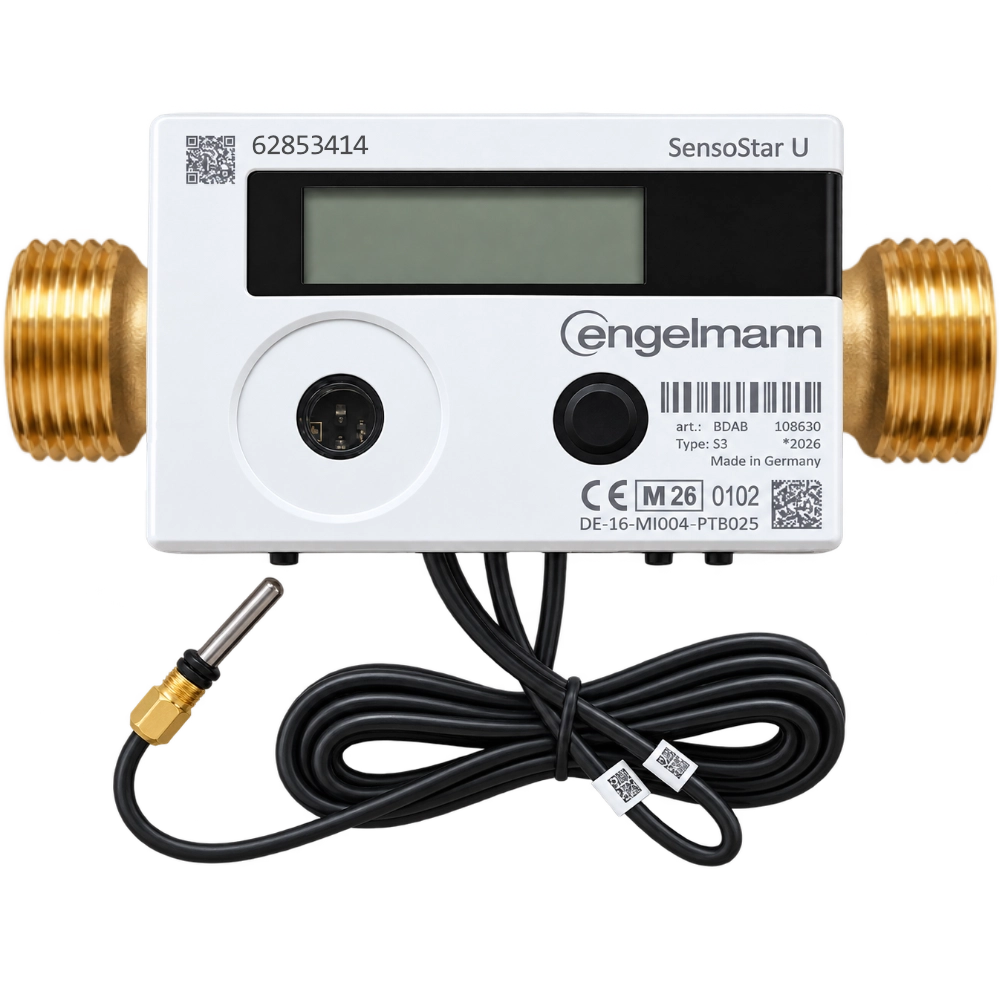

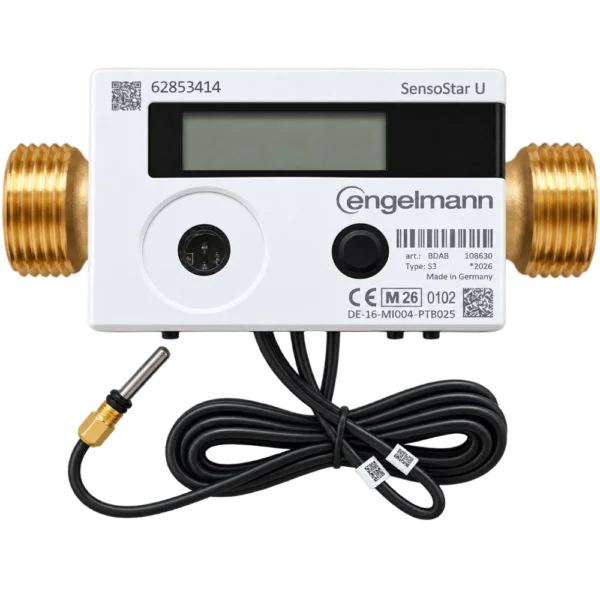

Engelmann SensoStar ultrasonic heat meter with 10 m³/h nominal flow, DN40 connection and LoRaWAN communication.
This 200 mm version uses Ø5 mm Pt1000 temperature sensors and is designed for thermal energy measurement and automated remote meter reading in larger installations.
- Nominal flow: 10 m³/h
- DN40 / G2B connection
- 200 mm installation length
- Ø5 mm Pt1000 temperature sensors
- LoRaWAN communication
Ultrasonic heat meter with LoRaWAN communication
The SensoStar 10m3 200mm DN40 TempSensor Ø5mm LoRaWAN is an Engelmann ultrasonic thermal energy meter designed for heat and cooling energy measurement in larger commercial, industrial and district energy installations. This configuration has a nominal flow rate of 10 m³/h, DN40 nominal diameter and a 200 mm installation length.
The meter uses ultrasonic time-of-flight measurement and can transmit measurement data through LoRaWAN to a compatible LoRaWAN gateway, network server and energy-management or billing platform.
10 m³/h DN40 thermal energy measurement
This SensoStar U configuration combines a qp 10 m³/h ultrasonic flow sensor with DN40 nominal diameter, G2B connection and 200 mm installation length. The flow sensor has no moving mechanical measuring parts and is designed for flexible installation in heating and cooling systems.
The meter uses Pt1000 temperature sensors and supports Ø5 mm probes. Thermal energy is calculated from the measured flow together with the temperature difference between the supply and return circuits.
The SensoStar platform supports LoRaWAN as an optional communication interface. The meter also provides an LCD display, optical interface and internal historical data storage for local commissioning and meter reading.
See the official Engelmann SensoStar U / UC datasheet for detailed specifications, communication options and installation requirements.
Product benefits
- Ultrasonic thermal energy measurement
- Nominal flow rate of 10 m³/h
- DN40 / G2B connection
- 200 mm installation length
- Ø5 mm Pt1000 temperature sensors
- LoRaWAN communication for remote meter reading
- No moving mechanical measuring parts
- Suitable for larger heating and cooling installations
Technical specifications
| Product | SensoStar 10m3 200mm DN40 TempSensor Ø5mm LoRaWAN |
|---|---|
| Manufacturer | Engelmann Sensor GmbH |
| Product family | SensoStar U |
| Meter type | Ultrasonic thermal energy meter |
| Nominal flow rate qp | 10 m³/h |
| Maximum flow rate qs | 20 m³/h |
| Nominal diameter | DN40 |
| Installation length | 200 mm |
| Connection | G2B |
| Temperature sensor | Pt1000 |
| Temperature sensor diameter | Ø5 mm |
| Flow measurement | Ultrasonic time-of-flight |
| Nominal pressure | PN16 |
| Dynamic range qi/qp | 1:100 |
| Communication | LoRaWAN |
| Application | Heating and cooling energy measurement |
Applications
- Commercial building energy monitoring
- District heating and cooling metering
- Industrial thermal energy monitoring
- Heating and cooling plant monitoring
- Remote LoRaWAN meter reading
Installation and connection
Install the SensoStar according to the specified flow direction and installation requirements for the heating or cooling circuit. Position the supply and return temperature sensors at the designated measurement points. For remote reading, commission the LoRaWAN communication and connect the meter to a compatible LoRaWAN gateway and network server.
