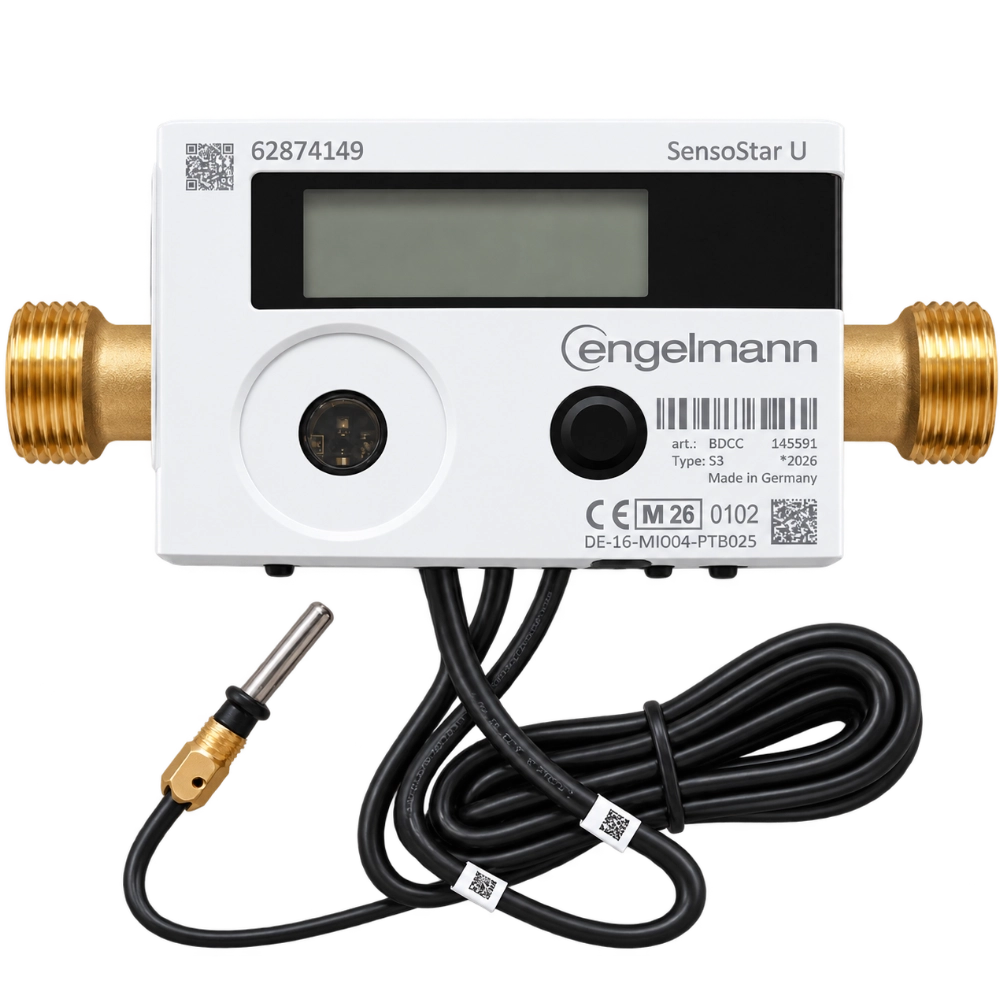

Energy meter SensoStar 2,5m3 130mm DN20 TempSensor Ø5mm LoRaWAN
Engelmann SensoStar ultrasonic heat meter with 2.5 m³/h nominal flow, DN20 connection and LoRaWAN communication.
This compact 130 mm version uses Ø5 mm Pt1000 temperature sensors and is designed for thermal energy measurement and automated remote meter reading.
- Nominal flow: 2.5 m³/h
- DN20 / G1B connection
- 130 mm installation length
- Ø5 mm Pt1000 temperature sensors
- LoRaWAN communication
Ultrasonic heat meter with LoRaWAN communication
The SensoStar 2,5m3 130mm DN20 TempSensor Ø5mm LoRaWAN is an Engelmann ultrasonic thermal energy meter designed for heat and cooling energy measurement in residential, commercial and building energy applications. This configuration has a nominal flow rate of 2.5 m³/h, DN20 nominal diameter and a compact 130 mm installation length.
The meter can transmit measurement data through LoRaWAN to a compatible LoRaWAN gateway, network server and energy-management or billing platform.
2.5 m³/h DN20 thermal energy measurement
This SensoStar U configuration combines a qp 2.5 m³/h flow sensor with a DN20 connection, G1B thread and 130 mm overall length. The ultrasonic measuring principle enables thermal energy measurement without moving mechanical measuring parts in the flow sensor.
The meter uses Pt1000 temperature sensors and supports Ø5 mm probes. Thermal energy is calculated from measured flow together with the temperature difference between the supply and return circuits.
LoRaWAN is available as a wireless communication option for the SensoStar U platform. The meter also provides an optical interface, LCD display and storage of historical measurement values.
See the official Engelmann SensoStar U datasheet for detailed specifications, communication options and installation requirements.
Product benefits
- Ultrasonic thermal energy measurement
- Nominal flow rate of 2.5 m³/h
- DN20 / G1B connection
- Compact 130 mm installation length
- Ø5 mm Pt1000 temperature sensors
- LoRaWAN communication for remote meter reading
- LCD display and optical interface
- Suitable for building energy monitoring and sub-metering
Technical specifications
| Product | SensoStar 2,5m3 130mm DN20 TempSensor Ø5mm LoRaWAN |
|---|---|
| Manufacturer | Engelmann Sensor GmbH |
| Product family | SensoStar U |
| Meter type | Ultrasonic thermal energy meter |
| Nominal flow rate qp | 2.5 m³/h |
| Nominal diameter | DN20 |
| Installation length | 130 mm |
| Connection | G1B |
| Temperature sensor | Pt1000 |
| Temperature sensor diameter | Ø5 mm |
| Flow measurement | Ultrasonic |
| Communication | LoRaWAN |
| Display | LCD |
| Calculator protection | IP65 |
| Power supply | Replaceable 3 V lithium battery |
Applications
- Residential heat metering
- Apartment and tenant sub-metering
- Commercial building energy monitoring
- District heating installations
- Remote LoRaWAN meter reading
Installation and connection
Install the SensoStar according to the specified flow direction and installation requirements for the heating or cooling circuit. Position the supply and return temperature sensors at the designated measurement points. For remote reading, commission the LoRaWAN communication and connect the meter to a compatible LoRaWAN gateway and network server.
