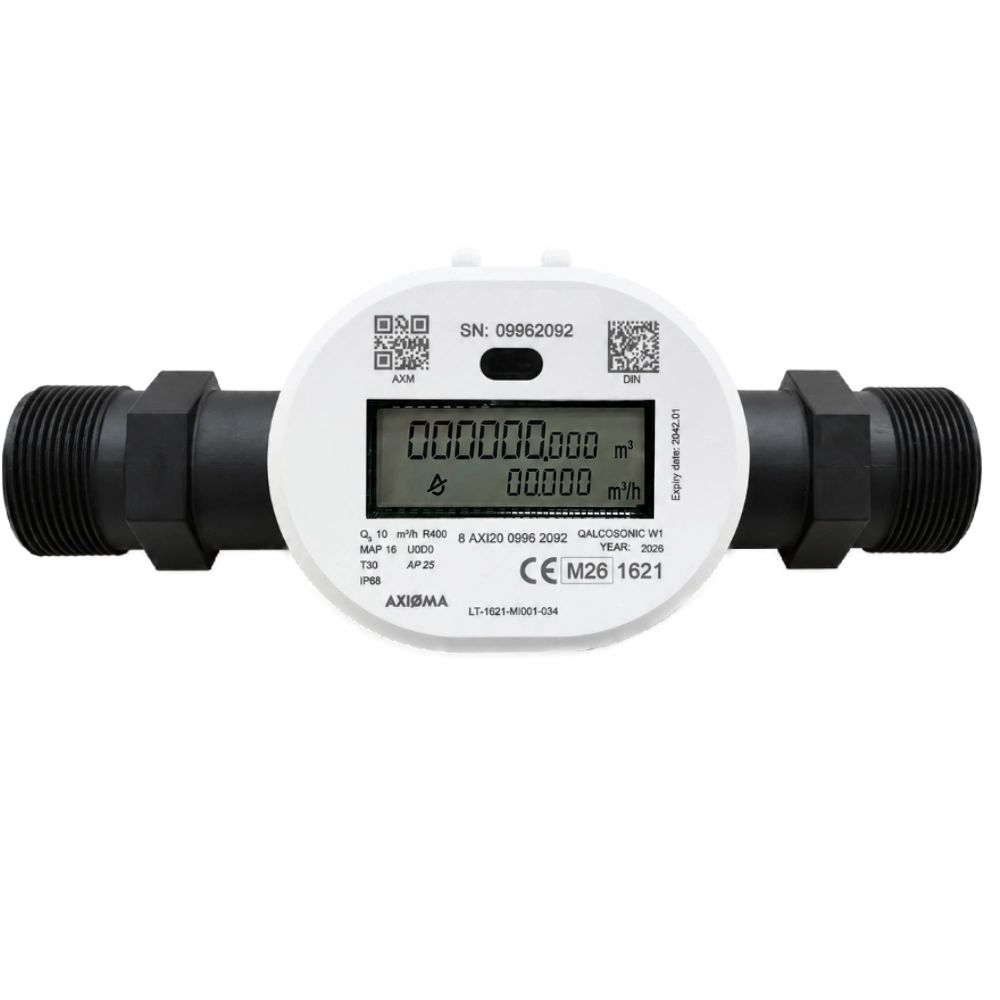

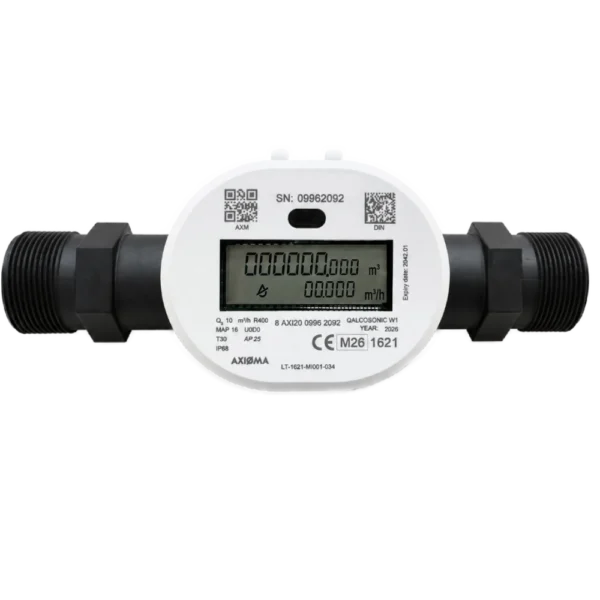

Water meter QALCOSONIC W1 AXI 10m3/h, DN32, 260mm G1 1/2, Composite LoRaWAN
DN32 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with Q3 10 m³/h, 260 mm G1 1/2 connection and an IP68 composite housing.
- Q3 10 m³/h
- DN32, 260 mm, G1 1/2
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for commercial and building applications
The Water meter QALCOSONIC W1 AXI 10m3/h, DN32, 260mm G1 1/2, Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of cold and hot water consumption in apartment buildings, commercial premises and larger property installations.
The meter uses ultrasonic measurement technology with no moving measuring parts. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 10 m³/h, DN32 connection, 260 mm overall length and G1 1/2 thread. The durable composite housing is IP68 rated and the meter can be installed horizontally, vertically or diagonally without straight pipe sections before or after the meter.
The QALCOSONIC W1 supports bi-directional flow measurement and stores hourly, daily and monthly historical values in its internal data logger. Alarm and diagnostic functions include leakage, burst, backflow, empty pipe, low battery and radio communication warnings.
Meter data and parameters can be accessed locally through NFC or the optical interface. See the official Axioma Metering QALCOSONIC W1 DN25-50 product information for detailed specifications and communication options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 10 m³/h
- DN32, 260 mm, G1 1/2 connection
- Integrated LoRaWAN communication
- Bi-directional flow measurement
- Hourly, daily and monthly data logging
- Up to 16 years battery life depending on communication settings
- IP68-rated composite housing
Technical specifications
| Product | Water meter QALCOSONIC W1 AXI 10m3/h, DN32, 260mm G1 1/2, Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 10 m³/h |
| Maximum flow Q4 | 12.5 m³/h |
| Nominal diameter | DN32 |
| Overall length | 260 mm |
| Connection | G1 1/2 |
| Housing | Composite |
| Nominal pressure | PN16 |
| Dynamic range | R80 / R160 / R400 / R500 / R800 depending on configuration |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Display | 9-digit multi-line LCD |
| Protection rating | IP68 |
| Battery life | Up to 16 years for LoRaWAN/wM-Bus version depending on communication settings |
| Installation position | Horizontal, vertical or diagonal |
Applications
- Commercial water metering
- Apartment and property water metering
- Building utility management
- Industrial water consumption monitoring
- Remote water meter reading
Installation and connection
Install the meter in a DN32 pipeline with G1 1/2 connections and observe the flow direction indicated on the meter body. No straight pipe sections are required before or after the meter. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading.
