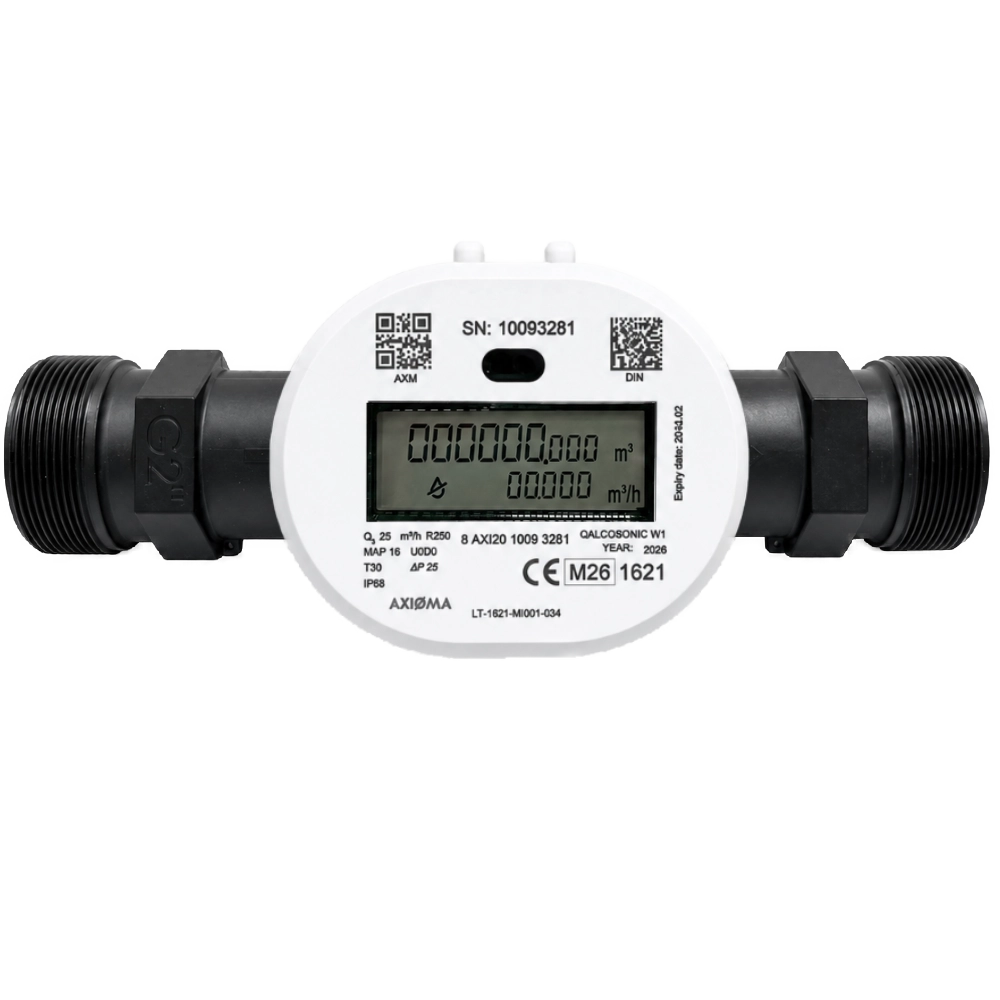

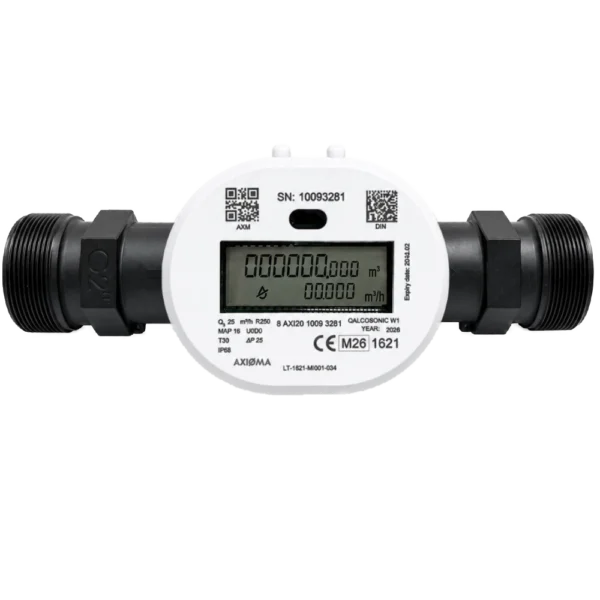

Water meter QALCOSONIC W1 AXI 25m3/h, DN40, 300mm G2, Composite LoRaWAN
DN40 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with Q3 25 m³/h, 300 mm G2 connection and an IP68 composite housing.
- Q3 25 m³/h
- DN40, 300 mm, G2
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for commercial and building applications
The Water meter QALCOSONIC W1 AXI 25m3/h, DN40, 300mm G2, Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of water consumption in commercial buildings, larger residential properties and utility installations.
The meter uses ultrasonic measurement technology with no moving measuring parts. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 25 m³/h, DN40 connection, 300 mm overall length and G2 thread. The composite housing provides a durable solution for long-term water metering, while IP68 protection supports demanding installation environments.
The QALCOSONIC W1 supports bi-directional flow measurement and internal data logging for historical consumption values. Diagnostic and alarm functions can be used to identify conditions such as leakage, reverse flow, empty pipe and low battery.
Local meter access is available through NFC and the optical interface. See the official Axioma Metering QALCOSONIC W1 product information for detailed specifications and communication options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 25 m³/h
- DN40, 300 mm, G2 connection
- Integrated LoRaWAN communication
- Bi-directional flow measurement
- Internal data logging
- NFC and optical local interfaces
- IP68-rated composite housing
Technical specifications
| Product | Water meter QALCOSONIC W1 AXI 25m3/h, DN40, 300mm G2, Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 25 m³/h |
| Nominal diameter | DN40 |
| Overall length | 300 mm |
| Connection | G2 |
| Housing | Composite |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Protection rating | IP68 |
| Flow direction | Bi-directional measurement supported |
| Data logging | Internal historical data logger |
Applications
- Commercial water metering
- Large residential properties
- Building utility management
- Industrial water consumption monitoring
- Remote water meter reading
Installation and connection
Install the meter in a DN40 pipeline with G2 connections and observe the flow direction indicated on the meter body. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading.
