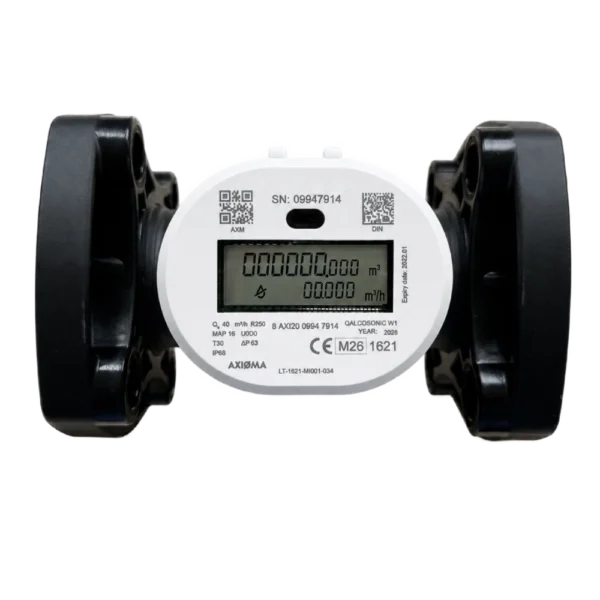

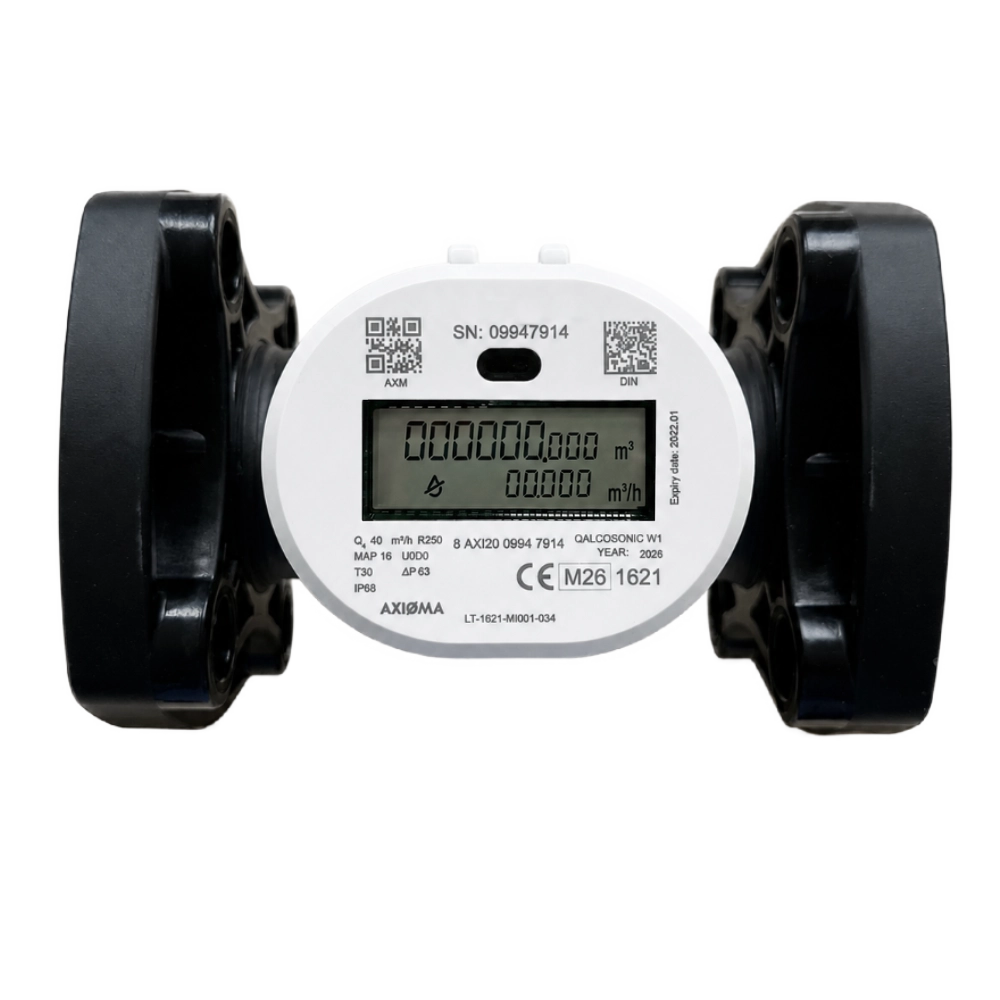

Water meter QALCOSONIC W1 AXI 40m3/h, DN50, 200mm DN50 (Flange), Composite LoRaWAN
DN50 ultrasonic water meter with integrated LoRaWAN communication for remote water consumption monitoring.
The QALCOSONIC W1 AXI provides static ultrasonic measurement with Q3 40 m³/h, 200 mm DN50 flange connection and an IP68 composite housing.
- Q3 40 m³/h
- DN50 flange, 200 mm
- Composite housing
- Integrated LoRaWAN
- IP68 protection
LoRaWAN ultrasonic water meter for commercial and industrial metering
The Water meter QALCOSONIC W1 AXI 40m3/h, DN50, 200mm DN50 (Flange), Composite LoRaWAN is a static ultrasonic water meter designed for accurate measurement of cold and hot water consumption in commercial buildings, larger properties and industrial installations.
The meter uses ultrasonic measurement technology with no moving measuring parts. Integrated LoRaWAN communication enables remote meter reading through a compatible LoRaWAN gateway and monitoring platform.
Ultrasonic water measurement
This configuration has a nominal flow Q3 of 40 m³/h, DN50 flanged connection and 200 mm overall length. The composite housing and IP68 protection make it suitable for demanding water metering applications.
The QALCOSONIC W1 supports bi-directional flow measurement and includes internal logging of hourly, daily and monthly values. Alarm and diagnostic functions include leakage, burst, backflow, empty pipe, low battery and radio communication warnings.
Meter data and parameters can be accessed locally through NFC or the optical interface. See the official Axioma Metering QALCOSONIC W1 product information for detailed specifications and communication options.
Product benefits
- Static ultrasonic measurement with no moving measuring parts
- Nominal flow Q3 40 m³/h
- DN50 flange connection
- 200 mm installation length
- Integrated LoRaWAN communication
- Bi-directional flow measurement
- Internal hourly, daily and monthly data logging
- IP68-rated composite housing
Technical specifications
| Product | Water meter QALCOSONIC W1 AXI 40m3/h, DN50, 200mm DN50 (Flange), Composite LoRaWAN |
|---|---|
| Manufacturer | Axioma Metering |
| Measurement technology | Ultrasonic |
| Nominal flow Q3 | 40 m³/h |
| Maximum flow Q4 | 50 m³/h |
| Nominal diameter | DN50 |
| Overall length | 200 mm |
| Connection | DN50 flange |
| Housing | Composite |
| Dynamic range | R80 / R160 / R250 / R400 / R500 / R800 depending on configuration |
| Communication | LoRaWAN |
| Local interfaces | NFC and optical interface |
| Display | 9-digit multi-line LCD |
| Data logging | Hourly, daily and monthly historical values |
| Protection rating | IP68 |
Applications
- Commercial water metering
- Industrial water consumption monitoring
- Large residential properties
- Building utility management
- Remote water meter reading
Installation and connection
Install the meter in a DN50 flanged pipeline and observe the flow direction indicated on the meter. A compatible LoRaWAN gateway, network server and monitoring platform are required for remote meter reading and data collection.
