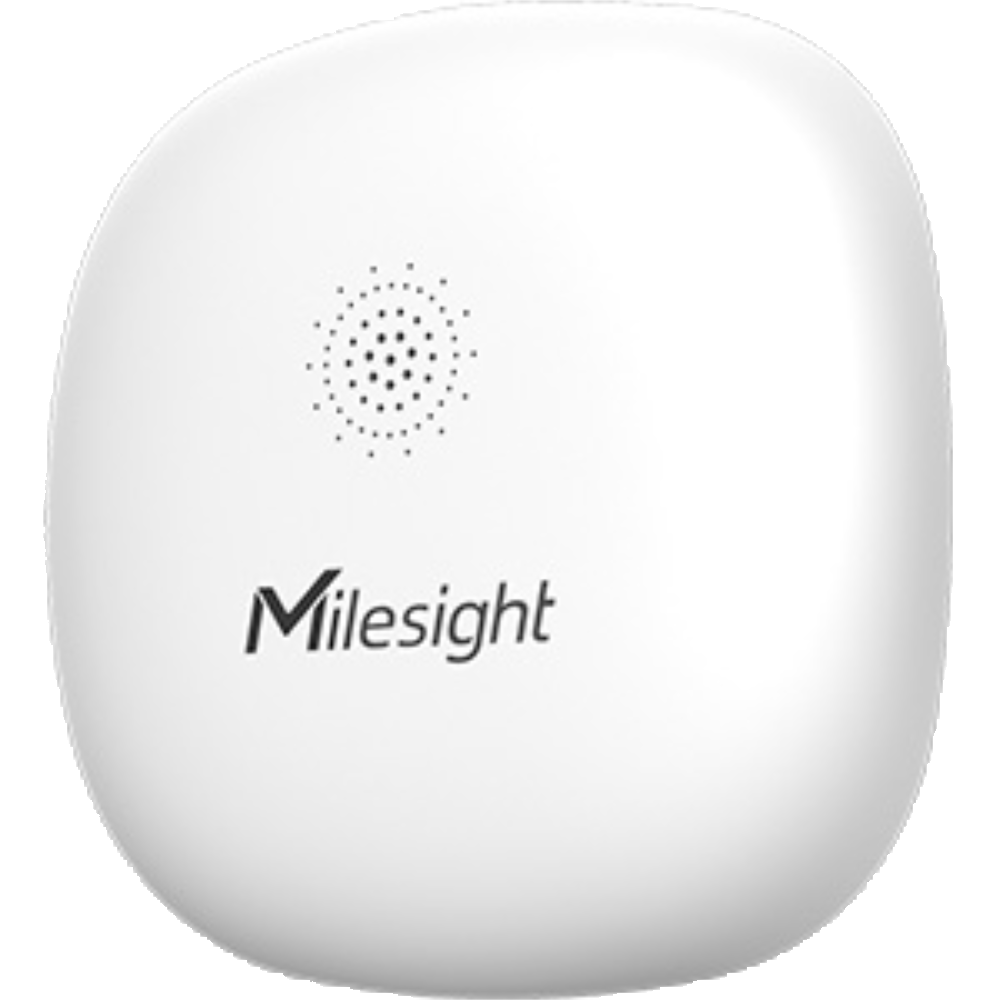

Leak sensor WS303 MS water LoRaWAN
Compact LoRaWAN water leak sensor for fast detection of water and other conductive liquids.
The Milesight WS303 detects leaks from approximately 0.5 mm liquid level and can provide both local buzzer alarms and remote LoRaWAN notifications.
- 0.5 mm leak detection
- Built-in buzzer alarm
- LoRaWAN and Milesight D2D
- NFC configuration
- IP67 enclosure
LoRaWAN water leak sensor for early leakage detection
The WS303 MS water LoRaWAN is a compact wireless water leak sensor designed for early detection of water and other conductive liquids in buildings, technical rooms, server rooms, laboratories, bathrooms and other leak-prone areas.
When liquid reaches the sensor probes, the WS303 can trigger an immediate local buzzer alarm and transmit the leakage status through LoRaWAN to a compatible LoRaWAN gateway and monitoring platform for remote alarms and event logging.
Water leak detection and alarms
The WS303 detects conductive liquids when the liquid level reaches approximately 0.5 mm. Its compact design makes it suitable for installation under equipment, near pipes, beneath sinks or in other locations where water is likely to accumulate first.
The built-in buzzer provides a local alarm, while Milesight D2D can enable direct communication with compatible Milesight controllers for fast local automation without relying on a LoRaWAN gateway.
Configuration and operation
The sensor is configured through NFC using the Milesight ToolBox app or remotely through LoRaWAN downlink commands. It is battery powered, IP67 rated and designed for long-term wireless operation.
See the official Milesight WS303 product information and documentation for detailed specifications and configuration guidance.
Product benefits
- Detects water and other conductive liquids
- Leak detection from approximately 0.5 mm liquid level
- Built-in local buzzer alarm
- Wireless LoRaWAN communication
- Milesight D2D support
- NFC configuration with Milesight ToolBox
- Compact 63 × 63 × 14 mm design
- IP67-rated enclosure
Technical specifications
| Product | WS303 MS water LoRaWAN |
|---|---|
| Manufacturer | Milesight |
| Detection type | Conductive liquid leakage |
| Trigger condition | Liquid level reaches approximately 0.5 mm |
| Communication | LoRaWAN, OTAA or ABP, Class A |
| Additional communication | Milesight D2D |
| Alarm | Built-in buzzer |
| Configuration | NFC via Milesight ToolBox or LoRaWAN downlink |
| Power supply | 1 × 590 mAh CR2450 lithium battery |
| Battery life | Approximately 5.7 years under specified test conditions |
| Operating temperature | -10 to 60 °C |
| Protection rating | IP67 |
| Dimensions | 63 × 63 × 14 mm |
| Installation | Desktop placement or 3M tape mounting |
Applications
- Server rooms and data centres
- Bathrooms and technical rooms
- Laboratories and archives
- Cold storage facilities
- Under sinks, appliances and water installations
Installation and connection
Place the sensor where leaking water is expected to reach first or where liquid can accumulate. For remote monitoring, a compatible LoRaWAN gateway, network server and monitoring platform are required.
Additional information
