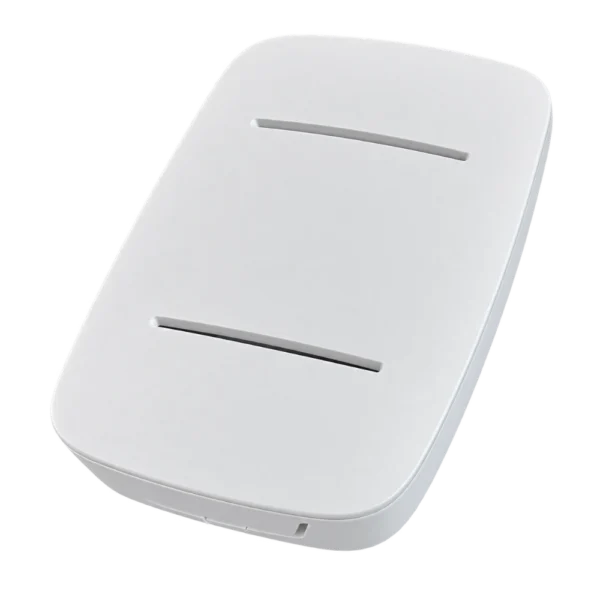

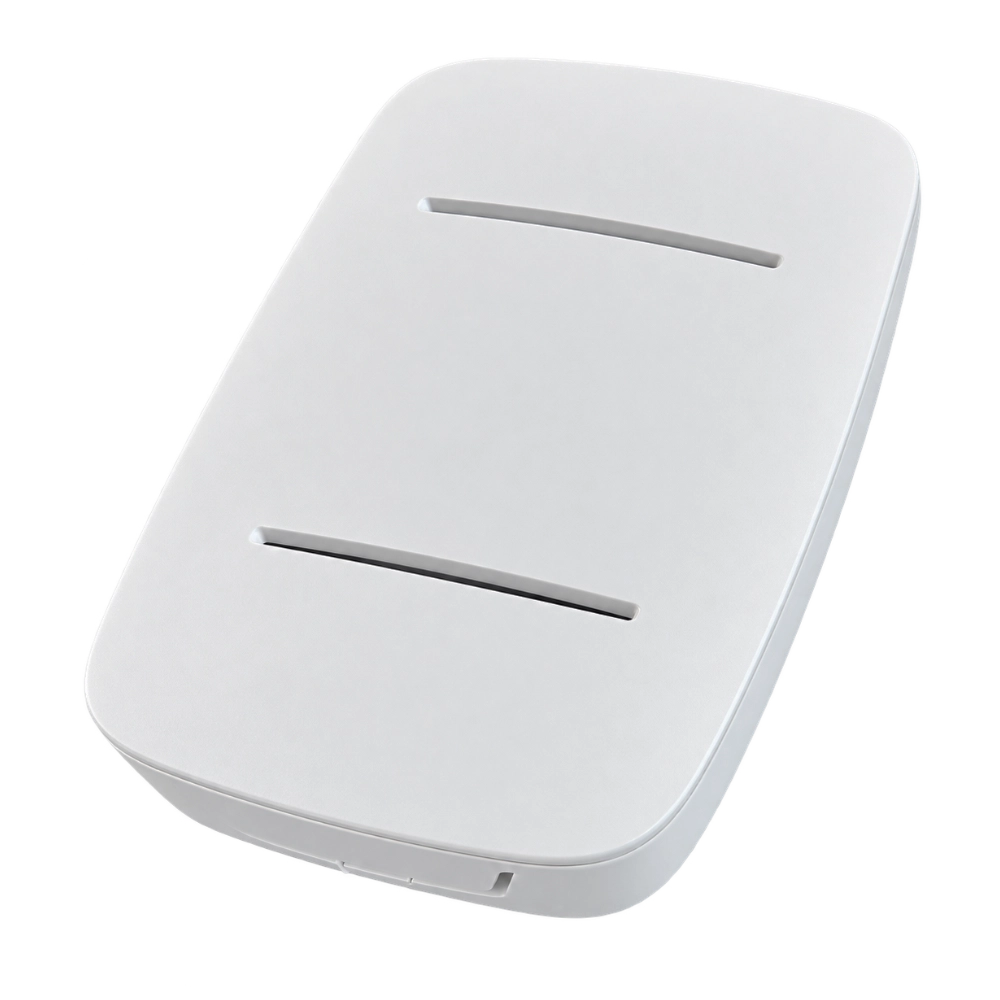

Room sensor OY1210 TP Temperature, humidity and CO2 LoRaWAN
Talkpool LoRaWAN indoor climate sensor for CO2, temperature and relative humidity monitoring.
The OY1210 is designed for smart buildings and can provide rapid additional reporting when CO2 levels increase significantly.
- CO2 measurement
- Temperature and humidity monitoring
- LoRaWAN communication
- Smart CO2 event reporting
- >5 years battery life
LoRaWAN CO2, temperature and humidity sensor for indoor air quality
The OY1210 TP Temperature, humidity and CO2 LoRaWAN is a Talkpool wireless indoor air quality sensor designed to measure carbon dioxide concentration, temperature and relative humidity in buildings. It is suitable for offices, schools, meeting rooms, residential properties and other environments where indoor climate and ventilation performance need to be monitored.
The sensor communicates through LoRaWAN and can transmit measurement data through a compatible LoRaWAN gateway to a network server, building management system or indoor climate monitoring platform.
CO2-based indoor climate monitoring
The OY1210 measures temperature, relative humidity and CO2 concentration. Talkpool designed the sensor for smart-building applications where CO2 data can be used to evaluate indoor air quality and support demand-controlled ventilation and HVAC optimisation.
The device measures indoor climate values every minute and normally transmits data every 20 minutes. If the CO2 concentration increases by more than 100 ppm compared with the previous transmission and the concentration is above 750 ppm, an additional transmission is triggered to provide faster notification of changing indoor conditions.
The CO2 sensor performs automatic background calibration on a weekly basis. Talkpool specifies a battery lifetime of more than five years plus one year of storage, including under demanding radio conditions.
See the official Talkpool OY1210 product information for further information about indoor air quality monitoring, installation and operation.
Product benefits
- Measures CO2, temperature and relative humidity
- LoRaWAN communication for remote monitoring
- Designed for indoor air quality applications
- Automatic additional reporting during rapid CO2 increases
- Weekly automatic CO2 calibration
- Long battery lifetime of more than five years
- Hardware-based security with cryptographic co-processor
- Suitable for HVAC optimisation and smart buildings
Technical specifications
| Product | OY1210 TP Temperature, humidity and CO2 LoRaWAN |
|---|---|
| Manufacturer | Talkpool |
| Model | OY1210 |
| Measurements | CO2, temperature and relative humidity |
| Communication | LoRaWAN |
| Measurement interval | 1 minute |
| Standard transmission interval | 20 minutes |
| CO2 event threshold | Additional transmission when CO2 changes by more than 100 ppm above 750 ppm |
| CO2 calibration | Automatic background calibration, weekly |
| Battery lifetime | >5 years plus 1 year storage under specified conditions |
| Security | Cryptographic co-processor with hardware-based key storage |
| Installation | Wall mounting with screws or double-sided adhesive |
| Recommended mounting height | Approx. 120–180 cm above floor level |
Applications
- Indoor air quality monitoring
- Offices and meeting rooms
- Schools and educational buildings
- Residential properties
- Demand-controlled ventilation
- HVAC and building energy optimisation
Installation and connection
Mount the OY1210 on an indoor wall, typically approximately 120–180 cm above floor level, using screws or suitable double-sided adhesive. Activate the sensor using the integrated button and register it with the LoRaWAN network server. A compatible LoRaWAN gateway is required for remote data collection.
Additional information
