Comm. module CMi4170 ELV Module for Engelmann Sensostar/Sensostar C LoRaWAN
Integrated LoRaWAN communication module for Engelmann SensoStar S3 and S3C heat meters.
The Elvaco CMi4170 enables remote meter reading through an 868 MHz LoRaWAN network and can be configured through NFC using the Elvaco OTC app.
- For SensoStar S3/S3C
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC and downlink configuration
- Up to 10+1 years battery life
LoRaWAN communication module for Engelmann SensoStar/SensoStar C

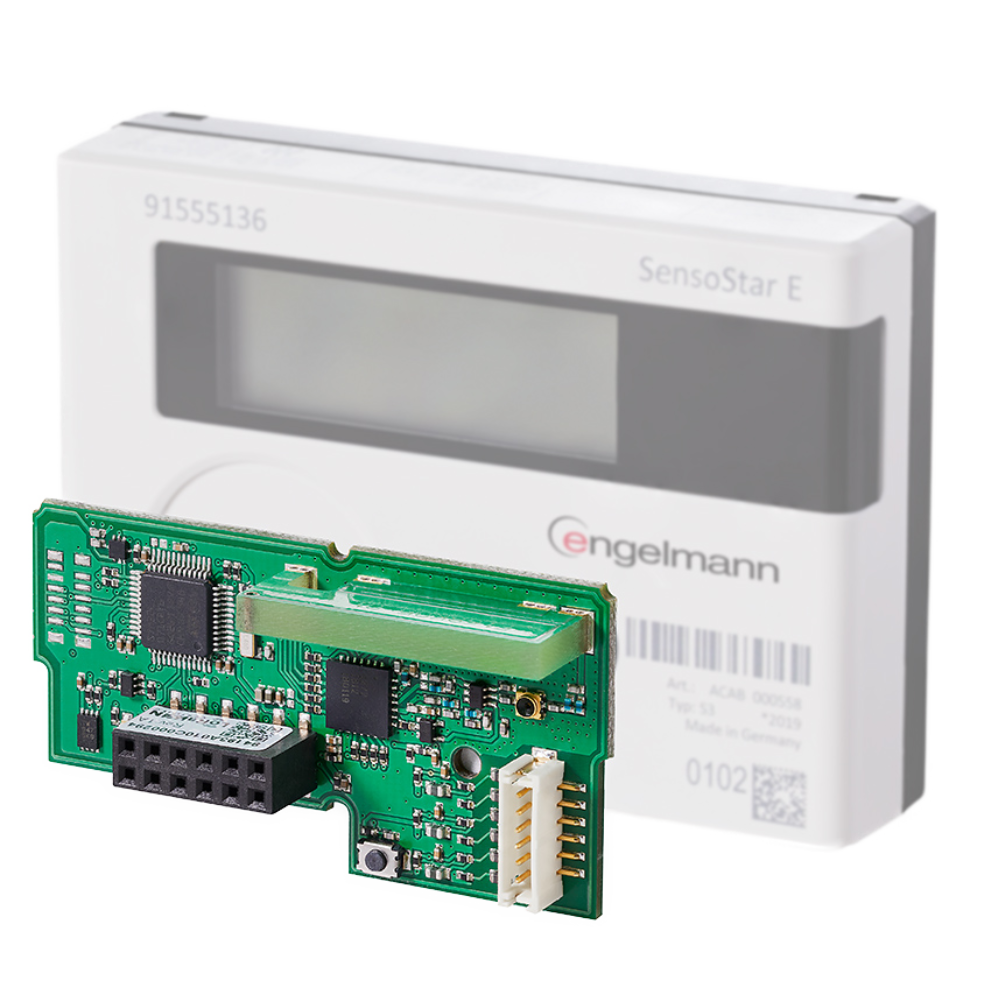

The CMi4170 ELV Module for Engelmann Sensostar/Sensostar C LoRaWAN is an internal Elvaco meter communication module designed to add LoRaWAN connectivity to compatible Engelmann SensoStar heat meters. The module is installed directly inside the meter and transmits meter data wirelessly to a receiving server through a LoRaWAN network.
The module can send meter data through a compatible LoRaWAN gateway to a network server, billing platform or energy-management system.
Integrated LoRaWAN meter communication
The CMi4170 is designed for Engelmann SensoStar S3 and S3C meters and can be retrofitted into already installed meters. It operates as a LoRaWAN Class A device and supports both OTAA and ABP activation.
Configuration is performed through NFC using the Elvaco OTC app, through LoRaWAN downlink or with Engelmann's Device Monitor optical configuration tool. The module includes red and green status LEDs and a multifunction push button for start-up, reboot and switch-off.
The CMi4170 can share the power source of the meter and provides up to 10+1 years of battery life under specified conditions. Elvaco EcoMode can be used to optimise transmission intervals and maximise operating life.
See the official Elvaco CMi4170 product information and documentation for detailed installation, configuration and compatibility information.
Product benefits
- Integrated LoRaWAN communication for Engelmann SensoStar meters
- Designed for SensoStar S3 and S3C
- Suitable for retrofit installation
- 868 MHz LoRaWAN Class A
- OTAA and ABP activation
- NFC configuration through Elvaco OTC
- Remote configuration through LoRaWAN downlink
- Up to 10+1 years battery life under specified conditions
- LoRaWAN Certified
Technical specifications
| Product | CMi4170 ELV Module for Engelmann Sensostar/Sensostar C LoRaWAN |
|---|---|
| Manufacturer | Elvaco |
| Model | CMi4170 |
| Product number | 1100462 |
| Compatible meters | Engelmann SensoStar S3 / S3C |
| Communication | LoRaWAN |
| Frequency | 868 MHz |
| LoRaWAN class | Class A, bi-directional |
| LoRaWAN version | 1.0.2 Rev B |
| Activation | OTAA or ABP |
| Data rate | DR0–DR5 |
| Configuration | Elvaco OTC via NFC, LoRaWAN downlink or Engelmann Device Monitor |
| Supply | Internal meter battery or Engelmann external PSU |
| Nominal voltage | 3.0 VDC |
| Battery life | Up to 10+1 years under specified conditions |
| Dimensions | 29 × 56 × 12 mm |
| Weight | 9 g |
| Operating temperature | +5 to +55 °C |
| Operating humidity | 0–93% RH, non-condensing |
| Installation | Internal module slot in compatible Engelmann meter |
Applications
- Remote heat meter reading
- Building energy monitoring
- District heating metering
- Property and tenant sub-metering
- Retrofit LoRaWAN communication for existing SensoStar meters
Installation and connection
Install the CMi4170 in the module slot of a compatible Engelmann SensoStar S3 or S3C meter and activate the device according to the Elvaco installation instructions. Configure the module through NFC using the Elvaco OTC app or through the supported remote configuration methods. A compatible LoRaWAN gateway and network server are required for remote meter reading.
