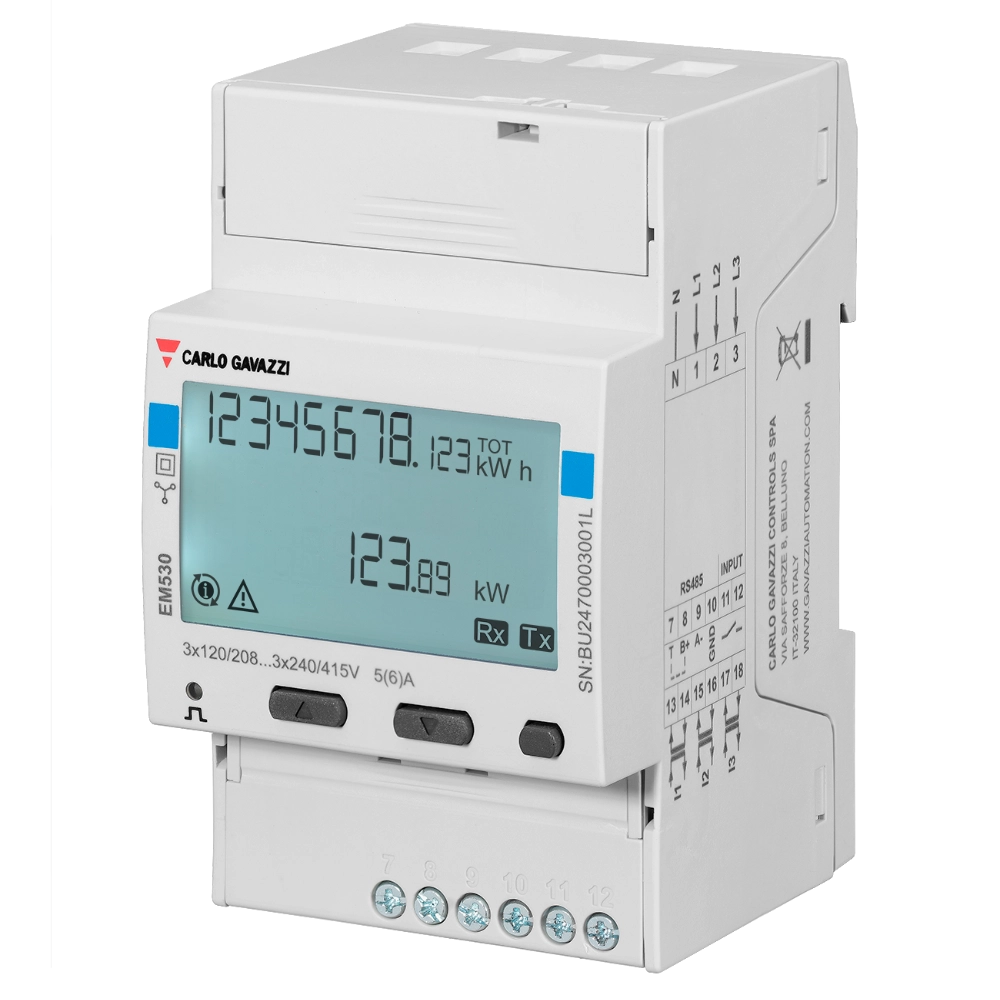

Electrical meter EM530 CG Indirect 3 Phase to Current transformer Puls
Three-phase Carlo Gavazzi MID energy analyzer for external 5 A current transformers with digital pulse output.
The EM530DINAV53XO1PFB is designed for indirect energy measurement in commercial and industrial installations and supports pulse-based integration with data collection systems.
- Three-phase indirect measurement
- 5 A current-transformer input
- Digital pulse output
- MID approved
- DIN rail mounting
Three-phase energy analyzer for 5 A current transformers with pulse output
The EM530DINAV53XO1PFB EM530 CG Indirect 3 Phase to Current transformer Puls is a Carlo Gavazzi three-phase energy analyzer designed for indirect measurement through external current transformers with a 5 A secondary output. It is suitable for energy monitoring, sub-metering and billing-related applications in commercial and industrial electrical installations.
This version uses a digital static output for pulse transmission and is MID approved. It is designed for three-phase systems with 230 V L-N / 400 V L-L nominal voltage and 5 A current-transformer inputs.
Indirect three-phase energy measurement
The EM530 measures electrical energy through external 5 A current transformers, allowing the primary current range to be selected according to the installation. This makes the meter suitable for larger loads where direct-connected meters are not appropriate.
The digital output can be configured for pulse transmission, enabling integration with data loggers, building management systems and other equipment that accepts energy pulses. The meter is DIN-rail mounted and self-powered from the measured voltage circuit.
See the official Carlo Gavazzi EM530DINAV53XO1PFB product information for detailed specifications, installation guidance and certification information.
Product benefits
- Three-phase indirect energy measurement
- Designed for current transformers with 5 A secondary output
- Digital pulse output
- MID approved version
- 230 V L-N / 400 V L-L nominal voltage
- Suitable for consumption and generation measurement
- DIN rail mounting
- Suitable for commercial and industrial sub-metering
Technical specifications
| Product | EM530DINAV53XO1PFB EM530 CG Indirect 3 Phase to Current transformer Puls |
|---|---|
| Manufacturer | Carlo Gavazzi |
| Manufacturer part number | EM530DINAV53XO1PFB |
| Meter type | Three-phase energy analyzer |
| Current connection | External current transformers |
| CT secondary input | 5 A |
| Nominal voltage | 230 V L-N / 400 V L-L |
| Current input | 5 (6) A |
| Output | Digital static output / pulse |
| MID approval | Yes |
| Measurement | Consumption and generation |
| Mounting | DIN rail |
| Power supply | Self-powered |
Applications
- Commercial energy sub-metering
- Industrial energy monitoring
- Electrical distribution boards
- Building energy management
- Pulse-based energy data collection
Installation and connection
Mount the EM530 on a DIN rail and connect the voltage inputs according to the electrical system configuration. Connect one correctly sized 5 A secondary current transformer to each monitored phase and configure the CT ratio in the meter. The pulse output can then be connected to compatible data collection equipment. Installation should be carried out by qualified personnel according to applicable electrical safety requirements.
