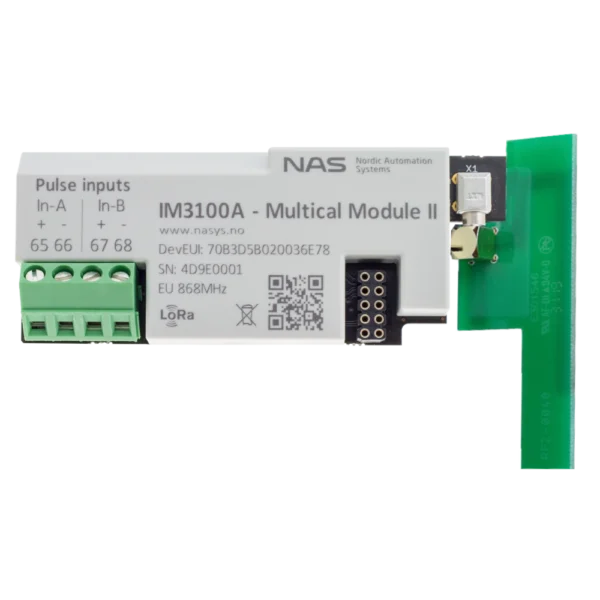

Comm. module IM3100 NAS Module for Kamstrup multical 303/403/603/803 LoRaWAN
NAS IM3100 internal LoRaWAN communication module for compatible Kamstrup MULTICAL heat meters.
The module enables automated remote heat meter reading through LoRaWAN and includes configurable reporting, two pulse inputs and internal or external antenna options.
- LoRaWAN communication
- Internal Kamstrup meter module
- 2 pulse inputs
- Configurable reporting interval
- Internal antenna + MCX connector
LoRaWAN communication module for Kamstrup MULTICAL meters
The IM3100 NAS Module for Kamstrup multical 303/403/603/803 LoRaWAN is an internal Nordic Automation Systems communication module designed to collect heat consumption data from compatible Kamstrup MULTICAL meters and transmit it wirelessly through a LoRaWAN network.
The module is installed directly inside the meter and uses a bidirectional long-range LoRaWAN transceiver for automated meter reading. Data can be transmitted through a compatible LoRaWAN gateway to a network server and energy-management or billing platform.
Integrated LoRaWAN heat meter communication
The IM3100 provides direct access to Kamstrup meter data through the internal Kamstrup data interface. Reporting intervals are configurable, allowing the communication profile to be adapted to the required balance between data frequency and power consumption.
The module includes two pulse input ports, secure LoRaWAN communication, an internal antenna and an MCX connector for an optional external antenna. NAS describes the product as maintenance-free after installation and designed for straightforward integration into compatible MULTICAL meters.
See the official NAS LoRaWAN MULTICAL Module II product information and documentation for detailed configuration, payload and installation information.
Product benefits
- Internal LoRaWAN communication module for Kamstrup MULTICAL meters
- Automatic wireless heat consumption data collection
- Configurable reporting interval
- Two additional pulse input ports
- Secure LoRaWAN communication
- Internal antenna
- MCX connector for optional external antenna
- Easy internal installation
Technical specifications
| Product | IM3100 NAS Module for Kamstrup multical 303/403/603/803 LoRaWAN |
|---|---|
| Manufacturer | Nordic Automation Systems (NAS) |
| Model | IM3100 |
| Product family | LoRaWAN MULTICAL Module II |
| Communication | LoRaWAN |
| Meter interface | Kamstrup internal data port |
| Pulse inputs | 2 |
| Reporting interval | Configurable |
| Antenna | Internal antenna and MCX connector |
| Installation | Internal meter module |
| Dimensions | 90 × 35 × 16.3 mm |
| Available LoRaWAN regions | EU868, AU915, US915, AS923, KR920 and IN865 depending on version |
| Officially documented compatibility | Kamstrup MULTICAL 403 and MULTICAL 603 |
Applications
- Remote heat meter reading
- District heating metering
- Commercial building energy monitoring
- Property and tenant sub-metering
- LoRaWAN-based heat consumption data collection
Installation and connection
Install the IM3100 in the compatible internal module position of the Kamstrup MULTICAL meter and configure the required reporting interval and LoRaWAN parameters. Register the module with the LoRaWAN network server and connect it through a compatible LoRaWAN gateway for remote data collection.
