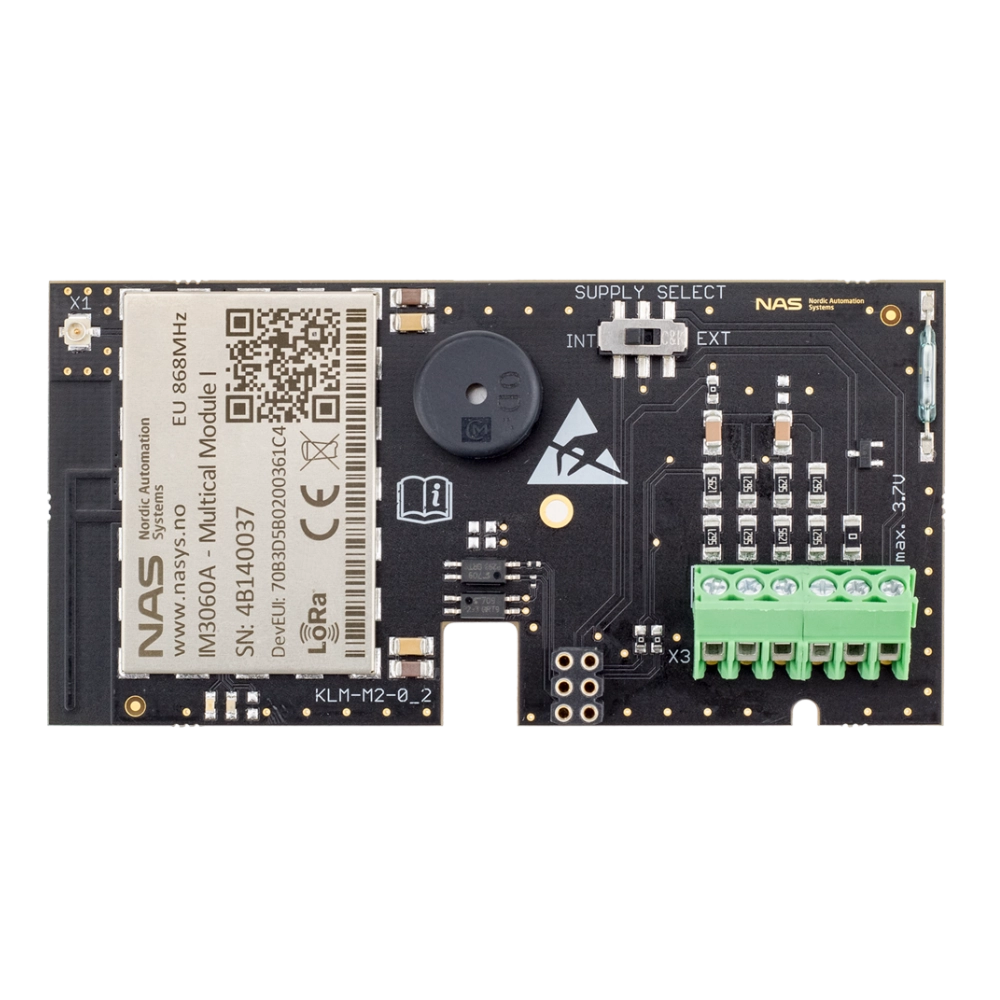

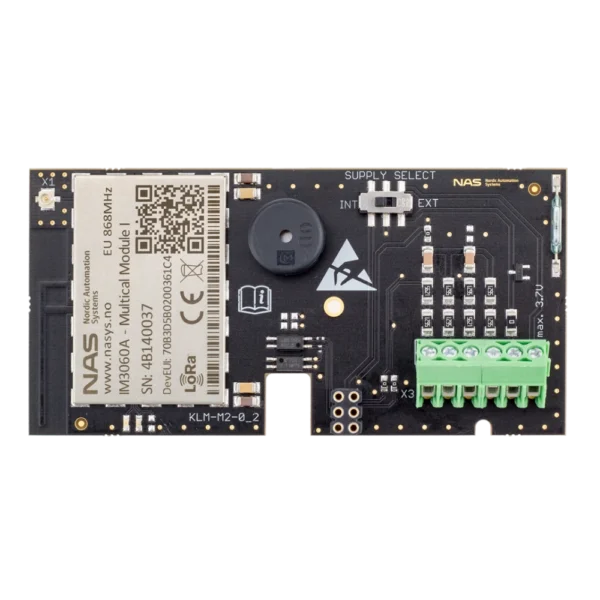

Comm. module IM3060 NAS Module for Kamstrup multical 6X/601/602/6M2 LoRaWAN
NAS internal LoRaWAN communication module for compatible Kamstrup MULTICAL heat meters.
The module enables automated remote heat meter reading and includes configurable reporting, two pulse inputs and internal or external antenna options.
- For MULTICAL 61, 62, 66, 601, 602, 801 and 6M2
- LoRaWAN communication
- 2 pulse inputs
- Configurable reporting interval
- MID certified
LoRaWAN communication module for Kamstrup MULTICAL meters
The NAS Module for Kamstrup multical 6X/601/602/6M2 LoRaWAN is an internal Nordic Automation Systems communication module designed to collect heat consumption data from compatible Kamstrup MULTICAL meters and transmit it automatically through a LoRaWAN network.
The module is installed directly inside the existing meter and communicates through a bidirectional long-range LoRaWAN transceiver. Meter data can be transmitted through a compatible LoRaWAN gateway to a network server and energy-management or billing platform.
Integrated LoRaWAN heat meter communication
The LoRaWAN MULTICAL Module I is designed for Kamstrup MULTICAL 61, 62, 66, 601, 602, 801 and 6M2 meters. The module supports configurable reporting intervals and secure communication, allowing the data transmission profile to be adapted to the application.
Two pulse input ports are available for additional meter inputs. The module also provides a DC output for the Kamstrup module and supports an internal BT antenna together with an MMCX or U.fl connector for an optional external antenna.
The module is MID certified and designed for straightforward internal installation with minimal maintenance after commissioning.
See the official NAS LoRaWAN MULTICAL Module I product information and documentation for detailed compatibility, ordering and payload information.
Product benefits
- Internal LoRaWAN module for compatible Kamstrup MULTICAL meters
- Automatic wireless heat consumption data collection
- Compatible with MULTICAL 61, 62, 66, 601, 602, 801 and 6M2
- Configurable reporting interval
- Two additional pulse input ports
- Secure LoRaWAN communication
- Internal antenna with optional external antenna connection
- MID certified
Technical specifications
| Product | NAS Module for Kamstrup multical 6X/601/602/6M2 LoRaWAN |
|---|---|
| Manufacturer | Nordic Automation Systems (NAS) |
| Product family | LoRaWAN MULTICAL Module I |
| Ordering code | IM3060 |
| Compatible meters | Kamstrup MULTICAL 61, 62, 66, 601, 602, 801 and 6M2 |
| Communication | LoRaWAN |
| Communication type | Bidirectional long-range wireless transmission |
| Pulse inputs | 2 |
| Reporting interval | Configurable |
| Antenna | Internal BT antenna |
| External antenna connection | MMCX or U.fl |
| Additional output | DC output for Kamstrup module |
| Certification | MID certified |
| Installation | Internal meter module |
Applications
- Remote heat meter reading
- District heating metering
- Commercial building energy monitoring
- Property and tenant sub-metering
- LoRaWAN-based heat consumption data collection
Installation and connection
Install the module in the designated internal module position of a compatible Kamstrup MULTICAL meter and configure the required reporting interval and LoRaWAN parameters. Register the device with the LoRaWAN network server and connect it through a compatible LoRaWAN gateway for remote data collection.
